RS5C372A/B
46

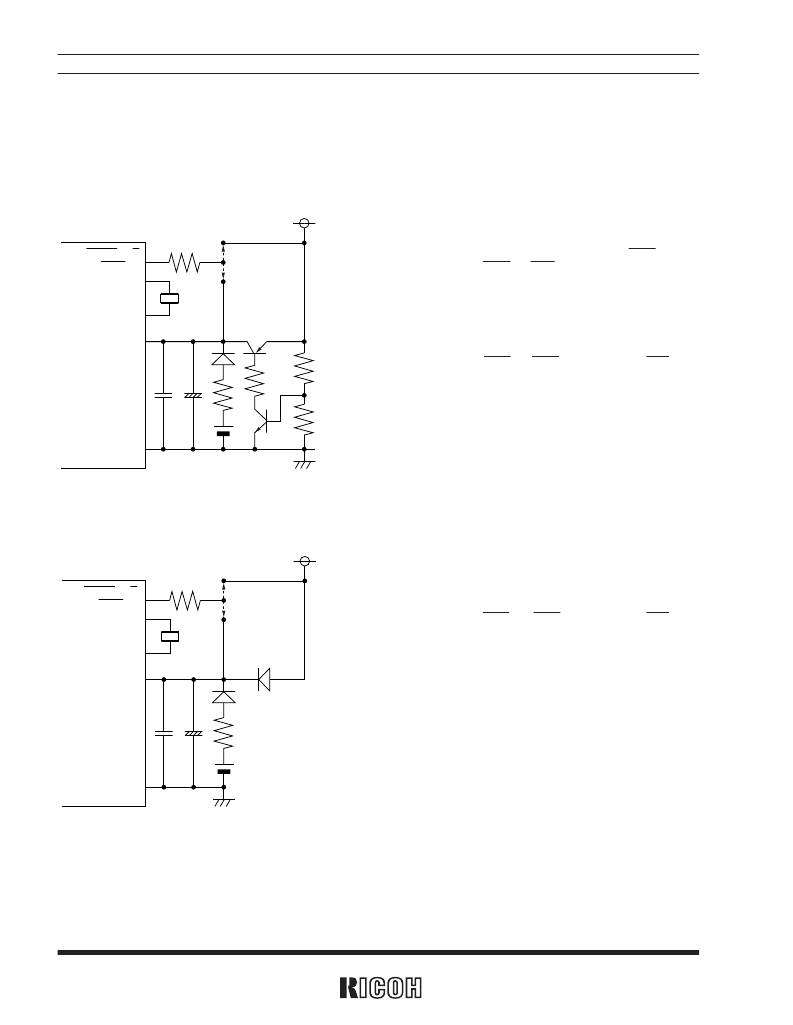

5. Typical Applications
5.1 Examples of Circuits
Example 1
RS5C372A/B
32.768kHz
or 32.000kHz
A
B
OSCIN
OSCOUT
VDD
VSS
INTRA or B
(INTR)
System power supply
*
3
*
2
*
1
*
1) Mount the high-and low-frequency by-pass capaci-
tors in parallel and very close to the RS5C372A/B.
*
2) Connect the pull-up resistor of the INTRA pin or the
INTRB pin (INTR) to two different positions depend-
ing on whether the resistor is in use during battery
back-up:
(I) When not in use during battery back-up
..........Position A in the left figure
(II) When in use during battery back-up
..........Position B in the left figure
*
3) INTRA and INTRB for the RS5C372A, INTR for the
RS5C372B.
Example 2
RS5C372A/B
A
B
32.768kHz
or 32.000kHz
OSCIN
OSCOUT
VDD
VSS
INTRA or B
(INTR)
System power supply
*
2
*
1) Connection in the example shown left may not affect
the RS5C372A/B except the 32KOUT of the
RS5C372B since it is designed to be operational
even when the pin voltage exceeds V
DD
.
*
2) INTRA and INTRB for the RS5C372A, INTR for the
RS5C372B.
