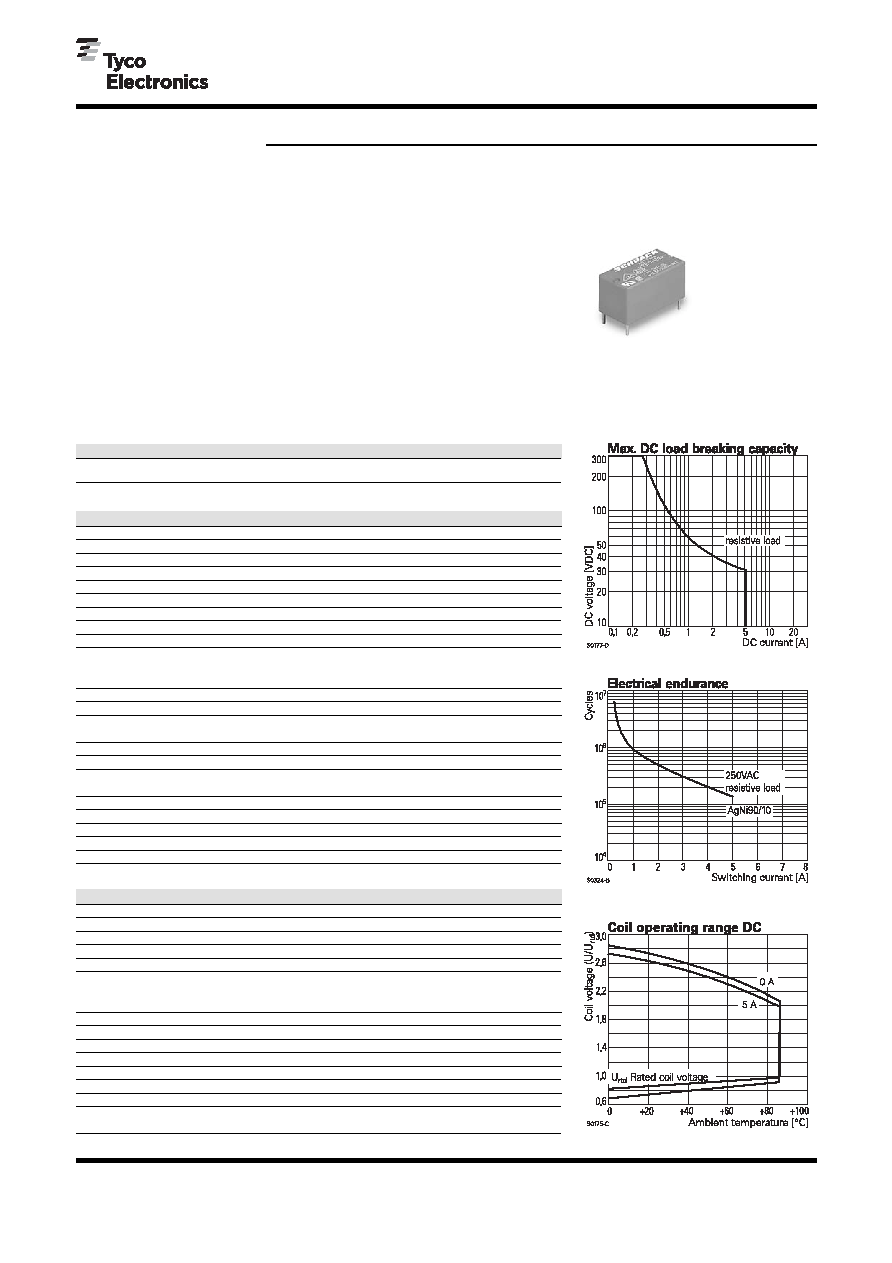

Datasheet
Rev. HG1
Issued 2008/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
1
SCHRACK
Miniature PCB Relay PE
I 1 pole 5 A, 1 CO or 1 NO contact
I Cadmium-free contacts
I Sensitive coil 200 mW
I 4 kV coil-contact
I Ambient temperature 85°C
I Low height 10.0 mm
I Plastic materials according to IEC60335-1 (domestic appliances)
I RoHS compliant (Directive 2002/95/EC) as per product date
code 0352
Applications
Industrial electronics, white goods, measurement and control
F0169-B
Approvals
V REG.-Nr. 6656, Z E214025 (for version with 1 NO in process)
Technical data of approved types on request
Contact data
Contact configuration
1 CO or 1 NO contact
Contact set
single contact
Type of interruption
micro disconnection
Rated current
5 A
Rated voltage / max.switching voltage AC
250/400 VAC
Maximum breaking capacity AC
1250 VA
Contact material
AgNi90/10 / AgSnO2
Mechanical endurance
15x106 cycles
Rated frequency of operation with / without load
6/1200 min-1
Contact ratings
Type
Load
Cycles
PE014
5 A, 250 VAC, resistive, 85°C, 6 cycles/min, 50% df, EN61810-1
1x105
PE014
5 A, 30 VDC,resistive, on NO-contact, 85°C, 6 cycles/min,
50% duty factor, EN61810-1,
1x105
PE014
5 A, 240 VAC resistive load, on NO or NC contact, UL508
1x105
PE034
5 A, 250 VAC, resistive, 85°C, 6 cycles/min, 50% df, EN61810-1
1x105
PE034
5 A, 30 VDC,resistive, 85°C, 6 cycles/min,
50% duty factor, EN61810-1,
1x105
PE034
5 A, 240 VAC resistive load, UL508
1x105
PE013
5 A, 250 VAC resistive, 85°C, 6 cycles/min, 50% df, EN61810-1
3x104
PE013
5 A, 250 VAC resistive, 85°C, N/O tested, 50% df, EN61810-1
5x104
PE013
5 A, 240 VAC resistive load, CO tested, UL508
3x104
PE013
5 A, 240 VAC resistive load, NO tested, UL508
5x104
Coil data
Rated coil voltage range DC coil
5...48 VDC
Coil power DC coil
typ. 200 mW
Operative range
2
Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
resistance
power
VDC
Ohm
mW
003
3
2.25
0.3
45+10%
200
005
5
3.8
0.5
125+10%
200
006
6
4.5
0.6
172+10%
209
009
9
6.75
0.9
405+10%
200
012
12
9.0
1.2
685+10%
210
024
24
18.0
2.4
2725+10%
211
048
48
36.0
4.8
10970+10%
210
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
