參數資料
型號： 0-1462035-4
元件分類： 射頻繼電器
英文描述： RF RELAY, DPDT, MOMENTARY, 0.05A (COIL), 6VDC (COIL), 300mW (COIL), 2A (CONTACT), 30VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT
封裝： ROHS COMPLIANT
文件頁數： 5/11頁
文件大小： 688K
代理商： 0-1462035-4
FT2 THT
FU2 SMT long terminals
FU2 SMT short terminals
mm
inch
mm
inch
mm
inch
L
15 ± 0.05
0.590 ± 0.002 15 ± 0.15
0.590 ± 0.002 15 ± 0.05
0.590 ± 0.002
W
7.5 ± 0.05
0.295 ± 0.002 7.5 ± 0.05
0.295 ± 0.002 7.6 ± 0.05
0.296 ± 0.002
H
9.6 ± 0.03
0.377 ± 0.001 10 + 0.15
0.393 + 0.006 10 + 0.15
0.393 + 0.006
T
3.3 ± 0.3
0.129 ± 0.011 N/A
N/A
T1 N/A
N/A
9.2 ± 0.2
0.362 ± 0.008 7.5 ± 0.2
0.295 ± 0.008
T2 5.08
0.200
5.08
0.200
5.08
0.200
Tw 0.5
0.020
0.5
0.020
0.5
0.020
S
0.35 ± 0.03 0.013 ± 0.001 N/A
N/A

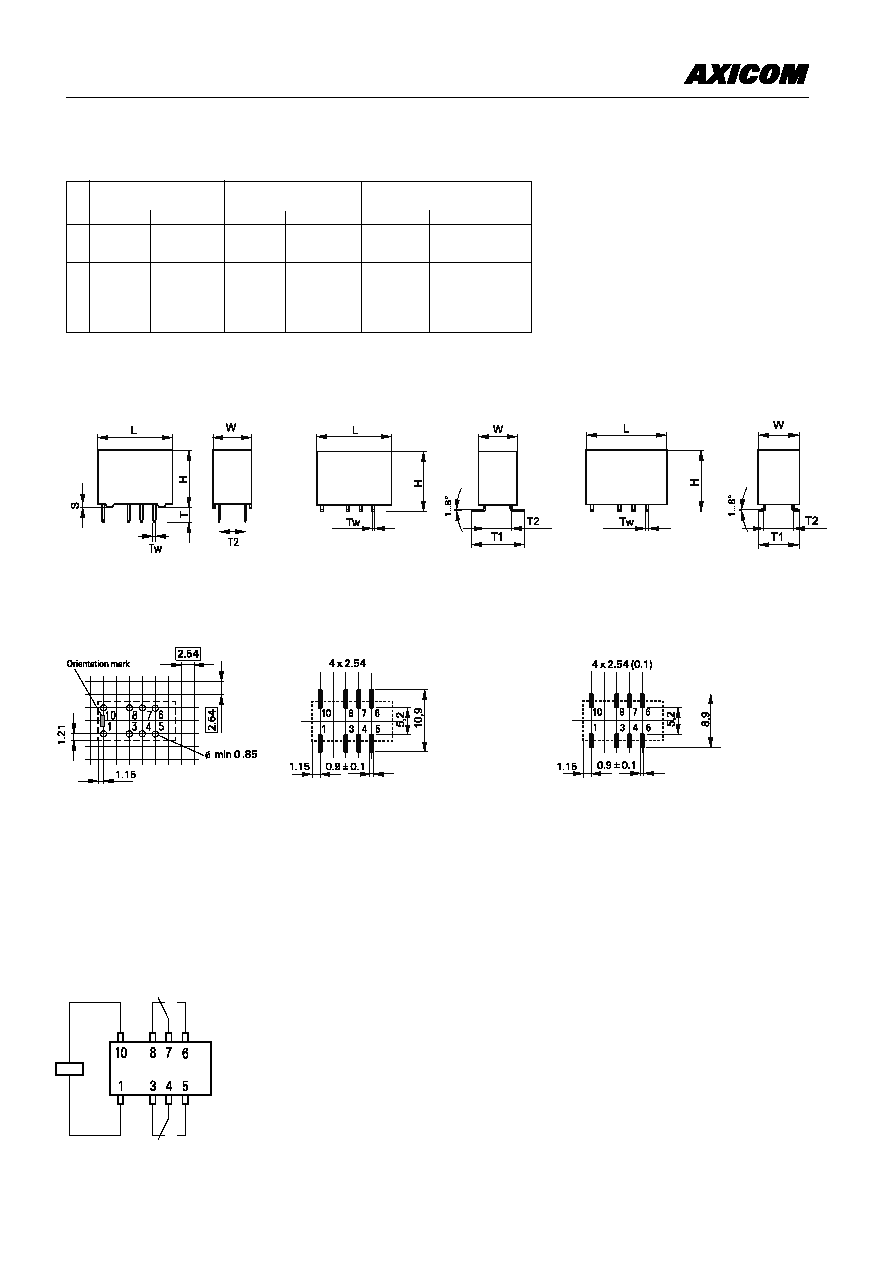

FT2 / FU2 Relay
Dimensions
FT2: THT Version
Basic grid 2.54 mm
Long terminals (W)
FU2: SMT Version
Short terminals (N)
Long terminals
Short terminals
Terminal assignment
Relay - top view
non-latching 1 coil
release condition
Mounting hole layout
View onto the component side of the PCB
Solder pad layout
View onto the component side of the PCB
Page 3 (11)
108-98004 Rev. C
