參數資料
型號： 0002092101
廠商： MOLEX INC
元件分類： 終端
英文描述： BRASS, TIN (20) FINISH, WIRE TERMINAL
封裝： HALOGEN FREE AND ROHS COMPLIANT
文件頁數： 1/2頁
文件大?。?/td> 35K
代理商： 0002092101

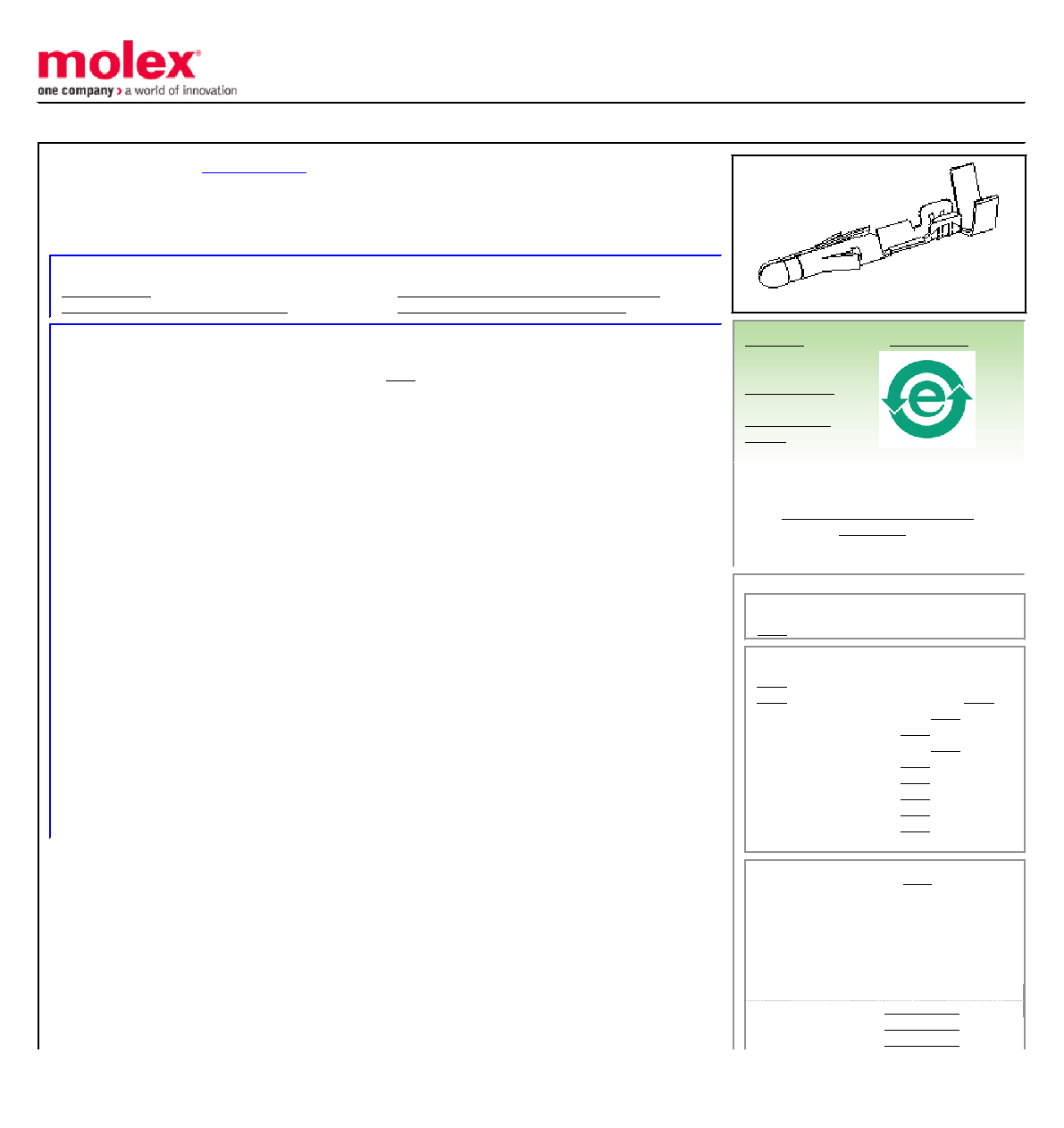

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190,
Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel
Documents:
General
Product Family
Crimp Terminals
Series
Overview
Standard .093"
Product Name
Standard .093"
Physical
Durability (mating cycles max)
25
Gender
Male
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Packaging Type
Reel
Plating min: Mating (in)
20
Plating min: Mating (m)
0.50
Plating min: Termination (in)
20
Plating min: Termination (m)
0.50
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
1.65-4.06mm (.065-.160")
Wire Size AWG
14
Wire Size AWG
16
Wire Size AWG
18
Wire Size AWG
20
Wire Size mm
N/A
Material Info
Old Part Number
1190-(P901)
Reference - Drawing Numbers
Product Specification
PS-02-09
Product Specification
PS-43660-9999
Sales Drawing
SD-1190-*
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
1190 Series
Use With
1619 Plug or Receptacle Housing,
1545 Plug or Receptacle Housing, 1396
Plug or Receptacle Housing, 1490 Plug
or Receptacle Housing, 2629 Plug or
Receptacle Crimp Housings, 1261 Plug
or Receptacle Housing, 1292 Plug
or Receptacle Housing, 1360 Plug
or Receptacle Housing, 1375 Plug
or Receptacle Housing, 3191 Plug
or Receptacle Housing, 2163 Plug or
Receptacle Housings
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Terminator Die
Insertion Tool
Extraction Tool
相關PDF資料
PDF描述
0002092105 BRASS, TIN (100) FINISH, WIRE TERMINAL
0002092133 BRASS, TIN (100) FINISH, PCB TERMINAL
0002092143 BRASS, TIN (20) FINISH, WIRE TERMINAL
0002092170 BRASS, TIN (20) FINISH, WIRE TERMINAL
0002095100 BRASS, NICKEL (30) FINISH, WIRE TERMINAL
相關代理商/技術參數
參數描述
0002092103 功能描述:CONN TERM MALE 14-20AWG TIN RoHS:是 類別:連接器，互連式 >> 觸點 - 多用途 系列:1190 RoHS指令信息:170360-1 Statement of Compliance 3D 型號:170360-1.pdf 標準包裝:500 系列:迷你通用 MATE-N-LOK 類型:- 引腳或插口:引腳 觸點終端:壓接 線規:18-22 AWG 材質:黃銅 鍍層:錫 鍍層 - 厚度:- 包裝:剪切帶 (CT) 配用:172342-1-ND - CONN PLUG 15POS MINI-U MNL NATA106198-ND - CONN PLUG 3POS MINI-U MNL NAT172334-1-ND - CONN CAP 15PS MINI-U-MNL NAT172332-1-ND - CONN CAP 9POS MINI-U-MNL NAT1-172344-6-ND - CONN CAP 3POS MINI-U-MNL BLUE1-172344-5-ND - CONN CAP 3POS MINI-U-MNL GREEN1-172344-2-ND - CONN CAP 3POS MINI-U-MNL RED1-172343-6-ND - CONN CAP 2POS MINI-U-MNL BLUE1-172343-5-ND - CONN CAP 2POS MINI-U-MNL GREEN1-172343-2-ND - CONN CAP 2POS MINI-U-MNL RED更多... 相關產品:A25695-ND - EXTRACTION TOOLA1444-ND - TOOL INSERTIONF UNI-MATE-II 其它名稱:A97686CT
0002092105 功能描述:CONN TERM CRIMP AWG16-18 PCB RoHS:是 類別:連接器，互連式 >> 端子 - 導線至電路板 系列:4706 產品變化通告:16-02-00xx Obsolescence 01/Oct/2009 標準包裝:6,000 系列:4811 端子類型:通孔板式，鎖定 孔直徑:0.051"（1.30mm） 絕緣體直徑:0.100"（2.54mm） 長度 - 總體:0.317"（8.05mm） 線規:22-26 AWG 觸點材料:黃銅 觸點表面涂層:錫 包裝:帶卷 (TR) 相關產品:0638925000-ND - MINI MAC APPLICATOR 其它名稱:0016-02-00370016-02-0037-C00160200370016020037-C16-02-0037-C1602003716020037-C
0002092111 功能描述:CONN MALE TERM TIN 14-18AWG RoHS:是 類別:連接器，互連式 >> 矩形 - 觸點 系列:7239 標準包裝:90,000 系列:* 其它名稱:035021-1301350211-1301350211301
0002092116 制造商:Molex 功能描述:Contact PIN Crimp ST Cable Mount Reel 制造商:Molex 功能描述:CONN CONT M 1 POS CRMP ST CBL MNT - Tape and Reel
0002092117 功能描述:CONN MALE TERM TIN 18-22AWG RoHS:是 類別:連接器，互連式 >> 矩形 - 觸點 系列:1380 標準包裝:90,000 系列:* 其它名稱:035021-1301350211-1301350211301
