參數資料
| 型號： | 0039000022 |
| 廠商： | MOLEX INC |
| 元件分類： | 終端 |
| 英文描述： | PHOSPHOR BRONZE, TIN (36) FINISH, WIRE TERMINAL |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大?。?/td> | 33K |
| 代理商： | 0039000022 |

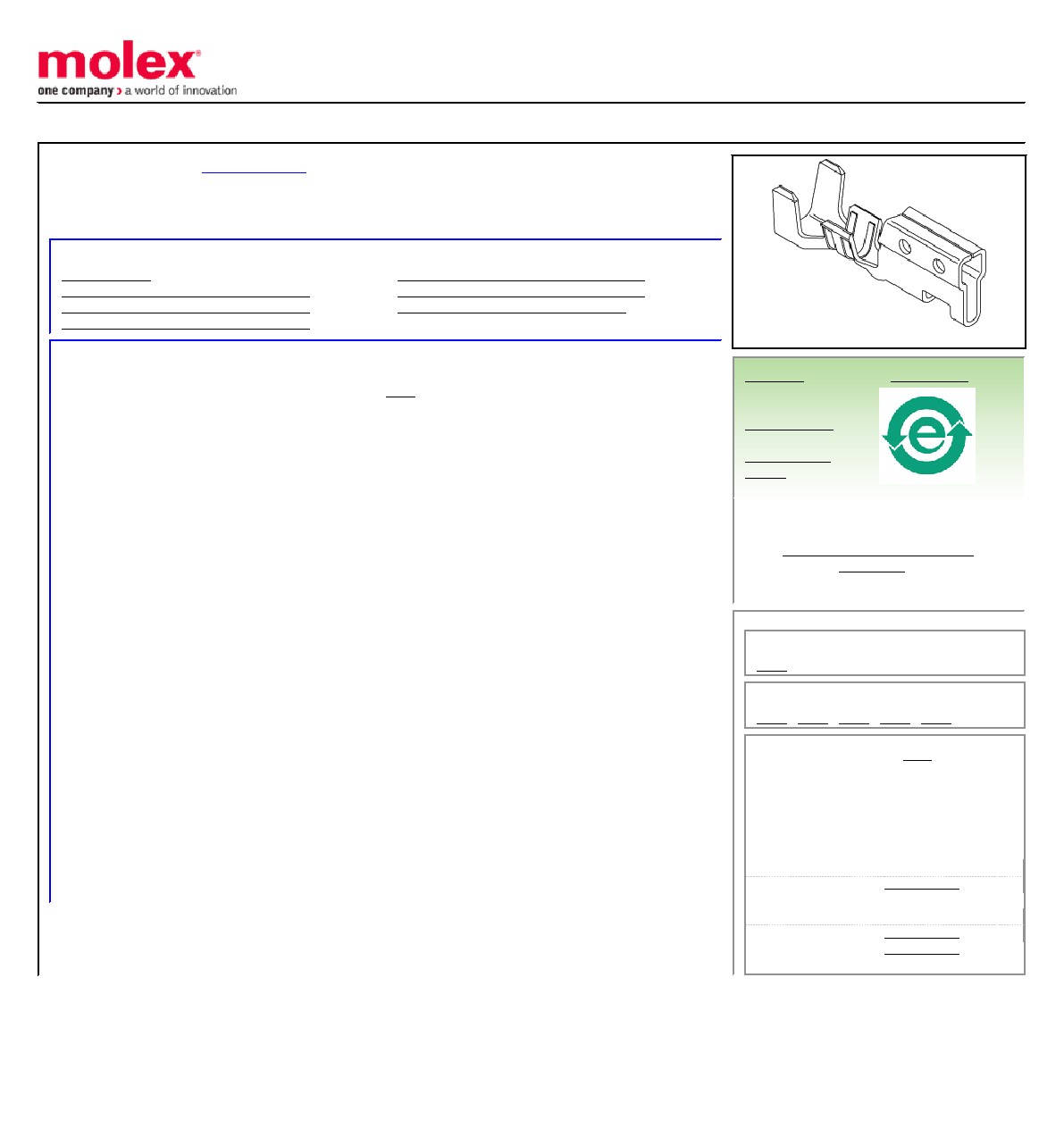

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
SPOX Crimp Terminal 5194, 18-24 AWG, Phosphor Bronze, Bag
Documents:
General
Product Family
Crimp Terminals
Series
Overview
SPOX™ BMI
Product Name
SPOX
Physical
Gender
Female
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Packaging Type
Bag
Plating min: Mating (in)
36
Plating min: Mating (m)
0.90
Plating min: Termination (in)
36
Plating min: Termination (m)
0.90
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
1.30-3.20mm (.051-.126")
Wire Size AWG
18
Wire Size AWG
20
Wire Size AWG
22
Wire Size AWG
24
Wire Size mm
N/A
Material Info
Old Part Number
5194PBTL
Reference - Drawing Numbers
Product Specification
PS-5195-004
Product Specification
PS-5195-005
Product Specification
PS-5195-006
Product Specification
PS-5195-007
Product Specification
PS-5197-005
Product Specification
RPS-5195-001
Sales Drawing
SD-5194-001
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5194 Series
Use With
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
Japan
Description
Product #
Hand Extraction Tool 0011260100
Hand Crimp Tool
JHTR5904
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
