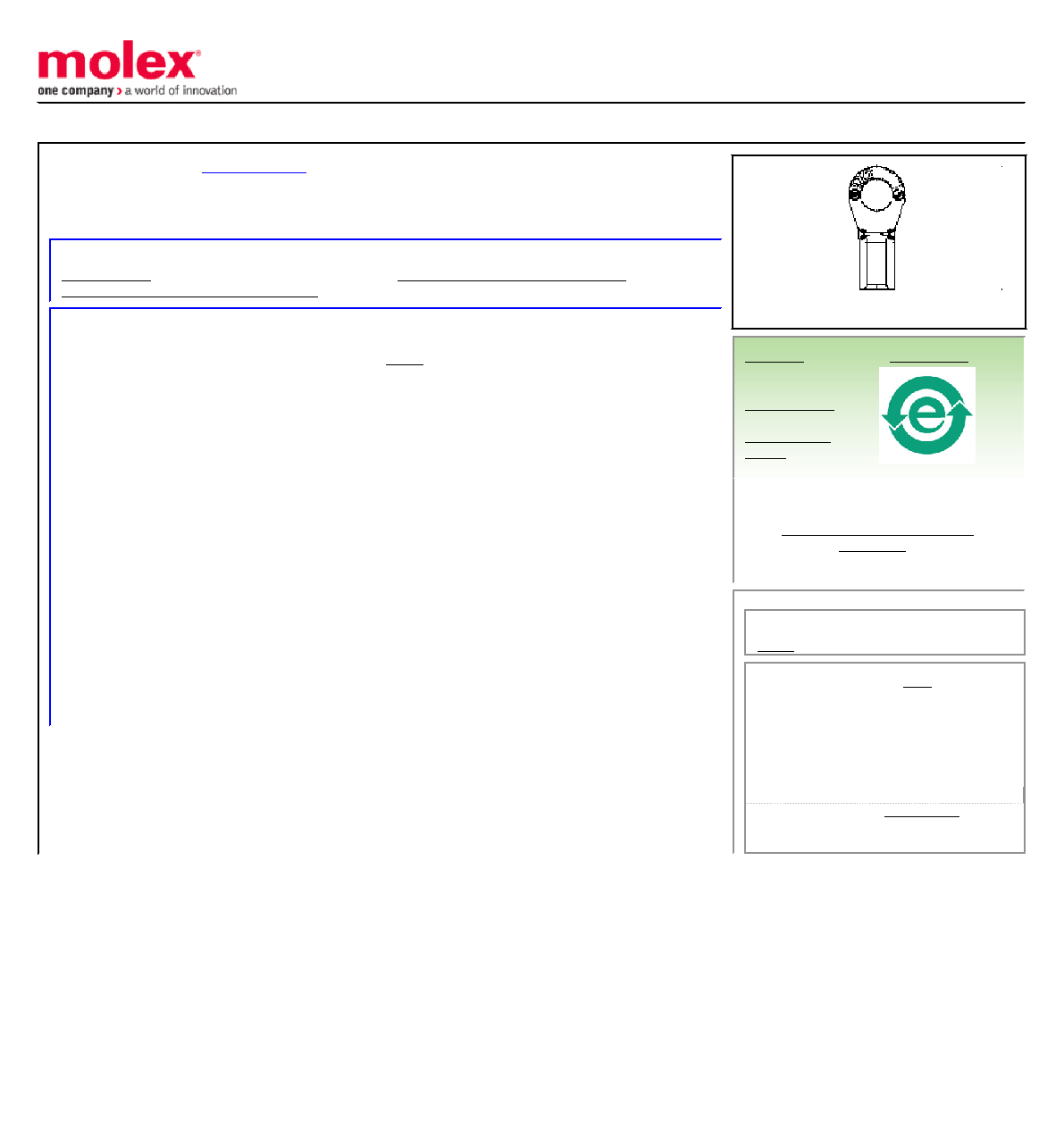

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
Ring Tongue Terminal for 2 AWG, Closed Uninsulated Brazed Barrel, Stud Size
1/2" (M12), Oxygen-Free Copper, Length 42.00mm (1.654")
Documents:
General
Product Family
Ring and Spade Terminals
Series
Mil-Spec
N/A
Product Name
R (Ring)
Type
Ring
Physical
Barrel Type
Closed - Brazed
Insulation
None
Material - Plating Mating
Tin
Packaging Type
Bag
Plating min: Mating (in)
40
Plating min: Mating (m)
1
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Stud Size
1/2" (M12)
Termination Interface: Style
Crimp or Compression
Wire Size AWG
2
Wire Size mm
26.66 - 42.42
Material Info
Reference - Drawing Numbers
Product Specification
PS-50555-001
Sales Drawing
SD-50558-001
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
50558 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Battery Type Hand
Crimper For JIS
Terminal
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
