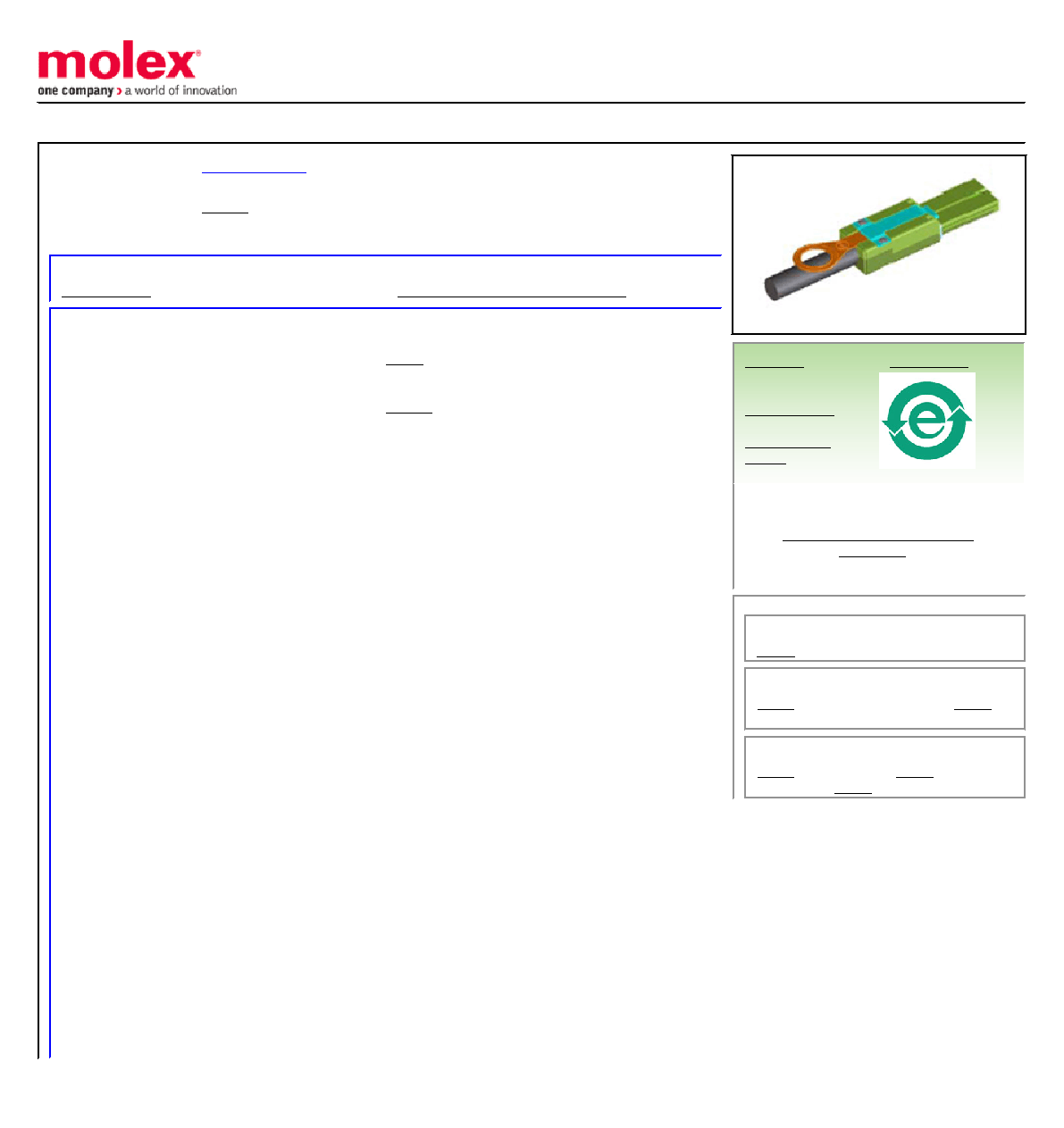

This document was generated on 12/11/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
External iPass Mini Multi-Lane SAS-to-4X LaneLink Latching Cable Assembly, 26
Circuits, 24 AWG, 15.0m (49.21' ) Length, Key 2, 7
Documents:
General
Product Family
Cable Assemblies
Series
Comments
CX4 to LaneLink
Connector to Connector
4X Plug to 4X Plug
Overview
Product Name
4X
Product Name
iPass
Product Name
LaneLink
Product Name
Mini Multi-Lane
Product Name
Multi-Lane
Physical
Cable Length
15.0m (49.21' )
Circuits (Loaded)
26
Color - Resin
Black
Gender
Plug
Lock to Mating Part
Yes
Material - Metal
Phosphor Bronze
Material - Metal
Stainless Steel
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Material - Resin
PVC
Packaging Type
Bag
Pitch - Mating Interface (in)
0.031 In
Pitch - Mating Interface (mm)
0.80 mm
Plating min: Mating (in)
4
Plating min: Mating (m)
0.1
Plating min: Termination (in)
120
Plating min: Termination (m)
3
Single Ended
No
Termination Interface: Style
Surface Mount
Waterproof / Dustproof
Yes
Wire Insulation Diameter
N/A
Wire Size AWG
24
Wire/Cable Type
Parallel Pair
Electrical
Impedance
100 ohms
Shield Type
AL Foil
Shielded
Yes
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-74547-700
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
74547 Series
Mates With
75586 iPass SMT Receptacle. 74548 EMI
Housing Assembly
Use With
74735 X2 Transceiver. 74739 XPAK
Transceiver. 74548 Guide Rail
