參數資料
| 型號： | 1.5SMC8.2AT3 |
| 廠商： | ON SEMICONDUCTOR |
| 元件分類： | 參考電壓二極管 |
| 英文描述： | 1500 Watt Peak Power Zener Transient Voltage Suppressors(1500W 峰值功率齊納抗雷管(TVS)) |
| 中文描述： | 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE |
| 封裝： | PLASTIC, CASE 403-03, SMC, 2 PIN |
| 文件頁數： | 1/7頁 |
| 文件大?。?/td> | 73K |
| 代理商： | 1.5SMC8.2AT3 |

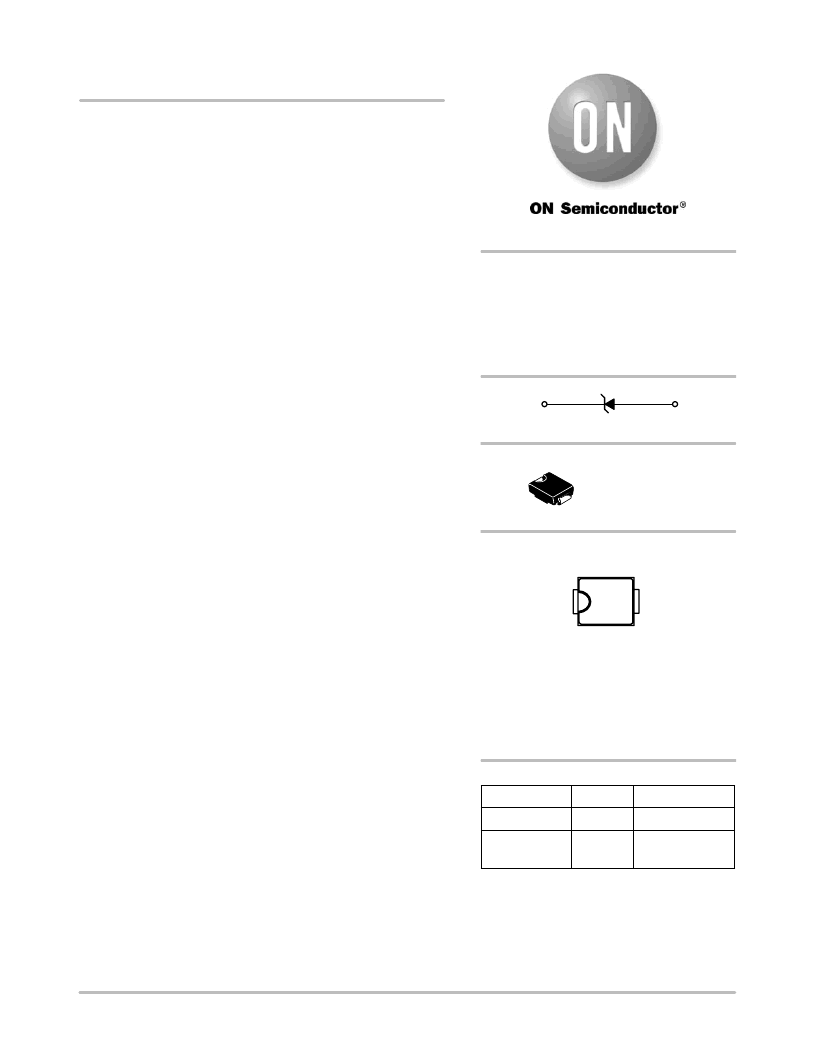

Semiconductor Components Industries, LLC, 2007
February, 2007 Rev. 7
1
Publication Order Number:
1.5SMC6.8AT3/D
1.5SMC6.8AT3 Series
1500 Watt Peak Power
Zener Transient Voltage
Suppressors
Unidirectional*
The SMC series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMC series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetic
package and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical
equipment, business machines, power supplies and many other
industrial/consumer applications.
Specification Features
Working Peak Reverse Voltage Range 5.8 to 77.8 V
Standard Zener Breakdown Voltage Range 6.8 to 91 V
Peak Power 1500 W @ 1.0 ms
ESD Rating of Class 3 (>16 kV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5.0 A Above 10 V
UL 497B for Isolated Loop Circuit Protection
Maximum Temperature Coefficient Specified
Response Time is Typically < 1.0 ns
PbFree Packages are Available
Mechanical Characteristics
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260
°
C for 10 Seconds
LEADS:
Modified LBend providing more contact area to bond pads
POLARITY:
Cathode indicated by molded polarity notch
MOUNTING POSITION:
Any
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
5.8 78 VOLTS
1500 WATT PEAK POWER
Device
*
Package
Shipping
ORDERING INFORMATION
1.5SMCxxxAT3
SMC
2500/Tape & Reel
SMC
CASE 403
PLASTIC
Cathode
Anode
MARKING DIAGRAM
**Bidirectional devices will not be available in this
series.
http://onsemi.com
Individual devices are listed on page 3 of this data sheet.
*The “T3” suffix refers to a 13 inch reel.
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
1.5SMCxxxAT3G
SMC
(PbFree)
2500/Tape & Reel
xxxA
= Specific Device Code
(See Table on Page 3)
= Assembly Location
= Year
= Work Week
= PbFree Package
(Note: Microdot may be in either location)
A
Y
WW
AYWW
xxxA
