參數資料
| 型號： | 100301SCX |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 通用總線功能 |
| 英文描述： | Triple 5-input OR/NOR Gate |
| 中文描述： | 100K SERIES, TRIPLE 5-INPUT OR/NOR GATE, PDSO24 |
| 封裝： | 0.300 INCH, MS-013, SOIC-24 |
| 文件頁數： | 4/6頁 |
| 文件大?。?/td> | 105K |
| 代理商： | 100301SCX |
AC Electrical Characteristics
(Continued)
Note 10:
Not tested at +25C, +125C, and 55C temperature (design characterization data).
Note 11:
The propagation delay specified is for single output switching. Delays may vary up to 100 ps with multiple outputs switching.

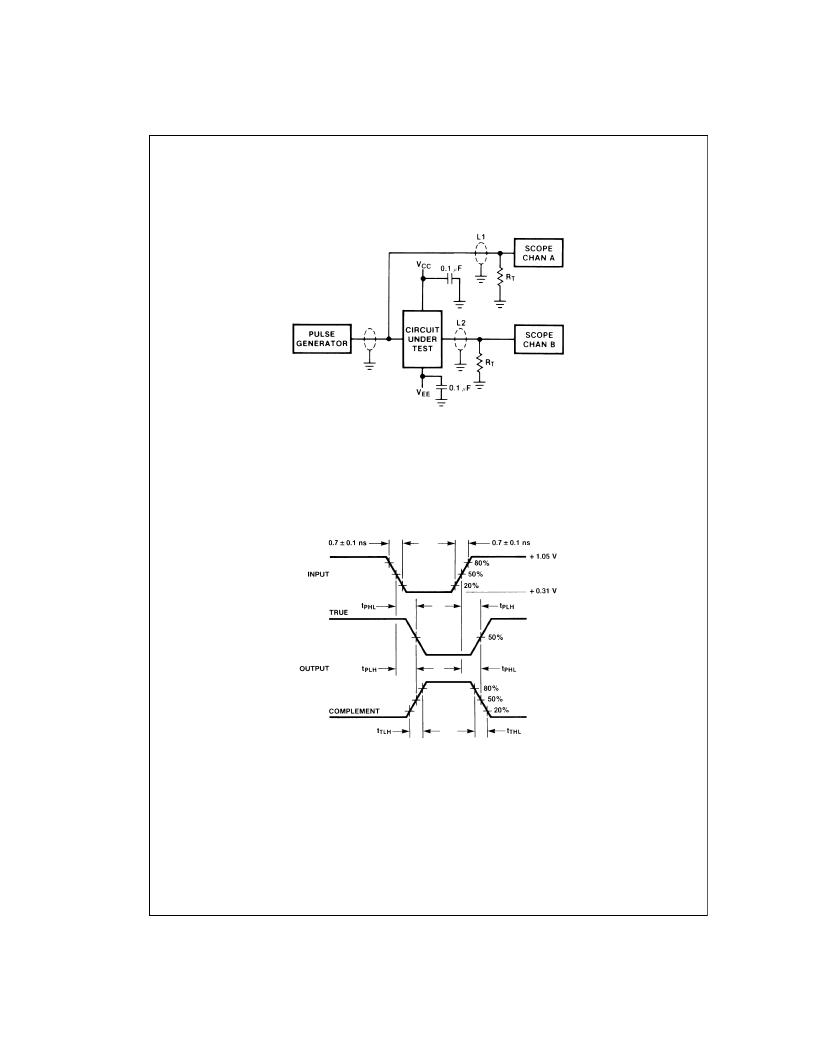

Test Circuitry
Switching Waveforms
DS100302-5
Notes:
V
, V
= +2V, V
= 2.5V
L1 and L2 = equal length 50
impedance lines
R
T
= 50
terminator internal to scope
Decoupling 0.1 μF from GND to V
CC
and V
EE
All unused outputs are loaded with 50
to GND
C
L
= Fixture and stray capacitance
≤
3 pF
FIGURE 1. AC Test Circuit
DS100302-6
FIGURE 2. Propagation Delay and Transition Times
www.national.com
4
