參數資料
| 型號： | 1393203-9 |
| 廠商： | Tyco Electronics |
| 元件分類： | 特殊繼電器 |
| 英文描述： | Mid–Range PC Board Relays |
| 中文描述： | 中等功率PC板繼電器 |
| 文件頁數： | 1/3頁 |
| 文件大小： | 358K |
| 代理商： | 1393203-9 |

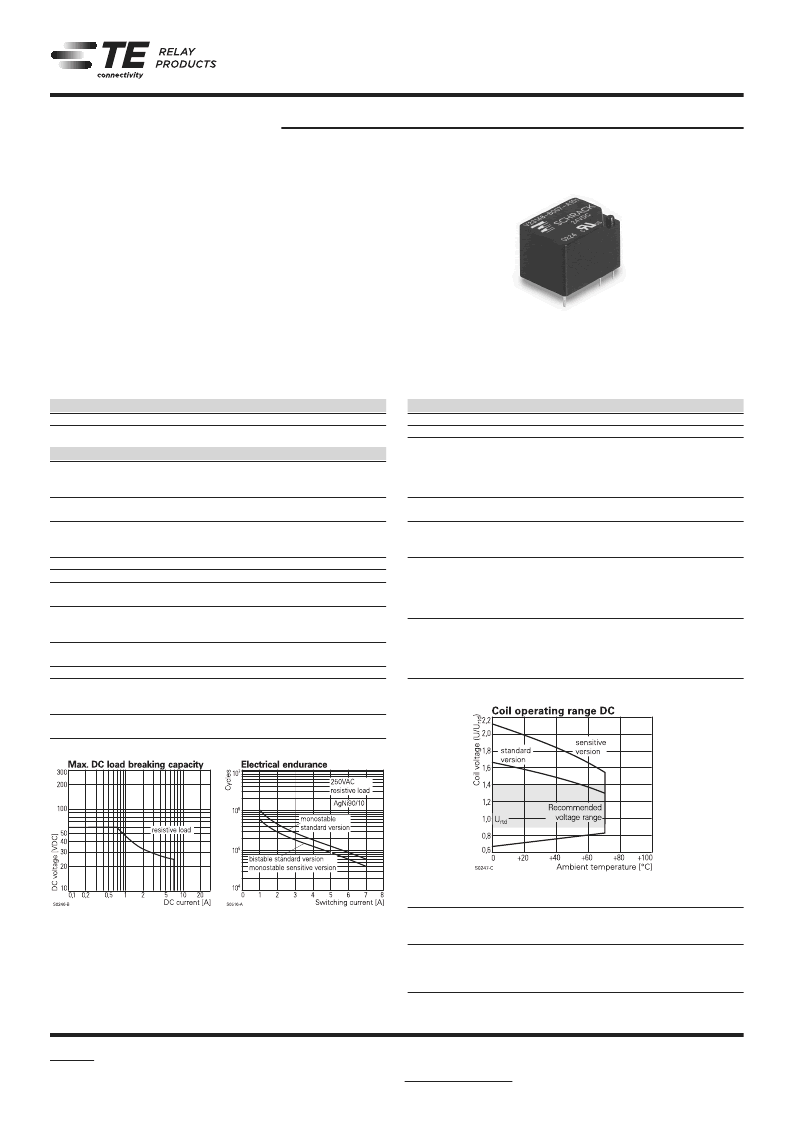

04-2011, Rev. 0411
2011 Tyco Electronics Corporation,a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
SCHRACK
General Purpose Relays
PCB Relays
n
1 pole 7A, mono or bistable
n
1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact
n
Bistable and DC version
n
Wash tight version
n
Version for 10A on request
Typical applications
Heating control, installation, battery powered equipment
Approvals
UL E214024
Technical data of approved types on request
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Limiting making current,
max 4 s, duty factor 10%
Breaking capacity max.
Contact material
Frequency of operation,
with/without load
Operate/release time typ.
Set/reset time typ.
Bounce time typ., form A/form B
Standard Bistable Sensitive
1 form C (CO) or
1 form A (NO) or
1 form B (NC)
250VAC
400VAC
7A
7A
5A
12A
1750VA
AgNi 90/10 AgNi 90/10 AgNi 90/10
12A
1750VA
12A
1250VA
600/18000h
-1
-
5/ 3 ms
2/10ms
5/ 3 ms
-
2/10ms
7/3 ms
-
2/10ms
Contact ratings
Type
UL 508
U/UB
Mechanical endurance, DC coil
Contact
Load
Cycles
C/A/B
(CO/NO/NC) 7A, 250VAC,general purpose, 40°C
6.000
>20x10
6
operations
Coil Data
Coil voltage range
Operative range IEC 61810
Reset voltage min.,
% of rated coil voltage
Reset voltage max.,
% of rated coil voltage
Rated operate power
Standard Bistable Sensitive
6 to 48 VDC 6 to 48 VDC 6 to 48 VDC
2
2
2
-
25%
-
-
- 900 to 1300 mW/20ms -
45%
-
Coil versions, DC coil
Coil
code
Standard coil
003
005
007
008
Sensitive coil
103
105
107
108
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Rated
voltage
VDC
Operate
voltage
VDC
Release
voltage
VDC
0.6
1.2
2.4
4.8
0.6
1.2
2.4
4.8
Coil
Rated coil
power
mW
450
450
450
606
327
327
324
576
resistance
±10%
80
320
1280
3800
110
440
1780
4000
6
12
24
48
4.2
8.4
16.8
33.6
6
12
24
48
4.4
8.8
17.5
35.0
Coil versions, bistable 1 coil
Coil
Rated
code
voltage
VDC
003
6
005
12
007
24
008
48
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Set
voltage
VDC
4.7
9.4
18.7
37.4
Reset
voltage
VDC
1.5
3.0
6.0
12.0
Coil
Rated coil
power
mW
1091
1210
1213
1317
resistance
±10%
33
119
475
1750
Power PCB Relay U/UB
F0153-C
Z
