78

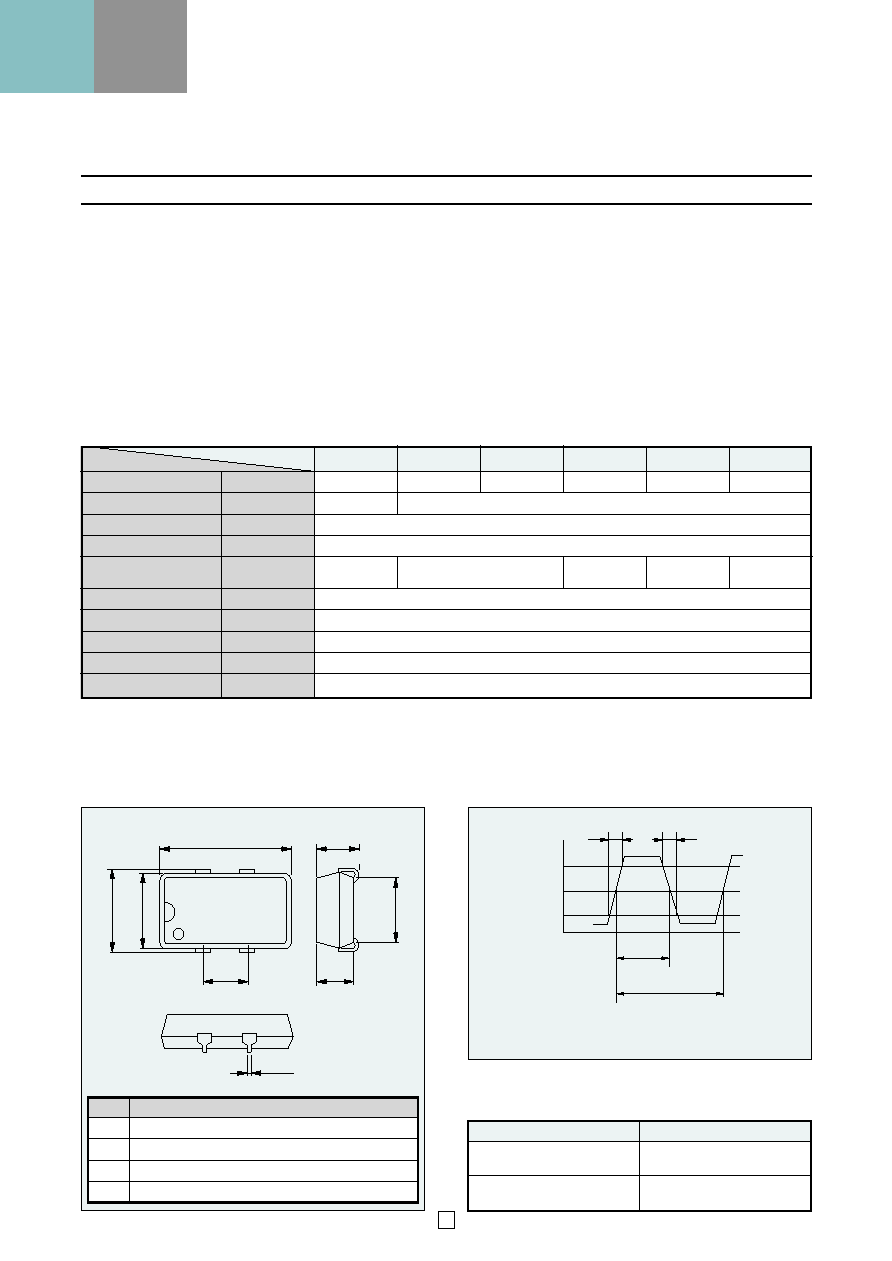

CRYSTAL CLOCK
OSCILLATORS
s Features
8 Satisfying part 15, class B of FCC EMI regulation.
8 Directly drives the C-MOS IC.
8 Compact and light weight : height 4.7mm, volume 0.4j, weight 1.5g.
8 High reliability.
(metal harmetic sealed crystal unit is inhoused)
8 Applicable for reflow automatic mounting processes.
8 Frequency range : 1MHz to 70MHz.
8 Stand-by function for output : Tri-state output.
8 Static electricity proof package : tape & reel.
1620L 1630L SERIES
Frequency Range
(MHz)
Frequency Stability
(
×10–6)
Operating Temp. Range
(°C)
Supply Voltage (VDD)
(V)
Current Consumption
(mA)
+5VDC, 25°C
VOL max/VOH min
(V)
Tr max/Tf max
(ns)
Duty Cycle
(%)
Fanout (gate)
CL (pF)
Stand-by Function
Tri-state
1~26
26~30
30~34
34~42
42~55
55~70
±100
±50, ±100
–20~+70
+5±10%
8 (TYP)
15 (TYP)
18 (TYP)
22 (TYP)
25 (TYP)
15 (max)
20 (max)
25 (max)
30 (max)
35 (max)
0.5/VDD –0.5 IOL=4mA IOH=-4mA
7/7 (0.1VDD~0.9VDD)
45~55 (at +1/2VDD)
15
Yes
Note : Please study carefully regarding pattern layout and set shielding when you design your circuit with this device.
In addition to above listed, 1629L with freq. stability ±50
×10–6 is available. Please contact us if information is needed.
s 1620L 1630L Series Outline
14.00max
#4
#3
9.80max
8.75
#1
#2
5.08
4.10
4.70max
±0.25
7.62
±0.20
0.51
s Output Wave <C-MOS>
s Stand-by Function <Tri-state>
Tr
Tf
VOL
0.1VDD
1/2VDD
t
T
VOH
0.9VDD
Duty Cycle = t/T
×100 [%]
0V
# 1
STAND-BY
# 2
GND
# 3
OUTPUT
# 4
VDD
PIN
Connection
# 1 pin input
# 3 pin output
H level (+3.5 Vmin)
or open
L level (+0.8 Vmax)
Operating
High impedance
s Absolute Maximum Rating
Supply Voltage (VDD) –0.5~+7.0V DC
Storage Temperature Range –55~+125°C
Item
Model
1629L
1631L
1632L
1633L
1634L
1635L
(mm)
