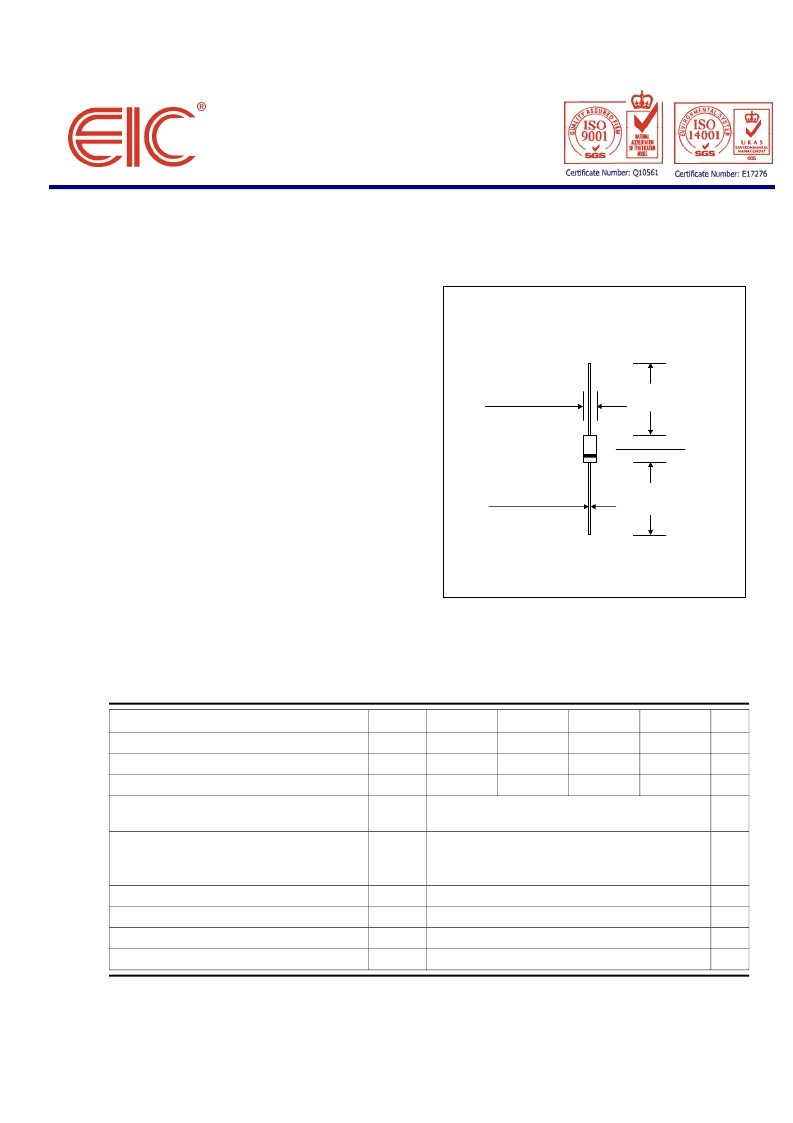

1SR139-100 ~ 1SR139-600
SILICON RECTIFIER DIODES
PRV : 100 - 600 Volts
Io : 1.0 Ampere
FEATURES :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOL
1SR139-100 1SR139-200 1SR139-400 1SR139-600
UNIT
Maximum Repetitive Peak Reverse Voltage
V
RRM
100
200
400
600
V
Maximum RMS Voltage
V
RMS
70
140
280
420
V
Maximum DC Blocking Voltage
V
DC
100
200
400
600
V
Maximum Average Forward Current
0.375"(9.5mm) Lead Length
Maximum Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Forward Voltage at I
F
= 1.0 A
V
F
1.1
V
Maximum DC Reverse Current at V
R
= V
RRM
I
RM
10
μ
A
Junction Temperature Range
T
J
- 65 to + 175
°
C
Storage Temperature Range
T
STG
- 65 to + 175
°
C
Page 1 of 2
Rev. 02 : March 25, 2005
A
A
RATING
I
FSM
I
F(AV)
1.0
40
DO - 41
Dimensions in inches and ( millimeters )
1.00 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
0.205 (5.2)
0.166 (4.2)
1.00 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
