Vishay BCcomponents
Surface Mount, NTC Thermistors
www.vishay.com
For technical questions contact: nlr.europe@vishay.com
Document Number: 29056
42
Revision: 10-Oct-03

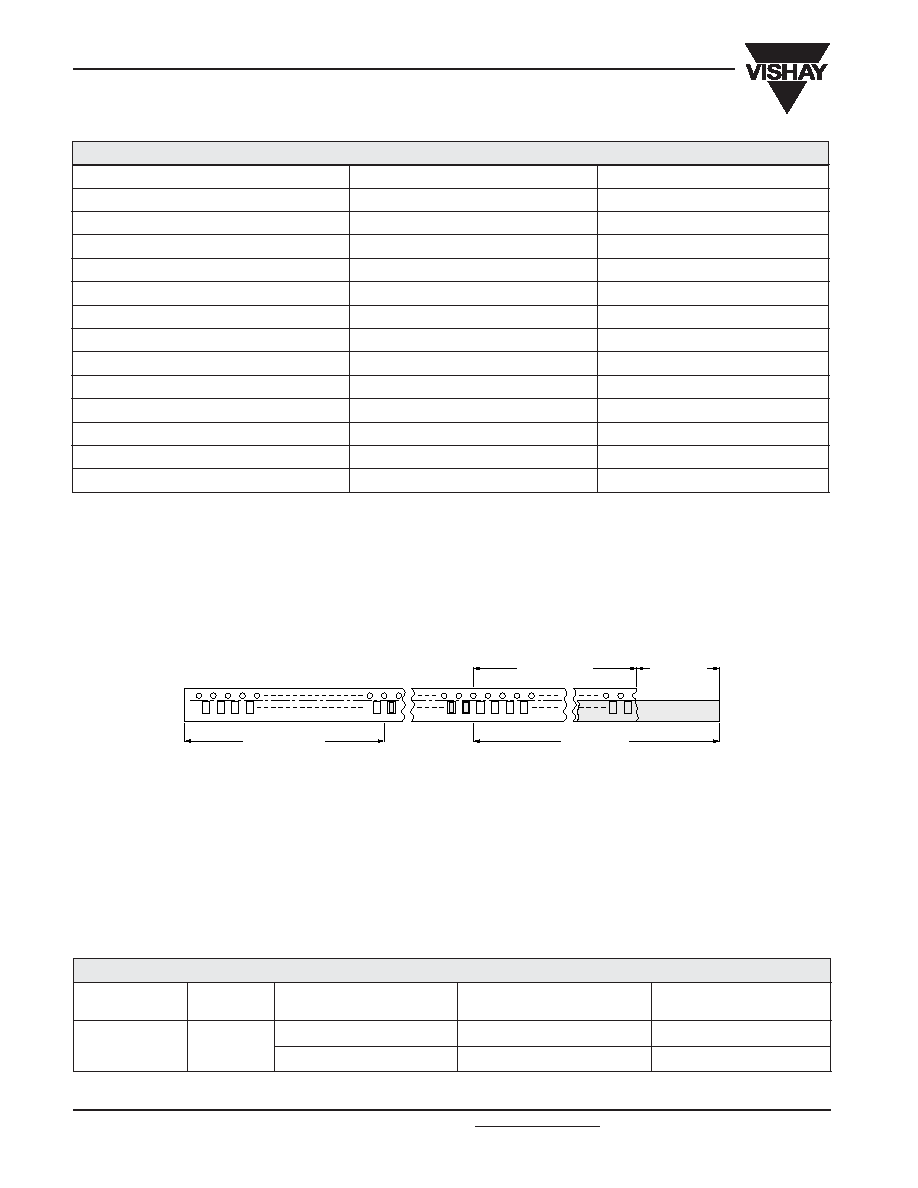

DIMENSIONS OF PAPER TAPE in millimeters
Notes
1. Measured 0.3 mm above base pocket.
2. P0 pitch tolerance over any 10 pitches is ±0.2 mm.
PARAMETER
DIMENSION
TOLERANCE
A0; note 1
1.15
±0.1
B0; note 1
1.9
±0.1
K0
4.1
±0.1
W
8.0
±0.2
E1
1.75
±0.1
F
3.5
±0.05
D0
1.55
±0.05
D1
1.5
+0.1/0.0
P0; note 2
4.0
±0.1
P1
12
±0.1
P2
2.0
±0.05
T tape thickness
1.1
max
T1 cover tape
<0.1
LEADER/TRAILER TAPE SPECIFICATION
TAPING PACKAGE REQUIREMENTS
Component is free and not sticking to top and/or bottom tape.
Component should be easy to remove from carrier tape.
TESTS AND REQUIREMENTS
SOLDERABILITY AND RESISTANCE TO SOLDERING HEAT
IEC 60068-2-58
TEST
METHOD
TEST
PROCEDURE
REQUIREMENTS
6Tc
solderability
2 s at 235 °C
min. 95% of surface wetted
resistance to soldering heat
10 s at 260 °C
R/R < 5%
Leader/trailer tape.
CCB838
empty compartments
with cover tape
(min. 240 mm)
cover tape only
leader ≥400 mm
trailer (min. 160 mm)
trailer end
leader end
