| 型號： | 257G-9.999MHZ-BBE00010 |
| 廠商： | FOX ELECTRONICS |
| 元件分類： | 晶體 |
| 英文描述： | QUARTZ CRYSTAL RESONATOR, 9.999 MHz |
| 封裝： | ROHS COMPLIANT, CERAMIC, SMD, 2 PIN |
| 文件頁數： | 1/2頁 |
| 文件大?。?/td> | 610K |
| 代理商： | 257G-9.999MHZ-BBE00010 |
Discontinued
FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 http://www.foxonline.com
EMEA Tel/Fax: +44 .1767.312632 | Asia Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 | Taiwan Tel: +886.2.22073427 Fax +886.2.22073486
| Japan Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
2007 FOX ELECTRONICS | ISO9001:2000 Certified

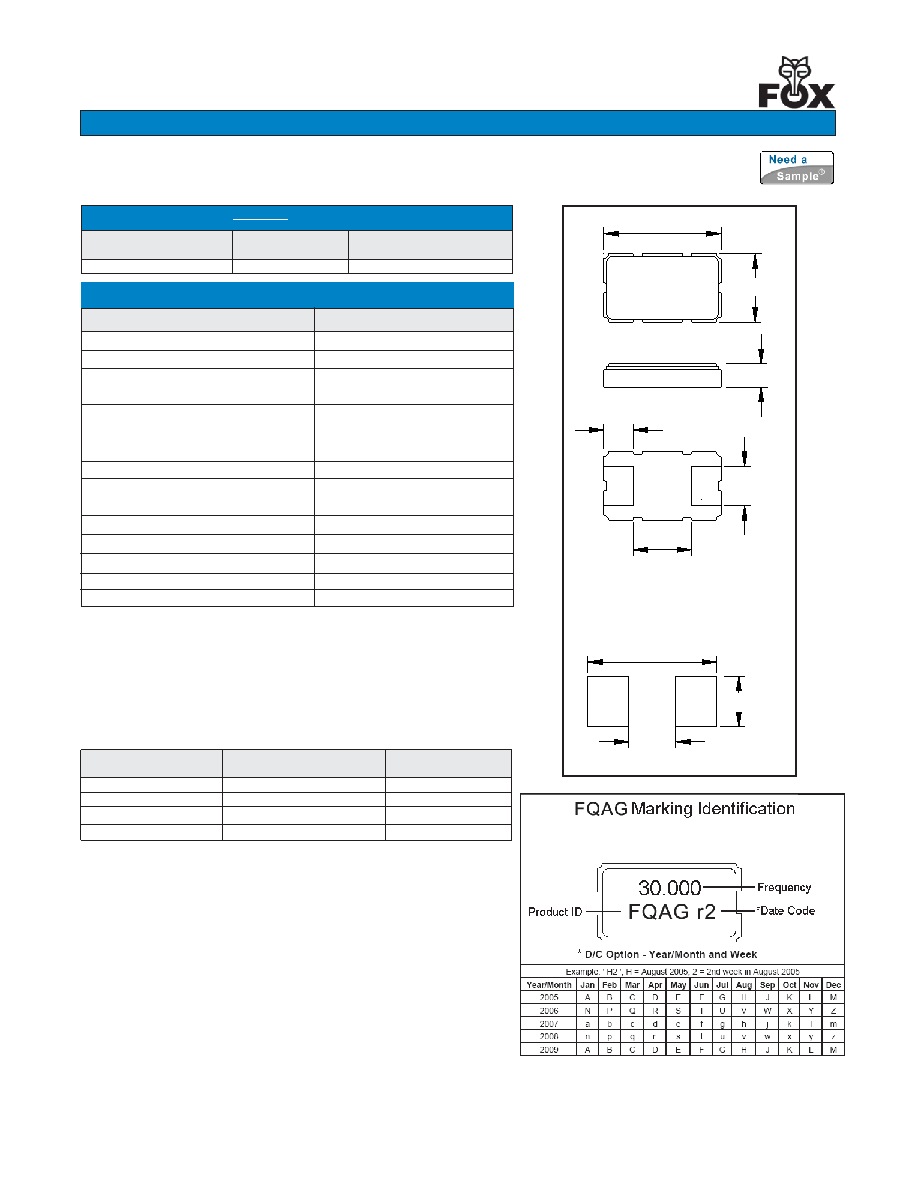

Ceramic SMD Glass Seal Crystal
Rev. 12/5/2007
RoHS Compliant
Model: FQAG Series
Page 1 of 2
1 Other stabilities & operating temperature ranges available.
Note: Dimensional drawing is for reference to critical specifications defined by size measure-
ments. Certain non-critical visual attributes, such as side castellations, refernece pin shape, etc.
may vary.
The above specifiactions, having been carefully prepared and checked, is believed to be ac-
curate at the time of publication: however, no responsibility is assumed by Fox Electronics for
inaccuracies.
8.000 ~ 80.000
FQAG
Model Number
Part Number
257G-Frequency-xxxxx
PART NUMBER Learn More - Internet Required
All dimensions are in millimeters.
Frequency Range (MHz)
8.000 ~ 9.999
10.000 ~ 15.999
16.000 ~ 50.000
40.000 ~ 80.000
Frequency Range
(MHz)
Fundamental
3rd OT
80
60
50
90
Operating Mode
Max ESR
PARAMETERS
Frequency Range
(Fo)
Frequency Tolerance @ 25C
Frequency Stability, ref @ 25C
Over Operating Temp Range
Temperature Range
Operating
(TOPR)
Storage
(TSTG)
Shunt Capacitance
(Co)
Load Capacitance
(CL)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
8.000 ~ 80.000 MHz
±50 PPM 1
10C ~ +70C 1
-40C ~ +90C
5 pF
10 pF ~ Series
(Customer Specified)
0.1 mW
±5 PPM
260C / 10 Seconds
1
Au
STANDARD SPECIFICATIONS1
MAX (unless otherwise noted)
6.0±0.2
Recommended
Solder Pad Layout
3.5±0.2
1.4 M ax
1.5
2.0
3.0
2.6
2.4
6.6
