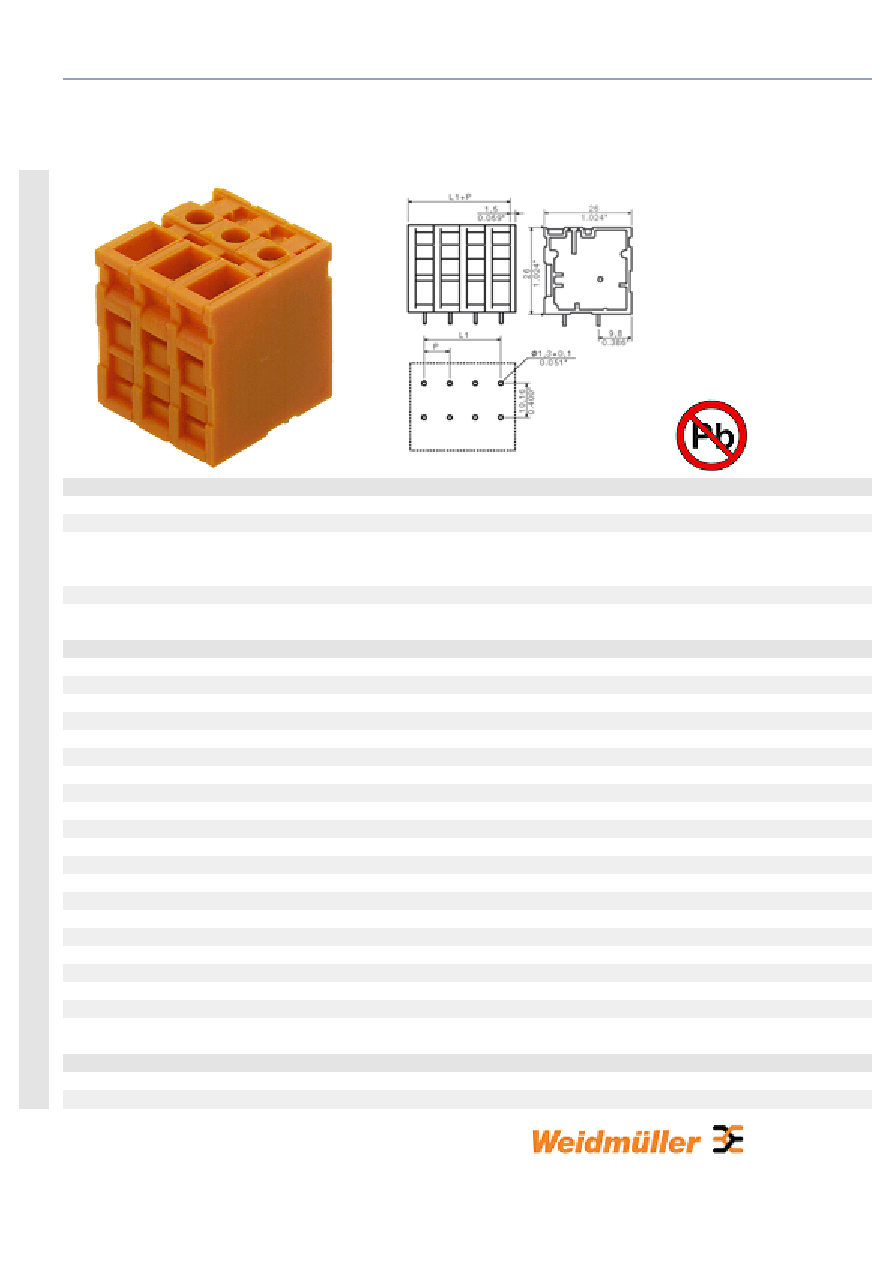

Product catalogue | PCB connection systems | PCB terminals | TOP screw connection | TOP 4GS/7.62 | TOP
4GS/180-7.62
- 1 -
General ordering data
Order No.
0298360000
Part designation
TOP4GS2/180 7.62 OR
Version
PCB terminal, TOP connection, Soldered
connection, Clamping range, max.: 6 mm, Pitch:
7.62 mm, No. of poles: 2, 180°, Box
EAN
4008190171575
Qty.
50 pc(s).
System parameters
Product family
System TOP4GS
Conductor connection system
TOP connection
Fitted to PCB
Soldered connection
Outgoing direction of conductor
180°
Pitch
7.62 mm
Pitch in inch
0.3 inch
No. of poles
2
Fitted by customer
no
No. of rows
1
Solder pin length
3.5 mm
Dia. of fitting hole
1.3 mm
Fitting hole tolerance
+ 0.1 mm
No. of solder pins per pole
2
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Tightening torque, min.
0.5 Nm
Tightening torque, max.
0.6 Nm
Clamping screw
M 3
Stripping length
13 mm
L1 in mm
7.62 mm
L1 in inch
0.3 inch
Material data
Insulating material
PA
Colour
orange
