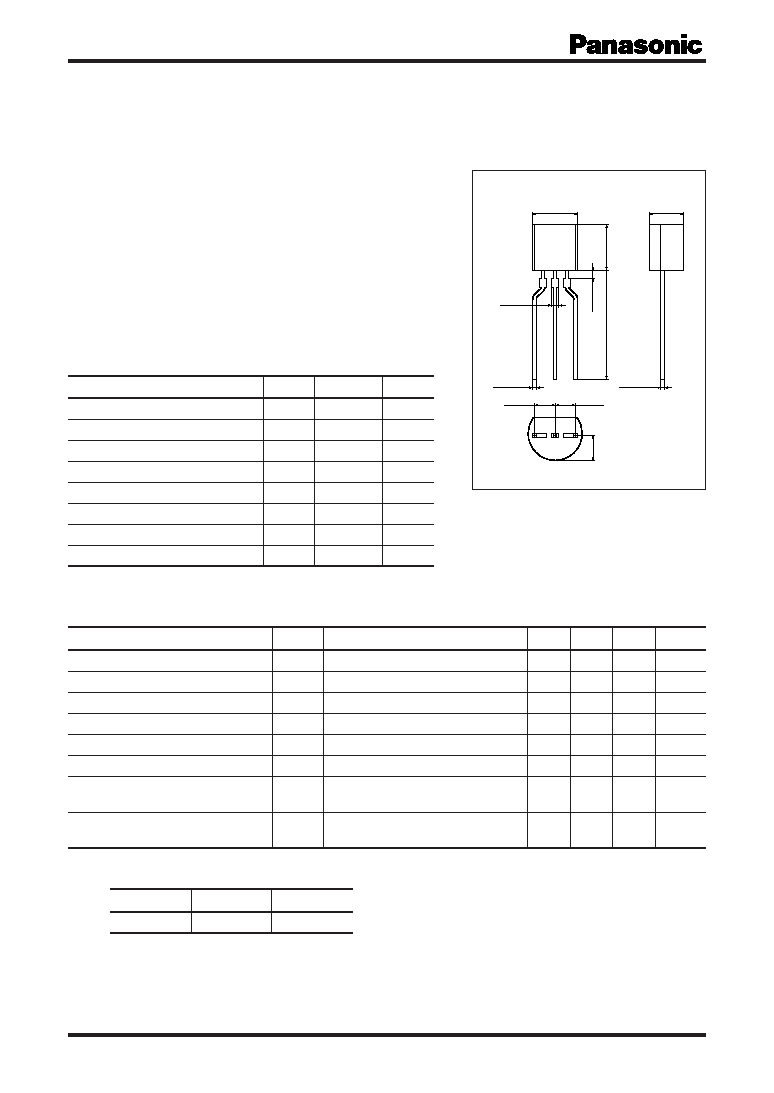

Transistors
1
Publication date: March 2003
SJC00117BED
2SC2631
Silicon NPN epitaxial planar type
For low-frequency high breakdown voltage amplification
Complementary to 2SA1123
■ Features
Satisfactory linearity of forward current transfer ratio h
FE
High collector-emitter voltage (Base open) V
CEO
Small collector output capacitance (Common base, input open cir-
cuited) Cob
■ Absolute Maximum Ratings T
a
= 25°C
Parameter
Symbol
Rating
Unit
Collector-base voltage (Emitter open)
VCBO
150
V
Collector-emitter voltage (Base open)
VCEO
150
V
Emitter-base voltage (Collector open)
VEBO
5V
Collector current
IC
50
mA
Peak collector current
ICP
100
mA
Collector power dissipation
PC
750
mW
Junction temperature
Tj
150
°C
Storage temperature
Tstg
55 to +150
°C
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Collector-emitter voltage (Base open)
VCEO
IC
= 100 A, I
B
= 0
150
V
Emitter-base voltage (Collector open)
VEBO
IE = 10 A, IC = 05
V
Collector-base cutoff current (Emitter open)
ICBO
VCB = 100 V, IE = 01
A
Forward current transfer ratio *
hFE
VCE
= 5 V, I
C
= 10 mA
130
330
Collector-emitter saturation voltage
VCE(sat)
IC = 30 mA, IB = 3 mA
1
V
Transition frequency
fT
VCB = 10 V, IE = 10 mA, f = 200 MHz
160
MHz
Collector output capacitance
Cob
VCB
= 10 V, I
E
= 0, f = 1 MHz
3
pF
(Common base, input open circuited)
Noise voltage
NV
VCE
= 10 V, I
C
= 1 mA, G
V
= 80 dB
150
300
mV
Rg = 100 k, Function = FLAT
■ Electrical Characteristics T
a
= 25°C ± 3°C
5.0±0.2
0.7±0.1
0.45
+0.15
–0.1
2.5
+0.6
–0.2
0.45
+0.15
–0.1
2.5
12 3
+0.6
–0.2
4.0±0.2
5.1
±
0.2
12.9
±
0.5
2.3
±
0.2
0.7
±
0.2
Unit: mm
1: Emitter
2: Collector
3: Base
EIAJ: SC-43A
TO-92-B1 Package
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *: Rank classification
Rank
R
S
hFE
130 to 220
185 to 330
This product complies with the RoHS Directive (EU 2002/95/EC).
Ma
int
en
an
ce
/
Dis
co
nti
nu
ed
Maintenance/Discontinued
includes
following
four
Product
lifecy
cle
stage.
planed
maintenance
type
maintenance
type
planed
discontinued
typed
discontinued
type
Please
visit
following
URL
about
latest
information.
http://panasonic.net/sc/en
