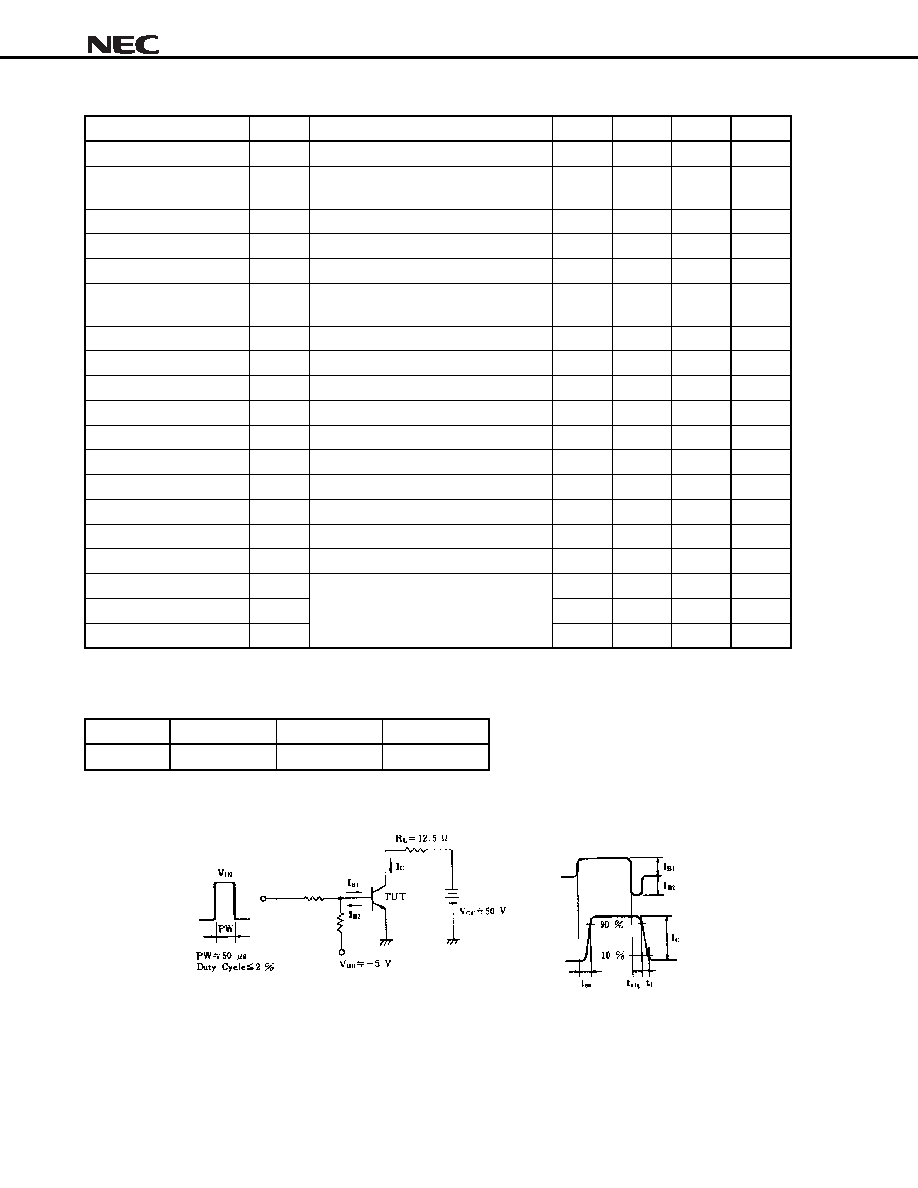

Data Sheet D15596EJ2V0DS
2
2SC4550
ELECTRICAL CHARACTERISTICS (Ta = 25
°°°°C)
Parameter
Symbol
Conditions
MIN.
TYP.
MAX.
Unit
Collector to emitter voltage
VCEO(SUS)
IC = 4.0 A, IB = 0.4 A, L = 1 mH
60
V
Collector to emitter voltage
VCEX(SUS)
IC = 4.0 A, IB1 =
IB2 = 0.4 A,
VBE(OFF) =
1.5 V, L = 180
H, clamped
60
V
Collector cutoff current
ICBO
VCB = 60 V, IE = 0
10
A
Collector cutoff current
ICER
VCE = 60 V, RBE = 50
, Ta = 125°C
1.0
mA
Collector cutoff current
ICEX1
VCE = 60 V, VBE(OFF) =
1.5 V
10
A
Collector cutoff current
ICEX2
VCE = 60 V, VBE(OFF) =
1.5 V,
Ta = 125
°C
1.0
mA
Emitter cutoff current
IEBO
VEB = 5.0 V, IC = 0
10
A
DC current gain
hFE1*VCE = 2.0 V, IC = 0.7 A
100
DC current gain
hFE2*VCE = 2.0 V, IC = 1.5 A
100
200
400
DC current gain
hFE3*VCE = 2.0 V, IC = 4.0 A
60
Collector saturation voltage
VCE(sat)1*IC = 4.0 A, IB = 0.2 A
0.3
V
Collector saturation voltage
VCE(sat)2*IC = 6.0 A, IB = 0.3 A
0.5
V
Base saturation voltage
VBE(sat)1*IC = 4.0 A, IB = 0.2 A
1.2
V
Base saturation voltage
VBE(sat)2*IC = 6.0 A, IB = 0.3 A
1.5
V
Collector capacitance
Cob
VCB = 10 V, IE = 0, f = 1.0 MHz
100
pF
Gain bandwidth product
fT
VCE = 10 V, IC = 1.0 A
150
MHz
Turn-on time
ton
0.1
0.3
s
Storage time
tstg
1.0
1.5
s
Fall time
tf
IC = 4.0 A, RL = 12.5
,
IB1 =
IB2 = 0.2 A, VCC 50 V
Refer to the test circuit.
0.1
0.3
s
* Pulse test PW
≤ 350
s, duty cycle ≤ 2%
hFE CLASSIFICATION
Marking
M
L
K
hFE2
100 to 200
150 to 300
200 to 400
SWITCHING TIME (ton, tstg, tf) TEST CIRCUIT
Base current
waveform
Collector current
waveform
