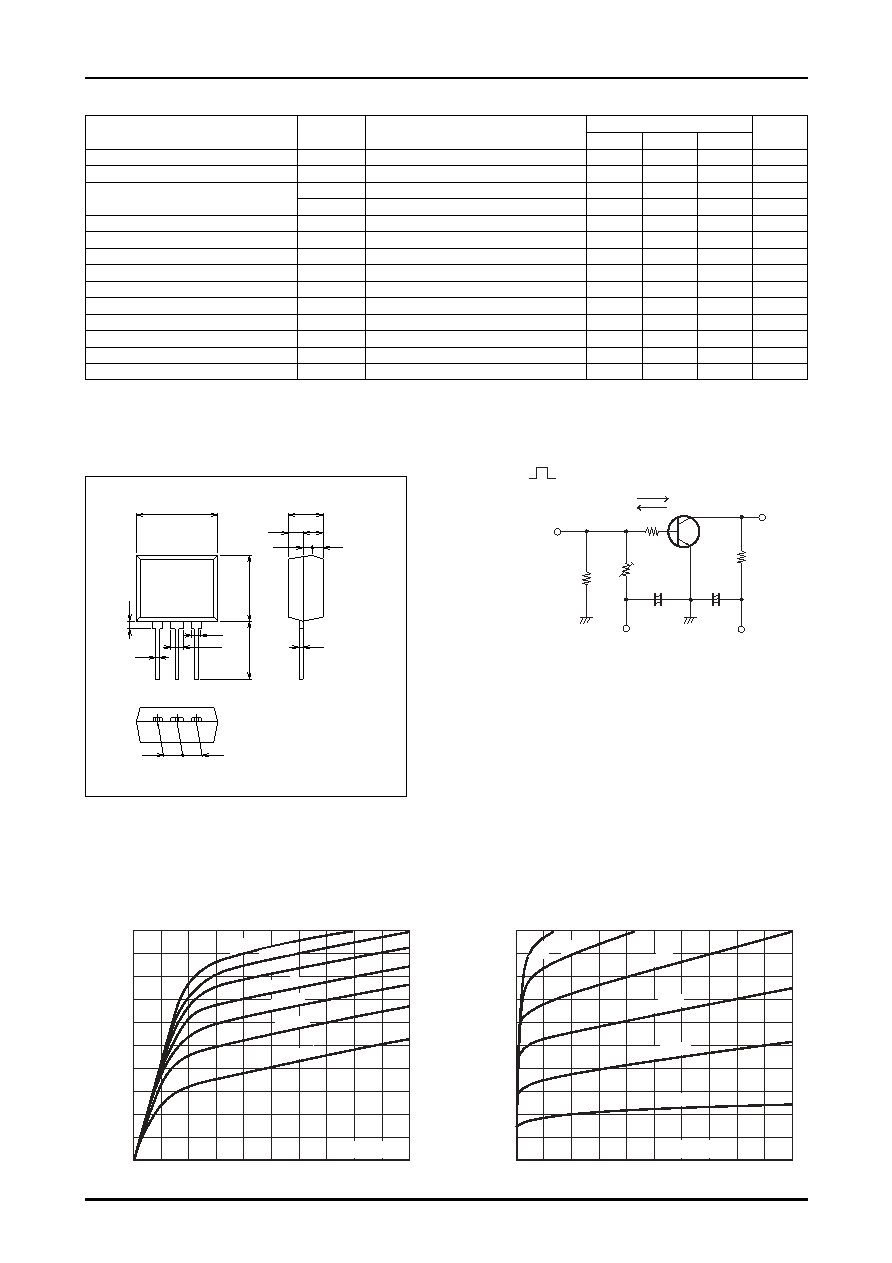

2SC4736
No.3975-2/4
Electrical Characteristics at Ta=25°C
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
Collector Cutoff Current
ICBO
VCB=50V, IE=0A
1
A
Emitter Cutoff Current
IEBO
VEB=10V, IC=0A
1
A
DC Current Gain
hFE1VCE=5V, IC=500mA
800
1500
3200
hFE2VCE=5V, IC=1A
600
Gain-Bandwidth Product
fT
VCE=10V, IC=50mA
170
MHz
Output Capacitance
Cob
VCB=10V, f=1MHz
24
pF
Collector-to-Emitter Saturation Voltage
VCE(sat)
IC=1A, IB=20mA
0.2
0.5
V
Base-to-Emitter Saturation Voltage
VBE(sat)
IC=1A, IB=20mA
0.87
1.2
V
Collector-to-Base Breakdown Voltage
V(BR)CBO
IC=10A, IE=0A
80
V
Collector-to-Emitter Breakdown Voltage
V(BR)CEO
IC=1mA, RBE=∞
60
V
Emitter-to-Base Breakdown Voltage
V(BR)EBO
IE=10A, IC=0A
15
V
Turn-ON Time
ton
See specified Test Circuit.
0.23
s
Storage Time
tstg
See specified Test Circuit.
2.7
s
Fall Time
tf
See specified Test Circuit.
0.75
s
Package Dimensions
Switching Time Test Circuit
unit : mm (typ)
7514-003
10.5
8.5
7.5
4.5
1.9
2.6
1.2
1.4
13
2
1.2
0.5
1.0
1.6
2.5
0.5
1 : Emitter
2 : Collector
3 : Base
SANYO : FLP
PW=20s
D.C.≤1%
INPUT
VCC=20V
50
IB1
IB2
100F
470F
--5V
VR
+
RL
OUTPUT
IC=100IB1= --100IB2=700mA
Collector-to-Emitter Voltage, VCE -- V
Collector
Current,
I
C
-
A
IC -- VCE
Collector-to-Emitter Voltage, VCE -- V
Collector
Current,
I
C
-
mA
IC -- VCE
ITR07504
1.2
1.6
2.0
0.8
0.4
0
0.8
0.4
1.2
1.6
2.0
IB=0mA
35mA
30mA
25mA
20mA
15mA
10mA
5mA
ITR07505
30
40
50
20
10
0
200
100
300
400
500
IB=0A
300
A 250
A
200
A
150
A
100A
50
A
