MOS FIELD EFFECT TRANSISTOR
DESCRIPTION
The 2SK2353/2SK2354 is N-Channel MOS Field Effect Transis-
tor designed for high voltage switching applications.
FEATURES
Low On-Resistance
2SK2353: RDS(on) = 1.4
(VGS = 10 V, ID = 2.5 A)
2SK2354: RDS(on) = 1.5
(VGS = 10 V, ID = 2.5 A)
Low Ciss
Ciss = 670 pF TYP.
High Avalanche Capability Ratings
Isolate TO-220 Package
QUALITY GRADE
Standard
Please refer to "Quality grade on NEC Semiconductor Devices" (Document
number IEI-1209) published by NEC Corporation to know the
specification of quality grade on the devices and its recommended
applications.
ABSOLUTE MAXIMUM RATINGS (TA = 25 C)
Drain to Source Voltage (2SK2353/2354)
VDSS
450/500
V
Gate to Source Voltage
VGSS
±30
V
Drain Current (DC)
ID(DC)
±4.5
A
Drain Current (pulse)*
ID(pulse)
±18
A
Total Power Dissipation (Tc = 25 C)
PT1
30
W
Total Power Dissipation (Ta = 25 C)
PT2
2.0
W
Channel Temperature
Tch
150
C
Storage Temperature
Tstg
–55 to +150 C
Single Avalanche Current**
IAS
4.5
A
Single Avalanche Energy**
EAS
17.4
mJ
*
PW
≤ 10
s, Duty Cycle ≤ 1 %
** Starting Tch = 25 C, RG = 25
, VGS = 20 V → 0
2SK2353/2SK2354
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
The information in this document is subject to change without notice.
1994
DATA SHEET
Document No. TC-2499
(O. D. No. TC-8047)
Date Published November 1994 P
Printed in Japan
10.0 ±0.3.
0.7 ±0.1
2.7 ±0.2
4.5 ±0.2
15.0
±0.3
3.2 ±0.2
2.5 ±0.1
0.65 ±0.1
1.3 ±0.2
1.5 ±0.2
2.54
3
±0.1
12.0
±0.2
13.5
MIN.
4
±0.2
1. Gate
2. Drain
3. Source
Drain
Body
Diode
Gate
Source
12
3

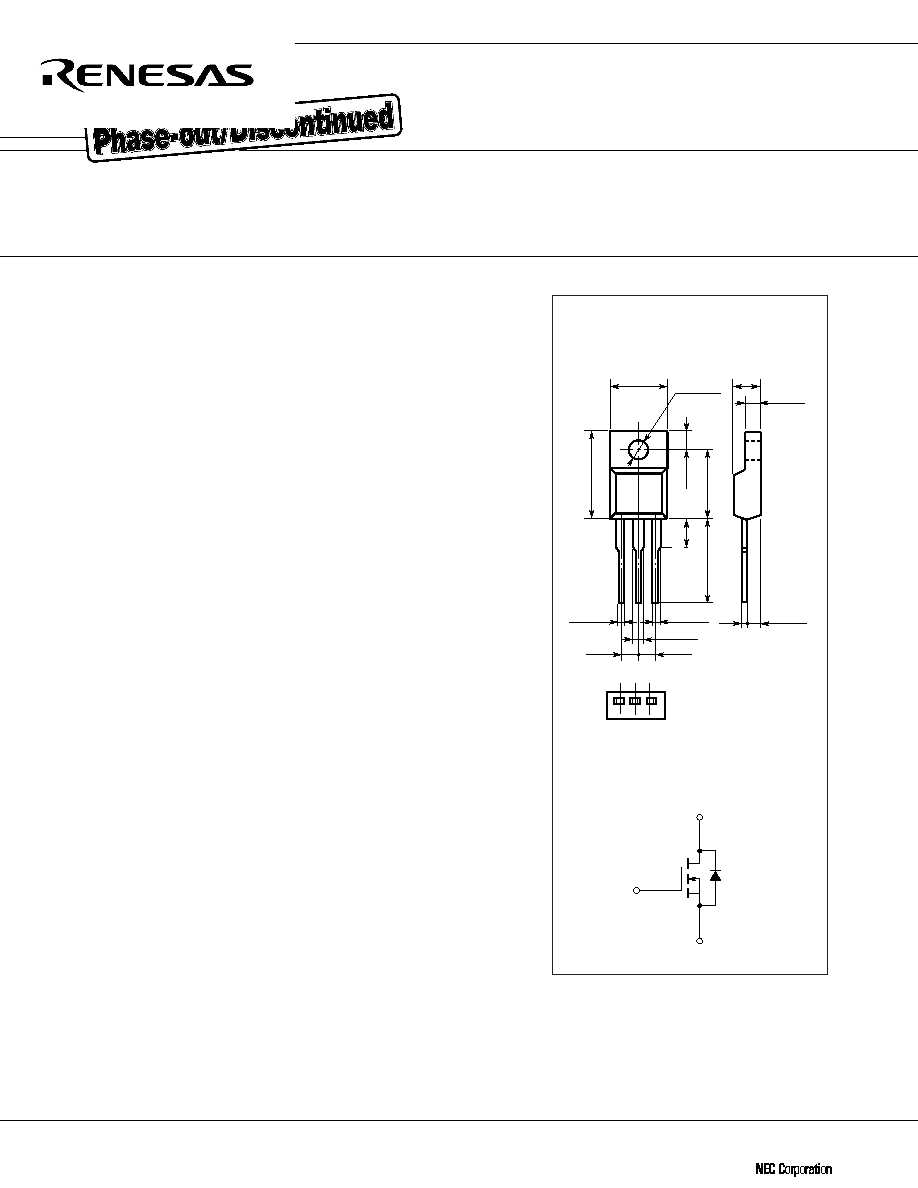

PACKAGE DIMENSIONS
(in millimeters)
MP-45F (ISOLATED TO-220)
