Data Sheet D12912EJ3V0DS
7
2SK3053

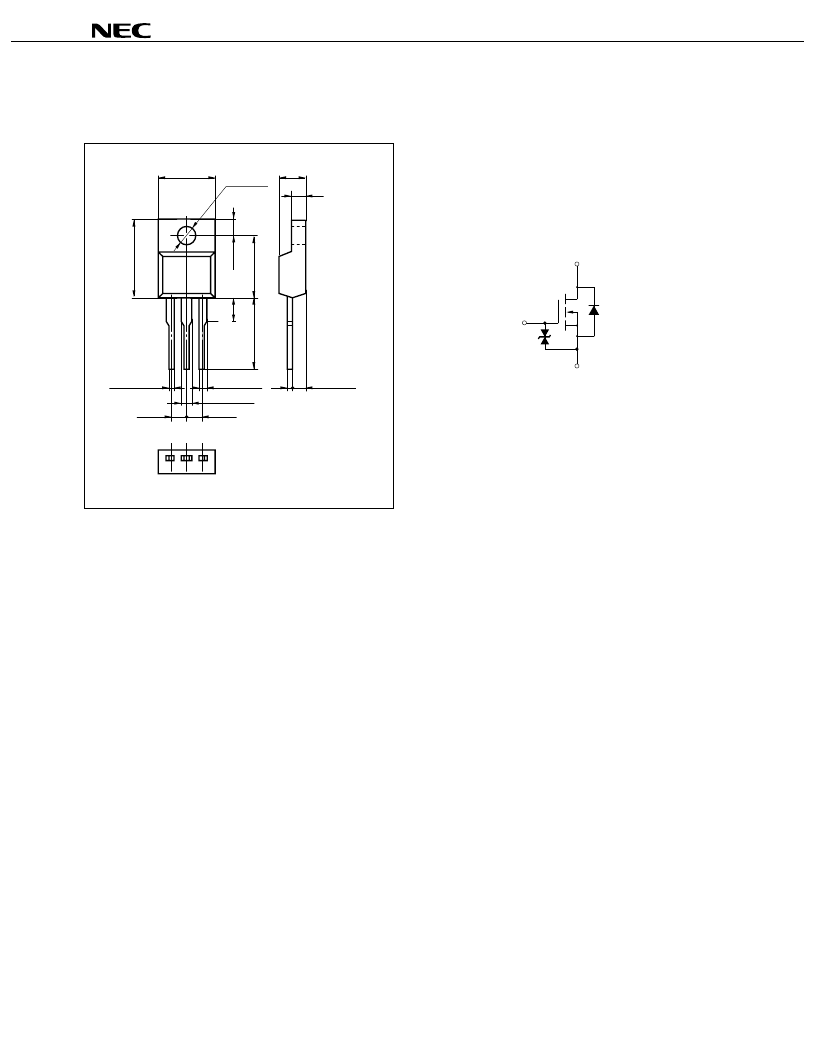

PACKAGE DRAWING
10.0
±
0.3
3.2
±
0.2
φ
4.5
±
0.2
2.7
±
0.2
2.5
±
0.1
0.65
±
0.1
1.5
±
0.2
2.54
1.3
±
0.2
2.54
0.7
±
0.1
4
±
0
1
±
0
1
±
0
3
±
0
1
2 3
1.Gate
2.Drain
3.Source
1
M
Isolated TO-220 (MP-45F)
Remark 1.
This product is designed for consumer application and isn’t suitable for automotive application.
2.
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
Body
Diode
Source (S)
Drain (D)
Gate (G)
EQUIVALENT CIRCUIT
Gate
Protection
Diode
