2001
MOS FIELD EFFECT TRANSISTOR
2SK3510
SWITCHING
N-CHANNEL POWER MOS FET
DATA SHEET
Document No.
D15687EJ1V0DS00 (1st edition)
Date Published
May 2002 NS CP(K)
Printed in Japan
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
DESCRIPTION
The 2SK3510 is N-channel MOS Field Effect Transistor
designed for high current switching applications.
FEATURES
Super low on-state resistance:
RDS(on) = 8.5 m
MAX. (VGS = 10 V, ID = 42 A)
Low Ciss: Ciss = 8500 pF TYP.
Built-in gate protection diode
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage (VGS = 0 V)
VDSS
75
V
Gate to Source Voltage (VDS = 0 V)
VGSS
±20
V
Drain Current (DC) (TC = 25°C)
ID(DC)
±83
A
Drain Current (pulse)
Note1
ID(pulse)
±332
A
Total Power Dissipation (TC = 25°C)
PT1
125
W
Total Power Dissipation (TA = 25°C)
PT2
1.5
W
Channel Temperature
Tch
150
°C
Storage Temperature
Tstg
–55 to +150
°C
Single Avalanche Current
Note2
IAS
69
A
Single Avalanche Energy
Note2
EAS
450
mJ
Notes 1. PW
≤ 10
s, Duty Cycle ≤ 1%
2. Starting Tch = 25°C, VDD = 35 V, RG = 25
, VGS = 20
→ 0 V
ORDERING INFORMATION
PART NUMBER
PACKAGE
2SK3510
TO-220AB
2SK3510-S
TO-262
2SK3510-ZJ
TO-263
2SK3510-Z
TO-220SMD
Note
Note TO-220SMD package is produced only
in Japan.

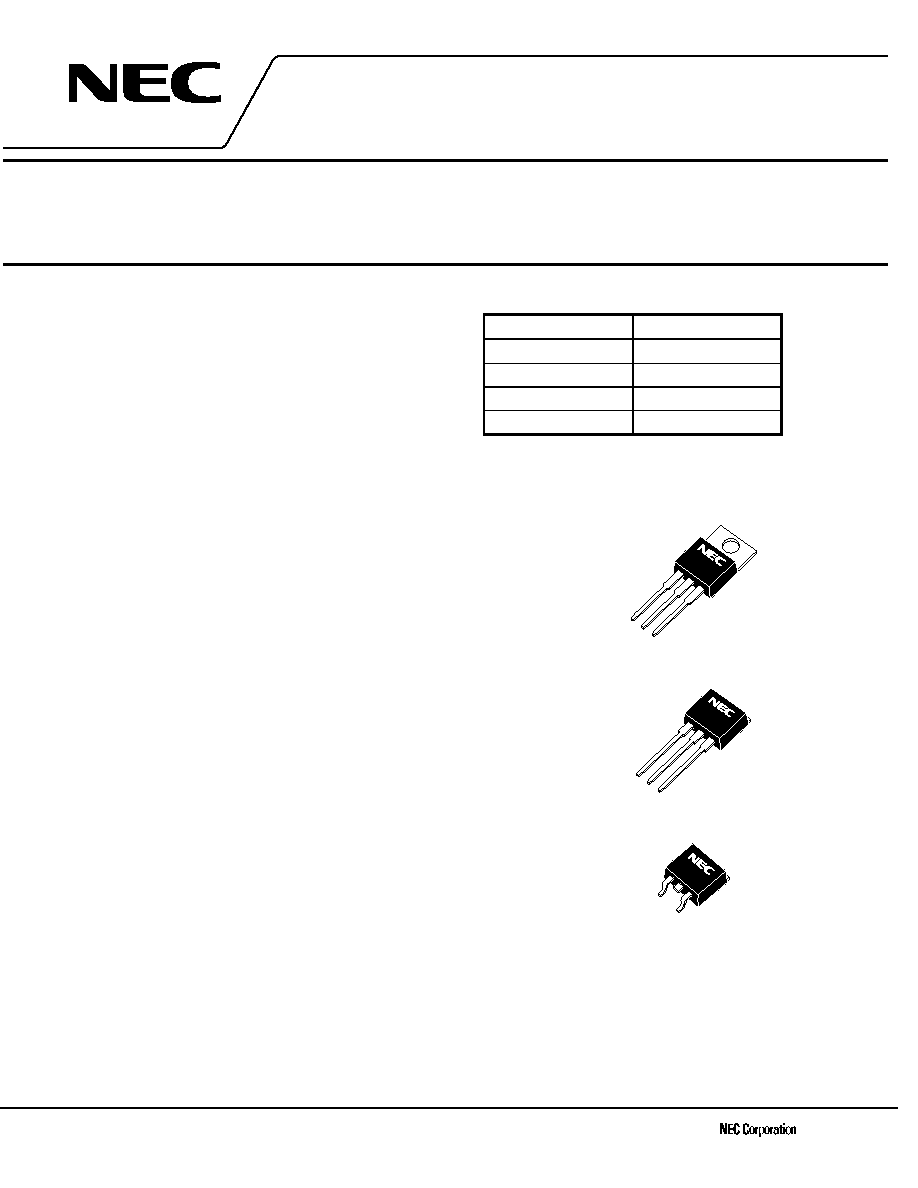

(TO-220AB)
(TO-262)
(TO-263, TO-220SMD)
