2SK4033
2005-07-27
2

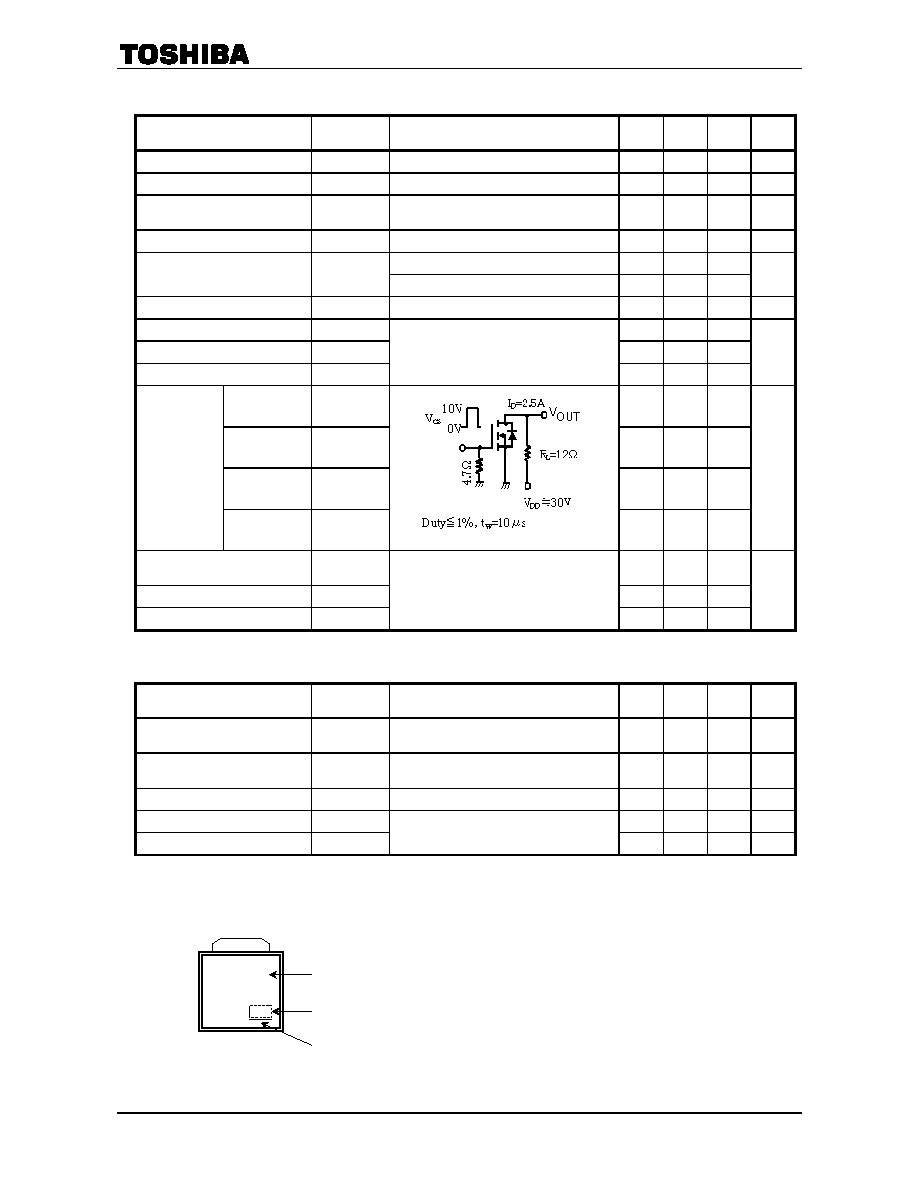

Electrical Characteristics (Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Gate leakage current
IGSS
VGS = ±16 V, VDS = 0 V
—
±10
A
Drain cutoff current
IDSS
VDS = 60 V, VGS = 0 V
—
100
A
Drainsource breakdown
voltage
V (BR) DSS
ID = 10 mA, VGS = 0 V
60
—
V
Gate threshold voltage
Vth
VDS = 10 V, ID = 1 mA
1.3
—
2.5
V
VGS = 4 V, ID = 2.5 A
—
0.09
0.15
Drainsource ON-resistance
RDS (ON)
VGS = 10 V, ID = 2.5 A
—
0.07
0.10
Forward transfer admittance
|Yfs|
VDS = 10 V, ID = 2.5 A
3.0
6.0
—
S
Input capacitance
Ciss
—
730
—
Reverse transfer capacitance
Crss
—
60
—
Output capacitance
Coss
VDS = 10 V, VGS = 0 V, f = 1 MHz
—
95
—
pF
Rise time
tr
—
10
—
Turnon time
ton
—
20
—
Fall time
tf
—
4
—
Switching time
Turnoff time
toff
—
35
—
ns
Total gate charge (gatesource
plus gatedrain)
Qg
—
15
—
Gatesource charge
Qgs
—
11
—
Gatedrain (“Miller”) charge
Qgd
VDD ≈ 48 V, VGS = 10 V, ID = 5 A
—
4
—
nC
SourceDrain Ratings and Characteristics (Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Continuous drain reverse current
(Note 1)
IDR
—
5
A
Pulse drain reverse current
(Note 1)
IDRP
—
20
A
Forward voltage (diode)
VDSF
IDR = 5 A, VGS = 0 V
—
1.7
V
Reverse recovery time
trr
—
34
—
ns
Reverse recovery charge
Qrr
IDR = 5 A, VGS = 0 V, dIDR / dt = 50 A / s
—
28
—
C
Marking
K4033
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
Part No. (or abbreviation code)
