CAMBION
Technical Data Sheet
Wearnes Cambion LTD
Castleton, Hope Valley, Derbyshire, S33 8WR, England
Telephone: +44(0)1433 621555 Fax: +44(0)1433 621290
Web: www.cambion.com Email: enquiries@cambion.com
Copyright Cambion Thursday, 13 February 2003
Page 1 of 1

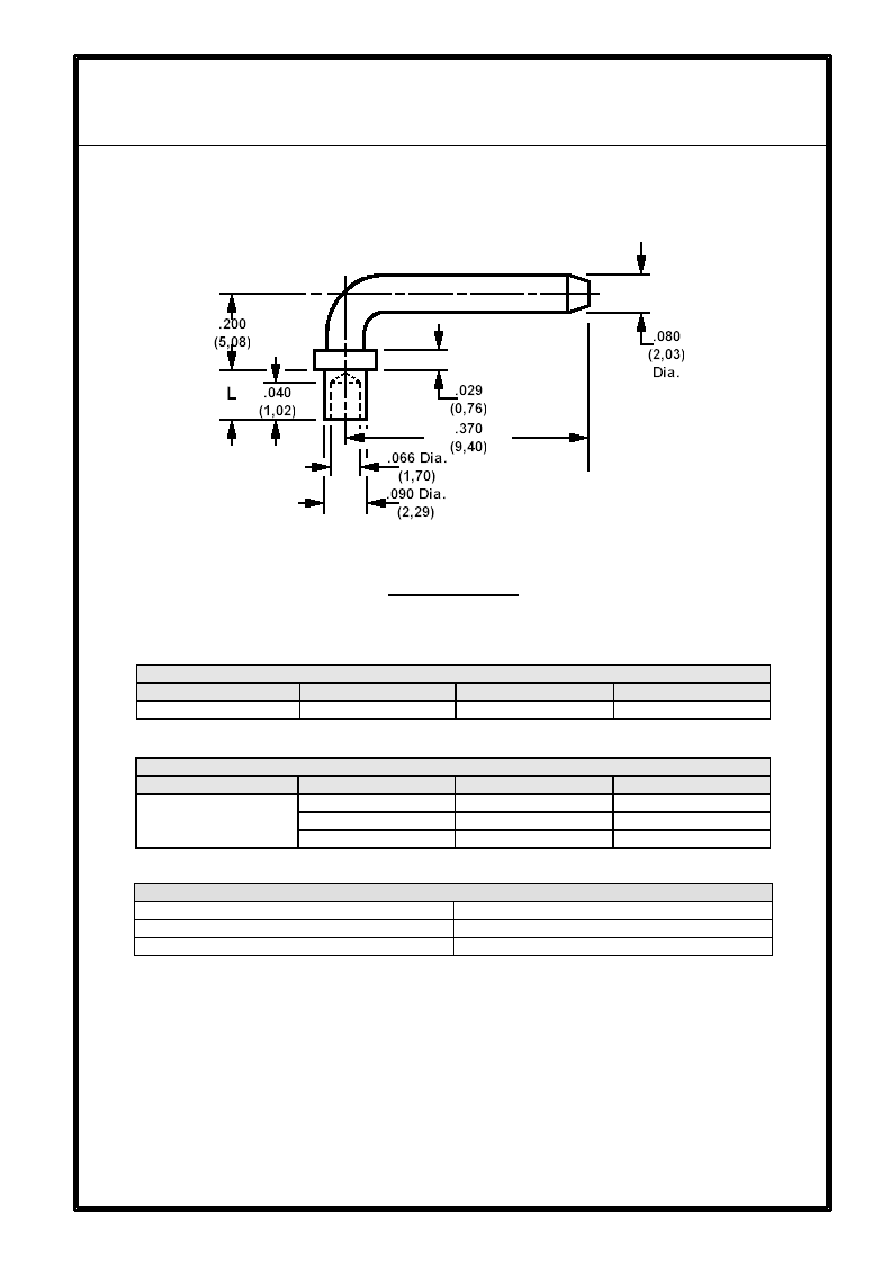

460-1523 Swage mount, right angle, .080 (2,03) diameter pin
Recommended mounting hole .094 (2,39) ± .002 (0,05)
How to order code
460-1523-XX-YY-00
Basic Part No XX= L dimension, YY = Plating Finish
MATERIALS
Component
Material
Finish (-03)
Finish (-04)
Pin
Brass
Gold over Nickel
Electro-tin over copper
DIMENSIONS
Basic Part Number
(XX)
L
Board Thickness
-01
.051 (1,30)
.031 (0,79)
-02
.081 (2,08)
.061 (1,57)
460-1523
-03
.112 (2,87)
.094 (2,39)
SWAGE TOOLING
Recommended Swaging Tools:-
Anvil
435-6523-01-00-00
Punch
435-6663-01-00-00
Because of pin configuration, these tools cannot be used in manual swager 435-3803-01-00-00
