TLE207x, TLE207xA
EXCALIBUR LOW-NOISE HIGH-SPEED
JFET-INPUT OPERATIONAL AMPLIFIERS
SLOS181C FEBRUARY 1997 REVISED DECEMBER 2009
63
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

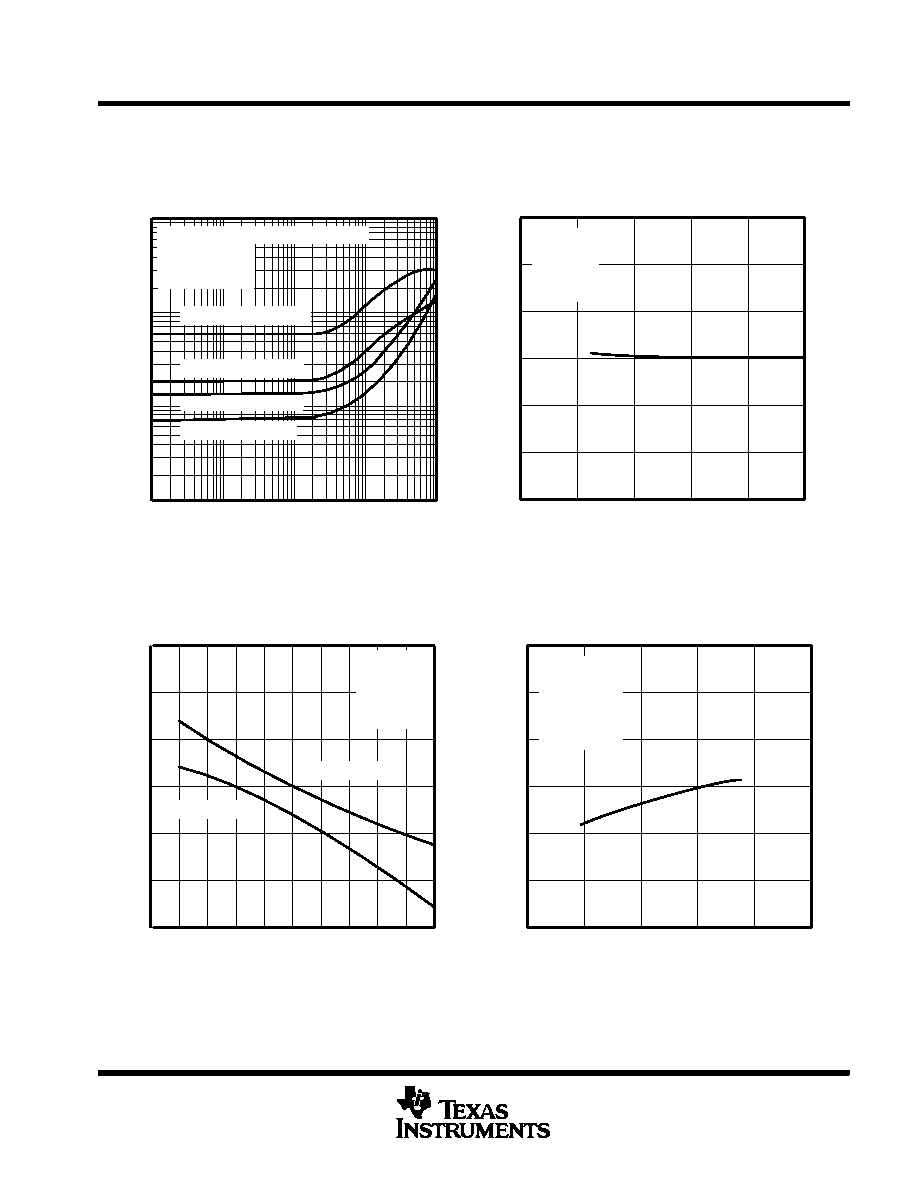

TYPICAL CHARACTERISTICS
Figure 58
10
100
1 k
10 k
100 k
f Frequency Hz
0.001
THD
+
N
T
otal
Harmonic
Distortion
+
Noise
%
TOTAL HARMONIC DISTORTION PLUS NOISE
vs
FREQUENCY
0.01
0.1
1
Filter: 10-Hz to 500-kHz Band Pass
AV = 10, RL = 2 kΩ
AV = 10, RL = 600 Ω
AV = 100, RL = 2 kΩ
AV = 100, RL = 600 Ω
VCC ± = ± 15 V
VO(PP) = 20 V
TA = 25°C
Figure 59
B1
Unity-Gain
Bandwidth
MHz
B
1
10
9
8
7
020
40
60
11
12
UNITY-GAIN BANDWIDTH
vs
LOAD CAPACITANCE
13
80
100
VCC ± = ± 15 V
CL Load Capacitance pF
VIC = 0
VO = 0
RL = 2 kΩ
TA = 25°C
Figure 60
TA Free-Air Temperature °C
10
9
8
7
75 55 35 15
5
25
45
Gain-Bandwidth
Product
MHz
11
12
GAIN-BANDWIDTH PRODUCT
vs
FREE-AIR TEMPERATURE
13
65
85
105 125
f = 100 kHz
VIC = 0
VO = 0
RL = 2 kΩ
CL = 100 pF
VCC ± = ± 15 V
VCC ± = ± 5 V
Figure 61
|VCC + | Supply Voltage V
10
9
8
7
0
5
10
15
Gain-Bandwidth
Product
MHz
11
12
13
20
25
CC
±
V
f = 100 kHz
VIC = 0
VO = 0
RL = 2 kΩ
CL = 100 pF
TA = 25°C
GAIN-BANDWIDTH PRODUCT
vs
SUPPLY VOLTAGE
Data at high and low temperatures are applicable only within the rated operating free-air temperature ranges of the various devices.
