3V AC Electrical Characteristics
Unless otherwise specified, V
+ = 3V, V = 0V, V
CM =VO =V
+/2 and R
L > 1M. Boldface limits apply at the temperature ex-
tremes.
LMC6462AI
LMC6462BI
LMC6462AM
Symbol
Parameter
Conditions
Typ
LMC6464AI
LMC6464BI
LMC6464AM
Units
(Note 5)
Limit
(Note 6)
SR
Slew Rate
(Note 11)
23
V/ms
GBW
Gain-Bandwidth Product
50
kHz
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is in-
tended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical Characteristics.
Note 2: Human body model, 1.5 k
in series with 100 pF. All pins rated per method 3015.6 of MIL-STD-883. This is a class 2 device rating.
Note 3: Applies to both single supply and split-supply operation. Continuous short circuit operation at elevated ambient temperature can result in exceeding the maxi-
mum allowed junction temperature of 150C. Output currents in excess of ±30 mA over long term may adversely affect reliability.
Note 4: The maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any ambient temperature is PD =(TJ(max)
TA)/θJA. All numbers apply for packages soldered directly into a PC board.
Note 5: Typical Values represent the most likely parametric norm.
Note 6: All limits are guaranteed by testing or statistical analysis.
Note 7: V+ = 15V, VCM = 7.5V and RL connected to 7.5V. For Sourcing tests, 7.5V ≤ VO ≤ 11.5V. For Sinking tests, 3.5V ≤ VO ≤ 7.5V.
Note 8: Do not short circuit output to V+, when V+ is greater than 13V or reliability will be adversely affected.
Note 9: V+ = 15V. Connected as Voltage Follower with 10V step input. Number specified is the slower of either the positive or negative slew rates.
Note 10: Input referred, V+ = 15V and RL = 100 k connected to 7.5V. Each amp excited in turn with 1 kHz to produce VO =12 VPP.
Note 11: Connected as Voltage Follower with 2V step input. Number specified is the slower of either the positive or negative slew rates.
Note 12: Limiting input pin current is only necessary for input voltages that exceed absolute maximum input voltage ratings.
Note 13: Guaranteed limits are dictated by tester limitations and not device performance. Actual performance is reflected in the typical value.
Note 14: For guaranteed Military Temperature Range parameters see RETSMC6462/4X.

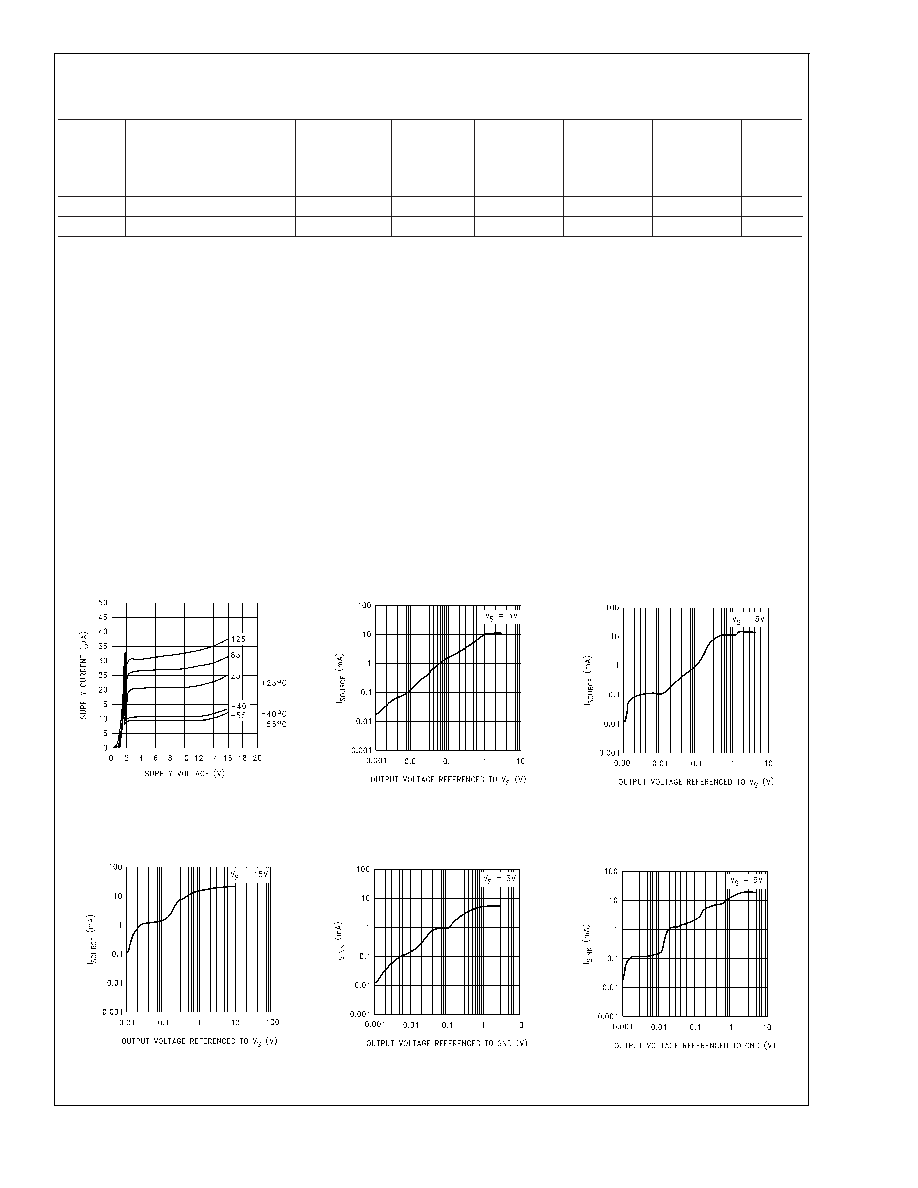

Typical Performance Characteristics V
S = +5V, Single Supply, TA = 25C unless otherwise specified
Supply Current vs
Supply Voltage
DS012051-30
Sourcing Current vs
Output Voltage
DS012051-31
Sourcing Current vs
Output Voltage
DS012051-32
Sourcing Current vs
Output Voltage
DS012051-33
Sinking Current vs
Output Voltage
DS012051-34
Sinking Current vs
Output Voltage
DS012051-35
LMC6462
Dual/LMC6464
Quad
www.national.com
5
