Mass Termination
IDC Systems
11
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).

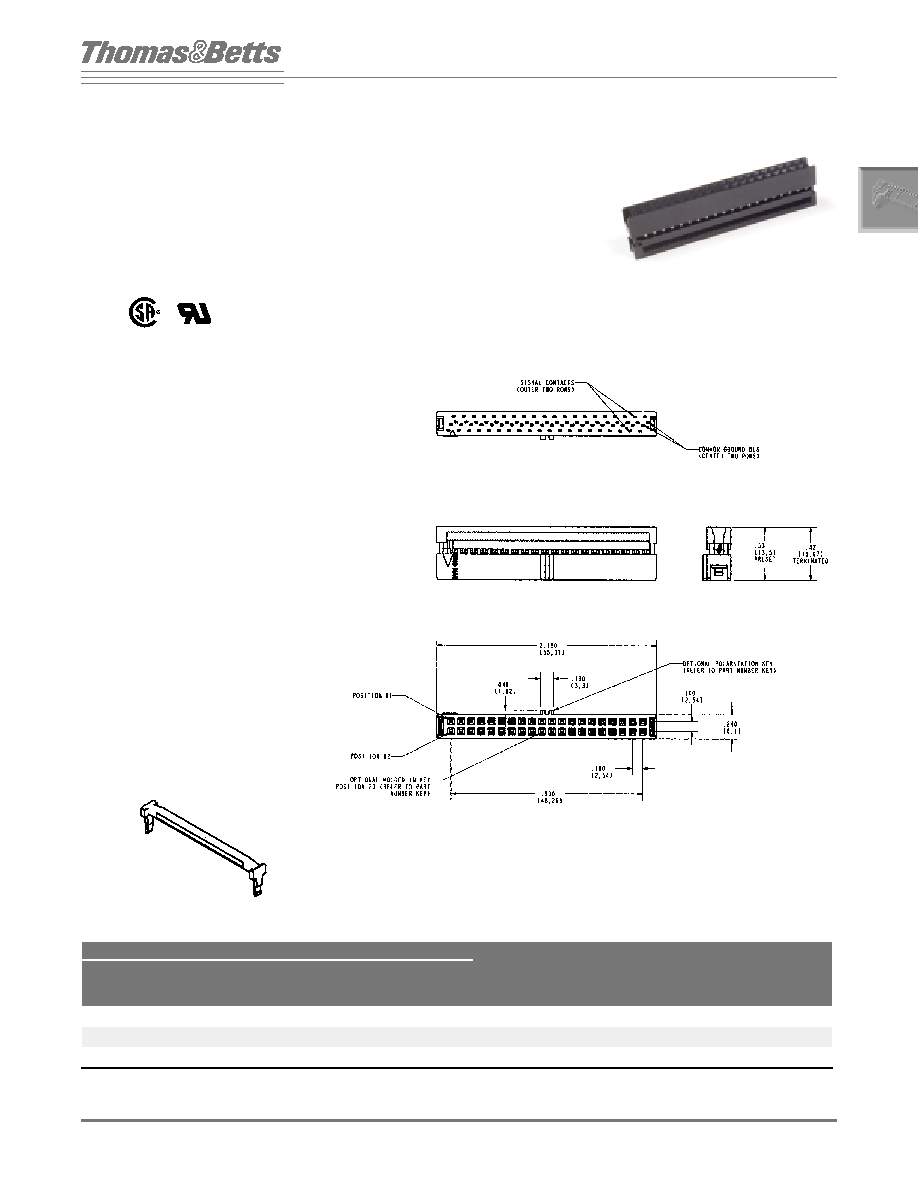

ULTRA - ATA 40 POSITION
FEMALE SOCKET
CONNECTOR
WITH 15 INCHES GOLD
.100" x .100" CENTERS I/O
FOR .025" PITCH CABLE
PHYSICAL PROPERTIES
INSULATION MATERIAL: Glass filled thermoplastic
rated UL 94V-0
COLOR: Blue (system), Black (primary), or Gray
(secondary)
CONTACTS: Phosphor bronze 15 inches mini-
mum gold over 50 inches nickel in contact
zone; tin/lead over nickel in termination area
ELECTRICAL PROPERTIES
CURRENT RATING: 0.5 Amp
INSULATION RESISTANCE: >500 M
@ 200 VDC
DIELECTRIC STRENGTH: > 250 VRMS at sea level
ENVIRONMENTAL PROPERTIES
TEMPERATURE RATING: -55°C to 105°C
CABLE REQUIREMENTS
.025 CENTERLINE: See Page 102-114
MATING CONNECTORS
HEADERS: See pages 26-44
MALE PLUG: See pages 47-49
APPLICATION TOOLING
HAND TOOL:
779-2100
use Die
779-2150
BENCH PRESS (MANUAL):
779-3200
use Platen
779-3130
use Base Plate
779-3151
BENCH PRESS (PNEUMATIC):
779-3500XT
use Platen
779-3130
use Base Plate
779-3151
LR49571
E60980
Ordering Information
CATALOG NUMBERS
DIMENSIONS IN MM (INCHES)
SOCKET W/
SOCKET
SOCKET W/ CENTER
CENTER
W/ POS. #20
POL. TAB AND POS.
A
B
C
POL. TAB
MOLDED IN
#20 MOLDED IN
STRAIN RELIEF
COLOR
DEVICE
636-40ATA01-17
636-40ATA10-17
636-40ATA11-17
636-40ATASR
Blue
System
55.30 (2.177)
48.26 (1.900)
3.80 (.150)
636-40ATA01-27
636-40ATA10-27
636-40ATA11-27
636-40ATASR
Black
Primary
55.30 (2.177)
48.26 (1.900)
3.80 (.150)
636-40ATA01-37
636-40ATA10-37
636-40ATA11-37
636-40ATASR
Gray
Secondary
55.30 (2.177)
48.26 (1.900)
3.80 (.150)
Strain Relief
Sold Separately
