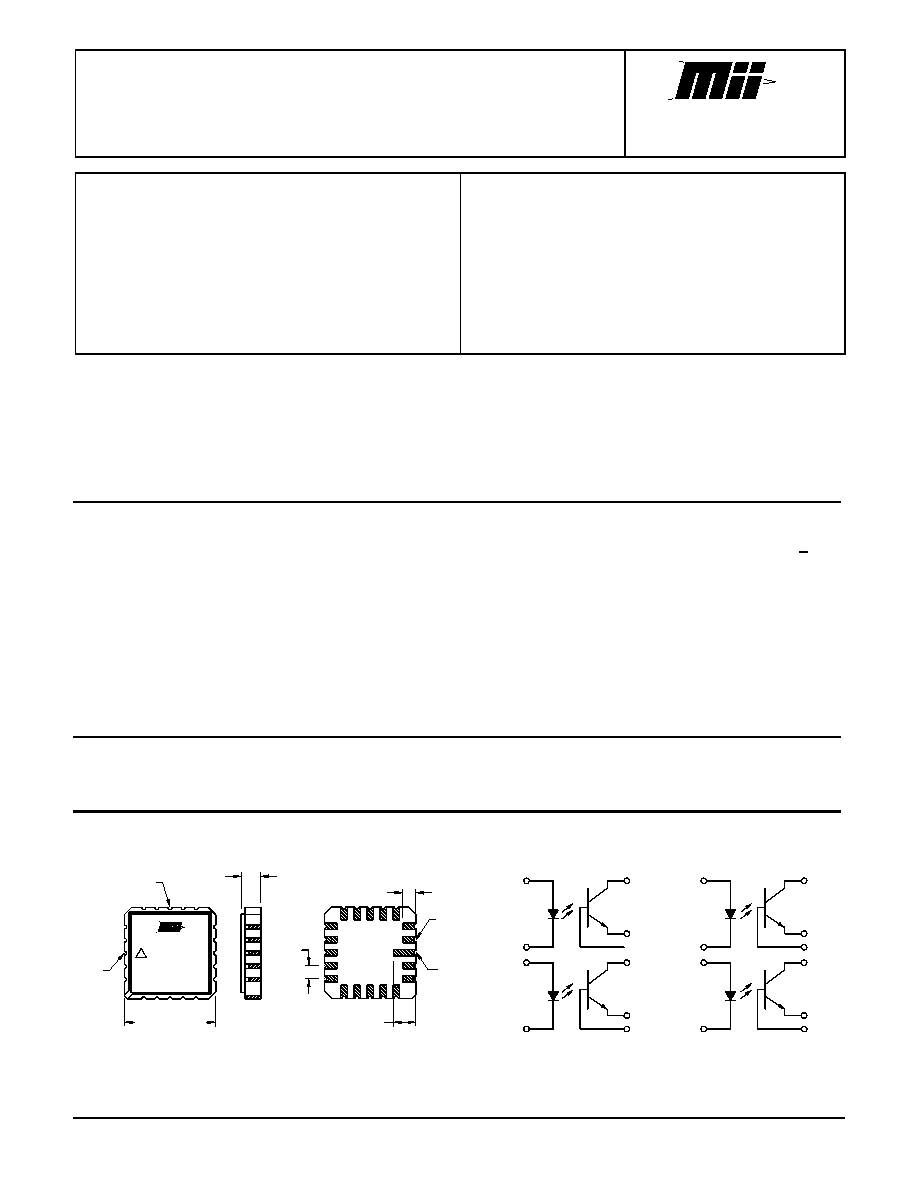

MICROPAC INDUSTRIES, INC. OPTOELECTRONIC PRODUCTS DIVISION
725 E.Walnut St., Garland, TX 75040 (972)272-3571 Fax (972)487-6918
www.micropac.com
E-MAIL: OPTOSALES @ MICROPAC.COM
66143
QUAD CHANNEL, HERMETIC 20 PIN LCC,
OPTICALLY COUPLED ISOLATOR
OPTOELECTRONIC
PRODUCTS
DIVISION
08/06/2008
Features:
High Reliability
Base lead provided for conventional transistor
biasing
Very high gain, high voltage transistor
Stability over wide temperature range.
+1kVdc electrical isolation
Screening available
Applications:
Eliminate ground loops
Level shifting
Line receiver
Switching power supplies
Motor control
DESCRIPTION
The Mii 66143 -X02, -X03 and -X04 are optically coupled isolators, consisting of four GaAlAs LEDs and four silicon
phototransistors mounted and coupled in a miniature surface mount hermetic leadless chip carrier. All electrical
characteristics of each channel are identical to the JEDEC registered 4N47 (-X02), 4N48 (-X03) and 4N49 (-X04). Each unit
contains four channels. These solid state couplers are ideal for designs where board space and device weight are important
design considerations.
ABSOLUTE MAXIMUM RATINGS
Input-to-output Voltage (see Note 1) .................................................................................................................................... +1kV
Collector-Base Voltage ........................................................................................................................................................... 45V
Collector-Emitter Voltage (Value applies to emitter-base open-circuited & the input-diode equal to zero) .......................... 40V
Emitter-Base Voltage................................................................................................................................................................ 7V
Input Diode Reverse Voltage ................................................................................................................................................... 3V
Input Diode Continuous Forward Current at (or below) 65°C Free-Air Temperature (see note 2) ....................................40mA
Input Diode Power Dissipation ...........................................................................................................................................60mW
Continuous Collector Current ..............................................................................................................................................50mA
Continuous Transistor Power Dissipation at (or below) 25°C Free-Air Temperature (see Note 3) ................................300mW
Storage Temperature......................................................................................................................................... -65°C to +150°C
Operating Free-Air Temperature Range ............................................................................................................-55°C to +125°C
Lead Solder Temperature (10 seconds)............................................................................................................................. 240°C
Notes:
1.
Measured with Inputs shorted together and outputs shorted together.
2.
Derate linearly to 125°C free-air temperature at the rate of 0.67 mA/°C above 65°C.
3.
Derate linearly to 125°C free-air temperature at the rate of 3 mW/°C.
Package Dimensions
Schematic Diagram
7
K2
2
8
K1
A2
K4 18
9 B2
A4
K3
10 E2
B1
4
11 C2
17
12
B4
19
E4
20
C4
B3
1
14
3
A1
A3
5 E1
6 C1
13
E3
15
C3
16
0.050 [1.27] TYP.
0.090 [2.29]
±0.009 [0.23]
PIN 1
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
0.350 [8.89] SQ.
±0.008 [0.20]
66143
XXXX
0.050
TYP
R0.008 [R0.20]
TYP.
PIN 1
0.085 [2.16]
TYP.
PIN 16
