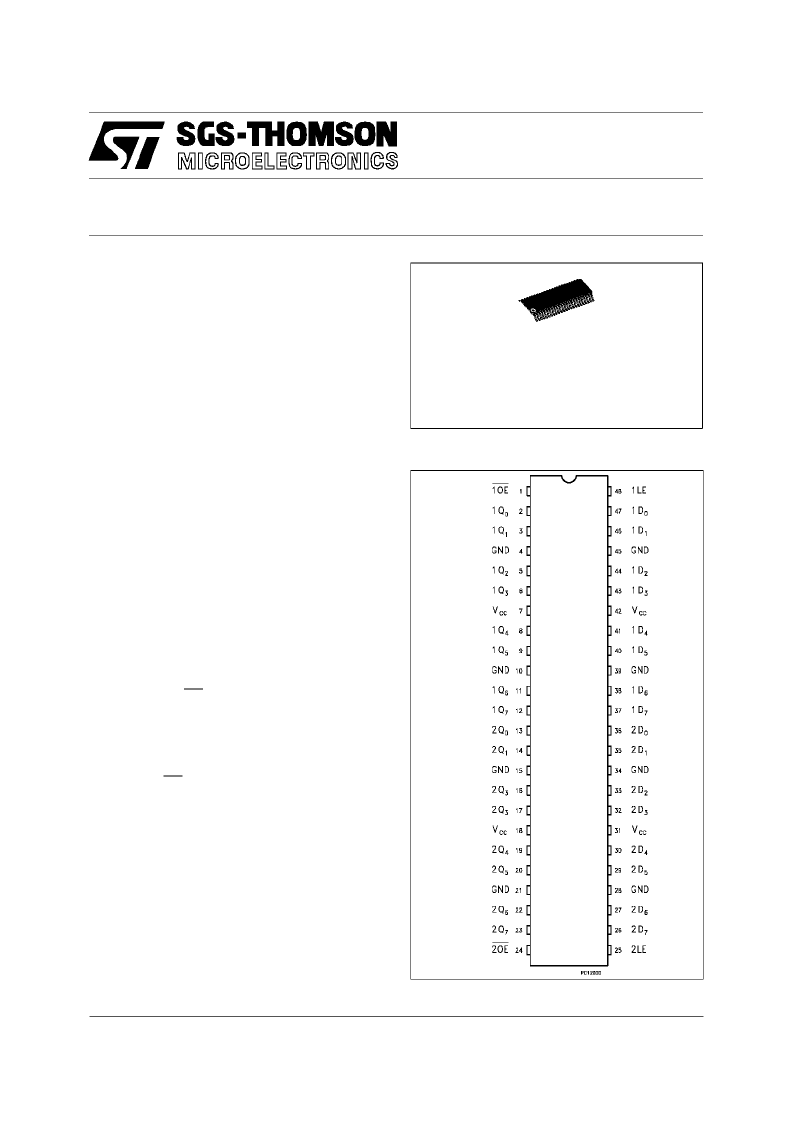

74LCX16373
LOW VOLTAGE 16-BIT D-TYPE LATCH 3-STATE
WITH 5V TOLERANT INPUTS AND OUTPUT
PRELIMINARY DATA
June 1997
ORDER CODES :
74LCX16373T
I
5V TOLERANTINPUTS AND OUTPUTS
I
HIGH SPEED:t
PD
= 5.4 ns(MAX.) at V
CC
= 3V
I
POWER-DOWN PROTECTIONONINPUTS
ANDOUTPUTS
I
SYMMETRICALOUTPUT IMPEDANCE:
|I
OH
| = I
OL
=24 mA (MIN)
I
PCI BUSLEVELSGUARANTEEDAT 24mA
I
BALANCED PROPAGATIONDELAYS:
t
PLH
t
PHL
I
OPERATINGVOLTAGERANGE:
V
CC
(OPR)= 2.0Vto 3.6V (1.5VData Retention)
I
PIN AND FUNCTION COMPATIBLEWITH
74SERIES16373
I
LATCH-UP PERFORMANCE EXCEEDS500mA
I
ESD PERFORMANCE:
HBM>2000V;MM > 200V
DESCRIPTION
The LCX16373 is a low level CMOS 16-BIT
D-TYPE LATCH with 3 STATE OUTPUT NON
INVERTING fabricated with sub-micron silicon
gate and double-layer metal wiring C
2
MOS
technology. It is ideal for low power and high
speed 3.3V applications; it can be interfaced to
5V signal enviroment for both inputs and outputs.
These 16 bit D-Type latchs are byte controlled by
two latch enable inputs (nLE) and two output
enableinputs (nOE).
While the nLE input is held at a high level, the nQ
outputswill follow the data input precisely.
When the nLE is takenlow, the nQ outputswill be
latchedprecisely at thelogic level of D input data.
While the (nOE) input is low, the nQ outputs will
be in a normal logic state (high or low logic level)
and while high level the outputs will be in a high
impedancestate.
It has better speed performance at 3.3V than 5V
LSTTL family combined with the true CMOS low
power consumption.
All
inputs
and
outputs are
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
equipped
with
T
(TSSOP48 Package)
PIN CONNECTION
1/9
