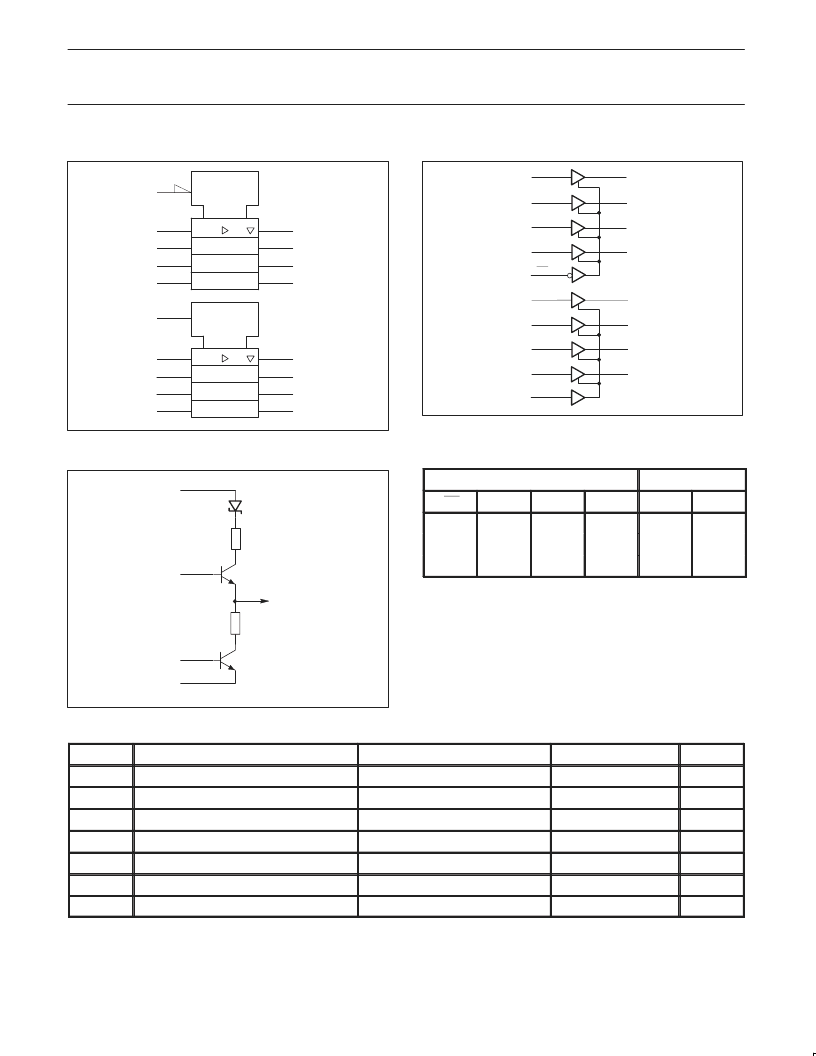

Philips Semiconductors
Product specification
74ABT2241
Octal buffer with 30 series termination resistors
(3-State)
1996 Sep 30
3
LOGIC SYMBOL (IEEE/IEC)
1
2
18
4
16
6
14
8
12
19
17
3
15
5
13
7
11
9
EN
EN
SA00040
SCHEMATIC OF EACH OUTPUT
V
CC
GND
OUTPUT
SA00409
LOGIC SYMBOL
1OE
1
1A0
2
1A1
4
1A2
6
1A3
8
2OE
19
2A0
17
2A1
18
15
2A2
13
16
2A3
11
14
12
1Y0
1Y1
1Y2
1Y3
2Y0
2Y1
2Y2
2Y3
3
5
7
9
SA00039
FUNCTION TABLE
INPUTS
OUTPUTS
1OE
1An
2OE
2An
1Yn
2Yn
L
L
H
L
L
L
L
H
H
H
H
H
H
X
L
X
Z
Z
H =High voltage level
L
=Low voltage level
X =Don’t care
Z =High impedance ”off” state
ABSOLUTE MAXIMUM RATINGS
1, 2
SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
V
CC
DC supply voltage
–0.5 to +7.0
V
I
IK
DC input diode current
V
I
< 0
–18
mA
V
I
DC input voltage
3
–1.2 to +7.0
V
I
OK
DC output diode current
V
O
< 0
–50
mA
V
OUT
DC output voltage
3
output in Off or High state
–0.5 to +5.5
V
I
OUT
DC output current
output in Low state
128
mA
T
stg
Storage temperature range
–65 to 150
°
C
NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150
°
C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
