1999 Sep 27
8
Philips Semiconductors
Product specication
Hex inverting Schmitt trigger
74AHC14; 74AHCT14
AC WAVEFORMS

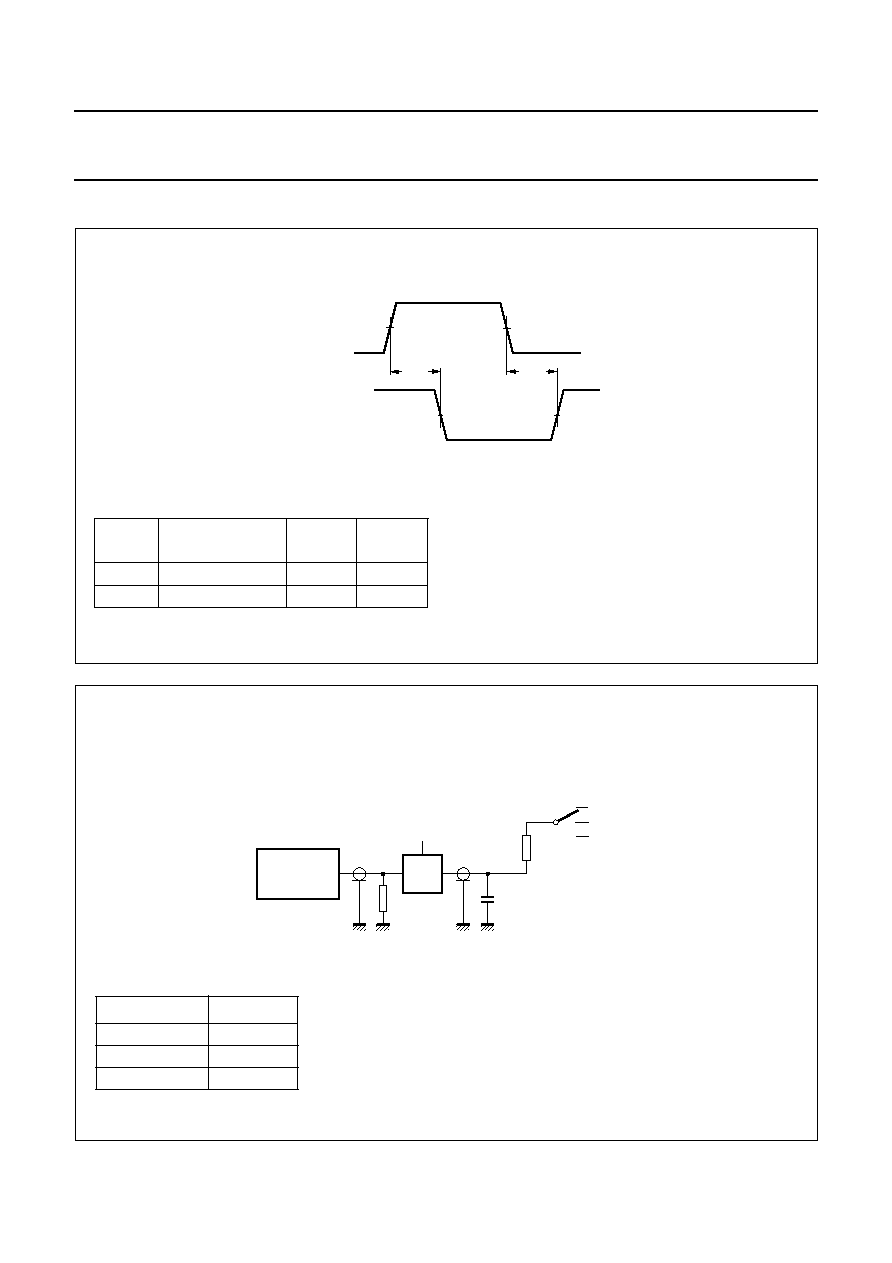

Fig.4 The input (nA) to output (nY) propagation delays.
FAMILY
VI INPUT
REQUIREMENTS
VM(1)
INPUT
VM(1)
OUTPUT
AHC
GND to VCC
50% VCC 50% VCC
AHCT
GND to 3.0 V
1.5 V
50% VCC
handbook, halfpage
MNA209
nA INPUT
nY OUTPUT
tPHL
tPLH
VM
(1)
VM
(1)
Fig.5 Load circuitry for switching times.
handbook, full pagewidth
open
GND
VCC
VI
VO
MNA219
D.U.T.
CL
RT
1000
PULSE
GENERATOR
S1
TEST
S1
tPLH/tPHL
open
tPLZ/tPZL
VCC
tPHZ/tPZH
GND
