2002 May 27
9
Philips Semiconductors
Product specication
2-input NAND gate
74AHC1G00; 74AHCT1G00

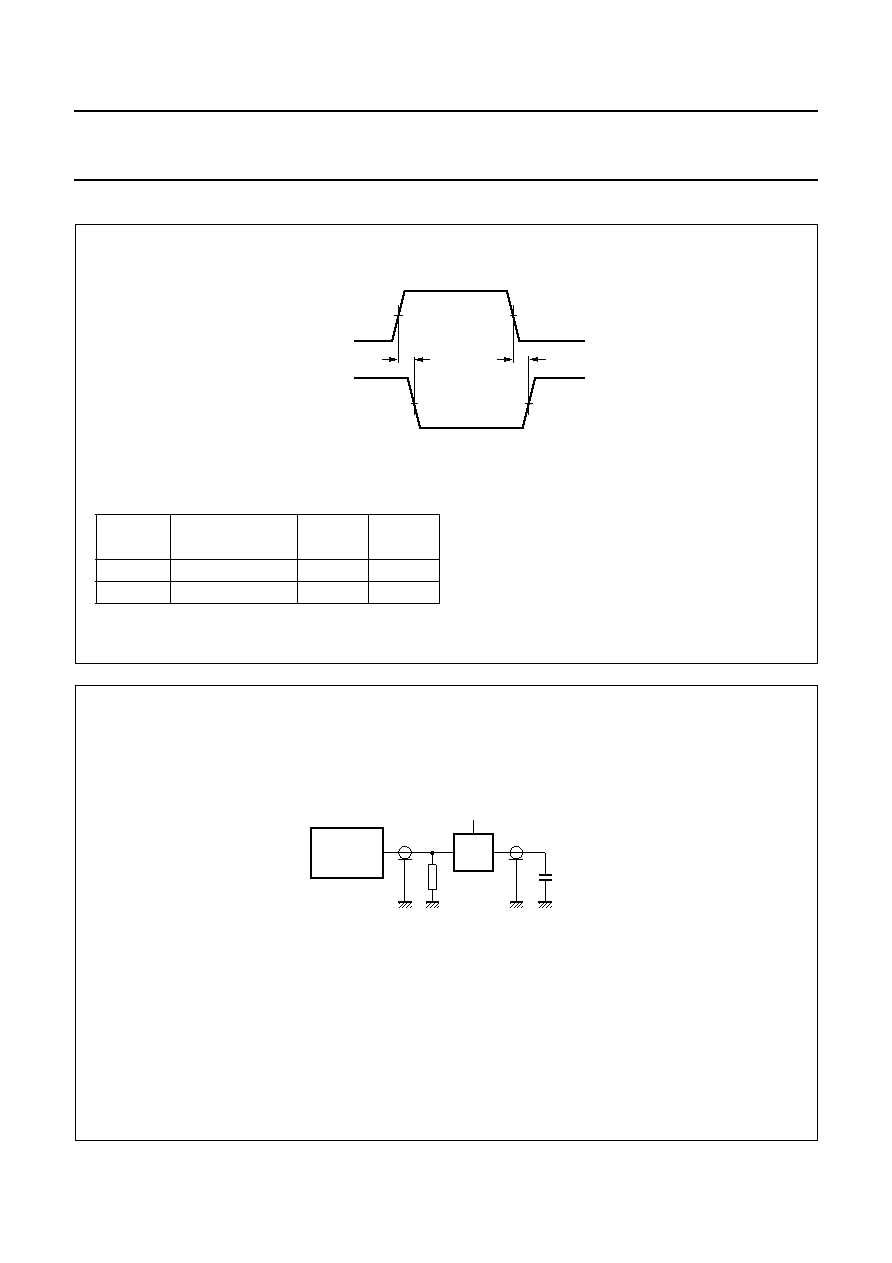

AC WAVEFORMS
handbook, halfpage
MNA106
A, B input
Y output
tPHL
tPLH
VM
Fig.5 The inputs (A and B) to output (Y) propagation delays.
FAMILY
VI INPUT
REQUIREMENTS
VM
INPUT
VM
OUTPUT
AHC1G
GND to VCC
50% VCC 50% VCC
AHCT1G
GND to 3.0 V
1.5 V
50% VCC
Fig.6 Load circuitry for switching times.
handbook, halfpage
VCC
VI
VO
MNA101
D.U.T.
CL
RT
PULSE
GENERATOR
Definitions for test circuit:
CL = Load capacitance including jig and probe capacitance (see Chapter “AC characteristics”).
RT = Termination resistance should be equal to the output impedance Z0 of the pulse generator.
