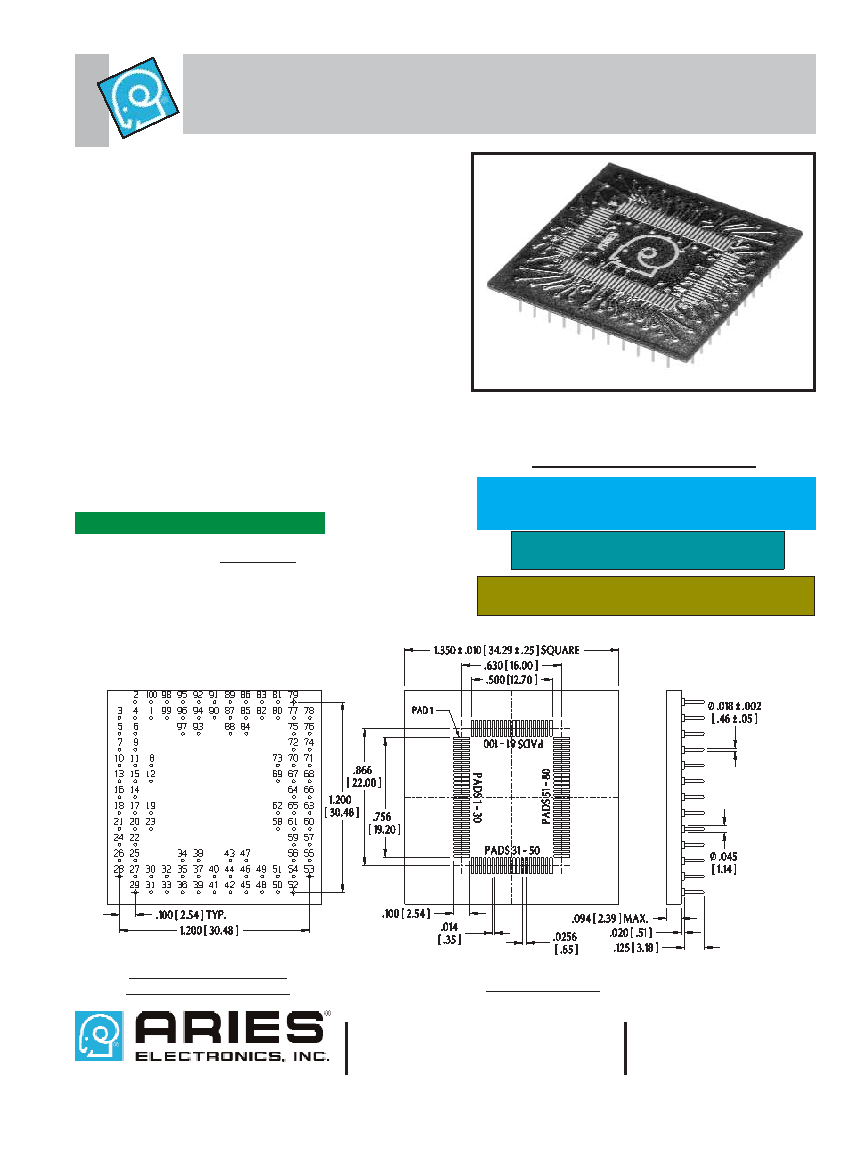

Part No. 96-100M65 - QFP to PGA Adapter
for EIAJ 100 Position, .0256 [.65] Pitch
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
FEATURES:
Convert surface mount QFP packages to a 13 x 13 PGA foot-
print.
Reduce costs by using less expensive QFP packages to
replace PGA footprints in existing designs.
Pins are mechanically fastened and soldered to board using
Aries’ patented process, creating a reliable electrical connec-
tion and rugged contact.
Consult factory for panelized form or for mounting of consigned
chips.
SPECIFICATIONS:
Adapter body is FR-4 with 1 ounce minimum Copper traces.
Pads are bare Copper protected with Entek
by Enthone or
Omikron
white tin to eliminate coplanarity concerns and solder
bridges associated with hot air solder leveling.
Pins are Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
Pin plating is 200
μ [5.08μm] min. Tin per MIL-T-10727 Type 1
or Tin/Lead 90/10 MIL-P-81728 over 100
μ [2.54μm] Nickel per
QQ-N-290.
Operating temperature=221°F [105°C].
MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 ± .003 [.71 ± .08] dia.
Will plug into standard PGA sockets.
ORDERING INFORMATION
Tolerances:
Row-to-row:
± .003 [± .08]
Pin-to-pin:
± .003 [± .08] non-cumulative
All others:
± .005 [.13] unless otherwise specified
Specify Part No. 96-100M65
-or-
96-100M65-P for panelized form when ordering
X-RAY VIEW TOP SIDE
QFP PAD ASSIGNMENT
TOP (QFP) SIDE
ALL DIMENSIONS: INCHES [MILLIMETERS]
Specify Part Number 100-PGM13071-30
for wire wrap PGA socket
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18019
REV.F
PGA Footprints 13069 and 13114
can be used with this C-A-C Adapter
