AD1866–Digital Circuit Considerations
REV. 0
–8–
L
S
B
M
S
B
M
S
B
L
S
B
CLK
DL
DR
LL
LR

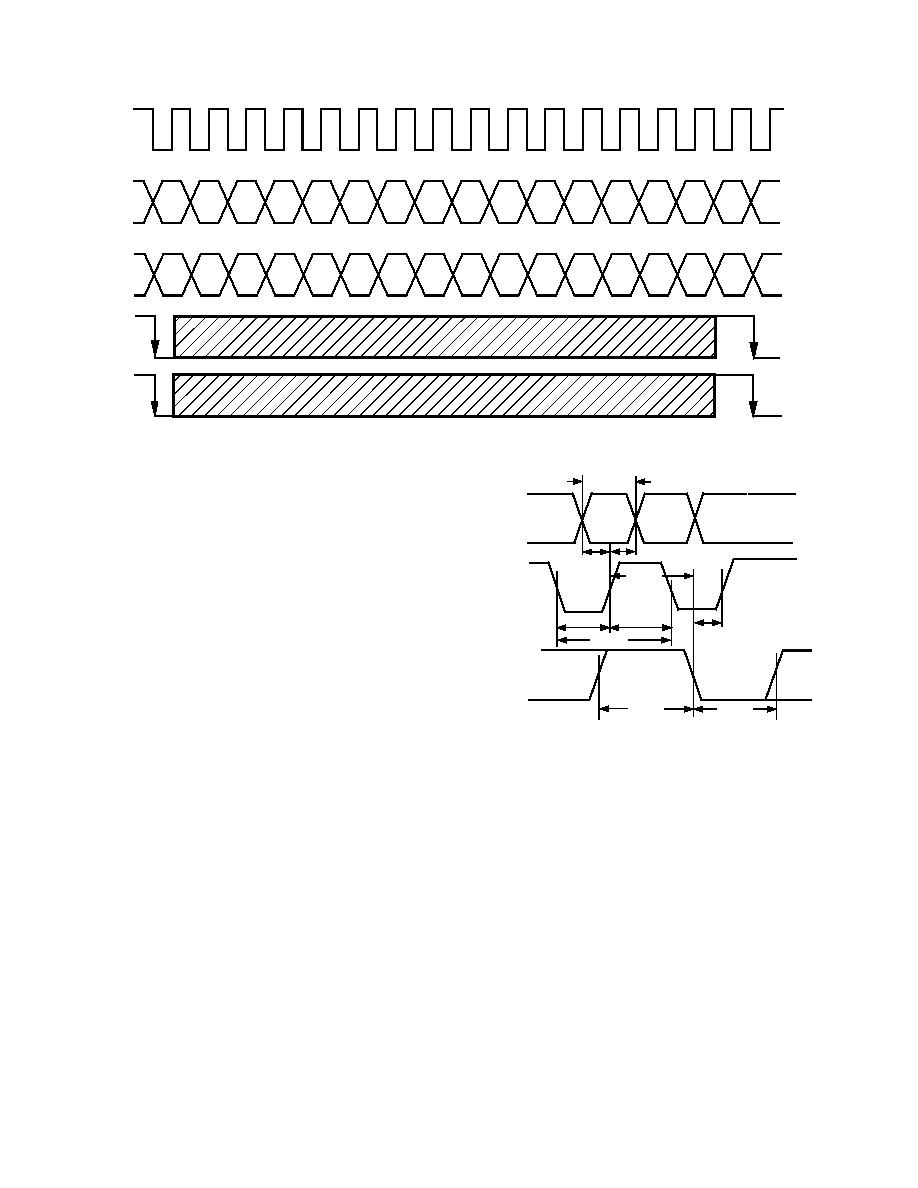

Figure 9. AD1866 Control Signals
INPUT DATA
The digital input port of the AD1866 employs five signals: Data
Left (DL), Data Right (DR), Latch Left (LL), Latch Right
(LR), and Clock (CLK). DL and DR are the serial inputs for
the left and right DACs, respectively. Input data bits are clocked
into the input register on the rising edge of CLK. The falling
edges of LL and LR cause the last 16 bits which were clocked
into the serial registers to be shifted into the DACs, thereby up-
dating the respective DAC outputs. For systems using only a
single latch signal, LL and LR may be connected together. For
systems using only one DATA signal, DR and DL may be con-
nected together. Data is transmitted to the AD1866 in a bit
stream composed of 16-bit words with a serial, twos comple-
ment, MSB first format. Left and right channels share the Clock
(CLK) signal.
Figure 9 illustrates the general signal requirements for data
transfer for the AD1866.
TIMING
Figure 10 illustrates the specific timing requirements that must
be met in order for the data transfer to be accomplished prop-
erly. The input pins of the AD1866 are both TTL and +5 V
CMOS compatible.
>30ns
>10ns
>30ns
>15ns
>40ns
DR/DL
CLK
LR/LL
>67ns
>40ns
Figure 10. AD1866 Input Signal Timing
The maximum clock rate of the AD1866 is specified to be at
least 13.5 MHz. This clock rate allows data transfer rates of 2
×,
4
×, 8×, and 16× F
S (where FS equals 44.1 kHz). The applica-
tions section of this data sheet contains additional guidelines for
using the AD1866.
