- 您現在的位置：買賣IC網 > PDF目錄2029 > APS3008S-R (PUI Audio, Inc.)SPEAKER PIEZO 20X30MM PDF資料下載
參數資料
| 型號： | APS3008S-R |
| 廠商： | PUI Audio, Inc. |
| 文件頁數： | 1/1頁 |
| 文件大小： | 0K |
| 描述： | SPEAKER PIEZO 20X30MM |
| 標準包裝： | 1 |
| 系列： | APS |
| 類型： | 壓電 |
| 頻率范圍： | 300Hz ~ 20kHz |
| 聲壓級： | 80dB @ 5V，10cm |
| 高度： | 1.50mm |
| 尺寸/尺寸： | 30.00mm 直徑 x 20.00mm H |
| 形狀： | 矩形 |
| 端子： | 焊盤 |
| 其它名稱： | 668-1266 |

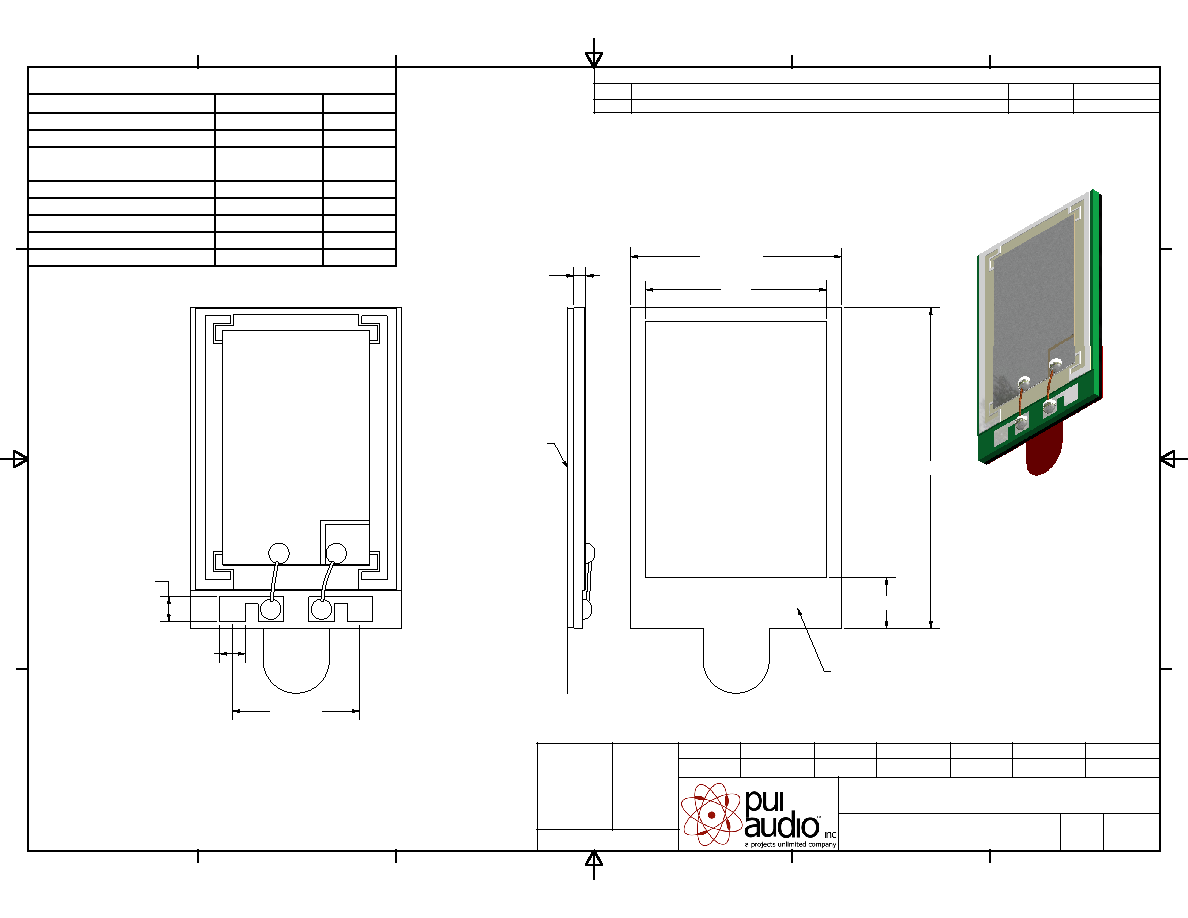

Speaker
APS2509S-T-R
J.D.
M.L.
B.R.
6/2/2011
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
6/2/2011
Date
6/15/2011
Date
6/15/2011
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
APS2509S-T-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
6/2/2011
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
5
Vrms
MAX INPUT POWER
16
Vp-p
OUTPUT SPL @ 5Vrms/10cm
(AT 1.0, 1.5, 2.0, 2.5 kHz)
75
dBA
RESONANT FREQUENCY
900 ± 20%
Hz
FREQUENCY RANGE
300 ~ 20,000
Hz
HOUSING MATERIAL
PCB
-
OPERATING TEMPERATURE
-20 ~ +70
°C
WEIGHT
0.64
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
2003, Projects Unlimited Inc.
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
10
0.1
2
1.1 Max.
16.6
0.1
14.2
4
0.1
25.2
0.1
FIXED LAYER
THICKNESS 0.5 mm
DOUBLE
SIDED TAPE
+
_
