51

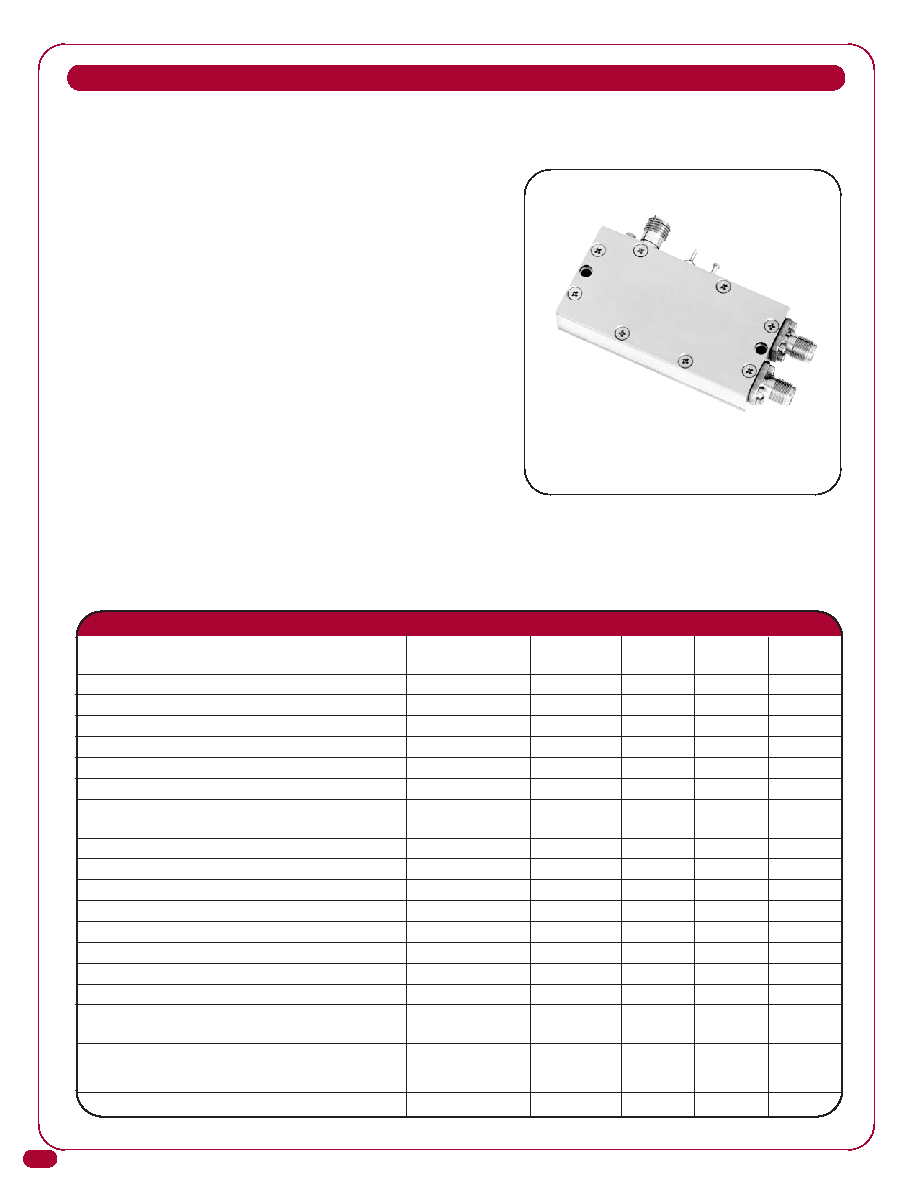

2 TO 4 GHz LOW-NOISE RECEIVER FRONT ENDS
MODELS: AR0204LC2A, AR0204LC2B AND AR0204LC2C
FEATURES
RF/LO Coverage ......... 2 to 4 GHz
Conversion Gain.......... 30 dB Typical
Noise Figure............... 1.5 dB Maximum
ELECTRICAL SPECIFICATIONS
INPUT PARAMETERS
CONDITION
UNITS
MIN.
TYP.
MAX.
RF frequency range
GHz
2
4
RF VSWR (RF = -10 dBm, LO = +10 dBm)
Ratio
2.5:1
LO frequency range
GHz
2
4
LO power range
dBm
+10
+13
LO VSWR (RF = -10 dBm, LO = +10 dBm)
Ratio
2.5:1
DC power
+15 VDC
mA
150
TRANSFER CHARACTERISTICS
CONDITION
UNITS
MIN.
TYP.
MAX.
Conversion gain (Note 1)
dB
27
30
Single-sideband noise figure
@ 25°C
dB
1
1.5
Image rejection (Note 1)
dB
20
23
LO-to-RF isolation
dB
40
LO-to-IF isolation
dB
25
RF to IF isolation
dB
25
Output power at 1 dB compression
dBm
6
Output two-tone third-order intercept point
dBm
16
OUTPUT PARAMETERS
CONDITION
UNITS
MIN.
TYP.
MAX.
IF frequency range (Note 2)
AR0204LC2A
MHz
20
40
AR0204LC2B
MHz
40
80
AR0204LC2C
MHz
100
200
IF VSWR (IF = -10 dBm, LO = +10 dBm)
Ratio
2:1
MITEQ’s AR model series offers state-of-the-art low-noise amplifiers integrated with our ultra-small image
rejection mixers to provide a complete receiver front-end assembly. This device comes in a nonhermetic
housing, however a hermetically-sealed housing is available for extreme environmental conditions.
