| 型號： | ARHNR-1605GS |
| 廠商： | ALLIED COMPONENTS INTERNATIONAL |
| 元件分類： | 脈沖/數據通信變壓器 |
| 英文描述： | DATACOM TRANSFORMER FOR 10/100 BASE-T; ETHERNET APPLICATION(S) |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 361K |
| 代理商： | ARHNR-1605GS |

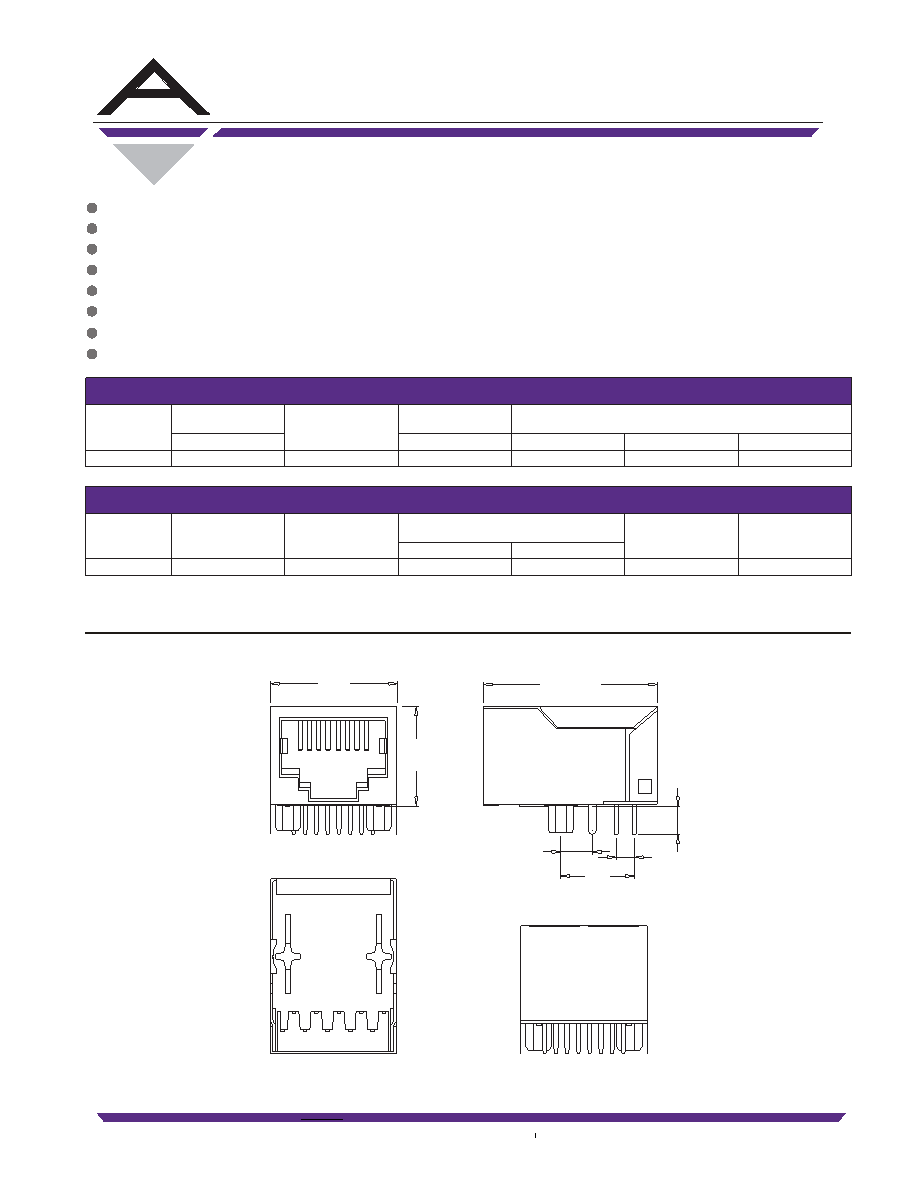

15
ALLIED COMPONENTS INTERNATIONAL
714-665-1140
www.alliedcomponents.com
RoHS
01/07/11
All specifications subject to change without notice.
Unless otherwise specified all tolerances are:
±0.25 in mm
MECHANICAL
10/100 Base-T Ethernet Application
Meets IEEE 802.3 & ANSI X 3.263 standards
Impedance: 100OHMS
Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
Always EU RoHS/ELV Compliant, wave solder capable to 265°C
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Single Port RJ45 CONNECTOR
WITH INTEGRATED MAGNETICS,TAB DOWN
ARHNR-1605GS
Rise Time: 2.5 nano-seconds from 10 to 90 percent
Standard operating temp: 0C to +70C
ALLIED
ARHNR-1605GS
YYWW
Electrical Specications @ 25°C
Part
Number
OCL(uH Min)
@ 100kHz, 0.1V
Turns Ratio
chip: cable
(±3%)
Insertion Loss
(dB Max)
Return Loss
(dB Min)
With 8mA DC Bias
0.5-100MHz
0.5-30MHz
30.1-60MHz
60.1-80MHz
ARHNR-1605GS
350
1CT:1CT
1.1
18
18-20*log(f/30)
12
Electrical Specications @ 25°C
Part
Number
EMI
Fingers
LED
(L/R)
Cross Talk
(dB Min)
CMRR
(dB Min)
0.5-100MHz
HI-POT
(VDC)
0.5-40MHz
40.1-100MHz
ARHNR-1605GS
NO
35
33-20*log(f/50)
30
2250
2.54
13
.5
0
8.89
3.05
21.60 Max
15.90
3.
5
Back View
P1
P8
