參數資料
| 型號： | ASK-2-KK81 |
| 廠商： | MINI-CIRCUITS |
| 元件分類： | 混頻器 |
| 英文描述： | 1 MHz - 1000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9.8 dB CONVERSION LOSS-MAX |
| 封裝： | CASE KK81, 6 PIN |
| 文件頁數： | 2/2頁 |
| 文件大?。?/td> | 300K |
| 代理商： | ASK-2-KK81 |
ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 The Design Engineers Search Engine
Provides ACTUAL Data Instantly at
Notes: 1. Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet. 2. Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. 3. The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
For detailed performance specs
& shopping online see web site
minicircuits.com
IF/RF MICROWAVE COMPONENTS
Performance Charts
Page 2 of 2

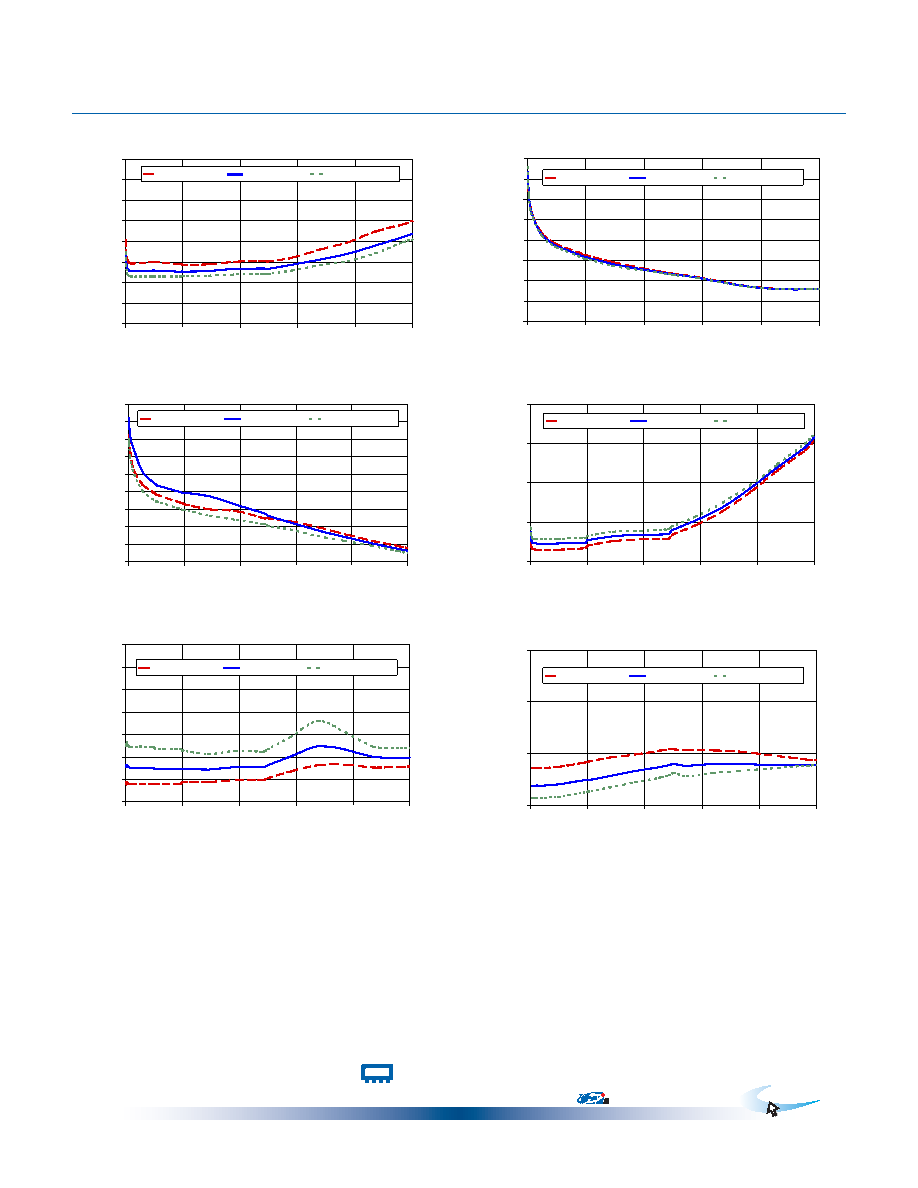

ASK-2-KK81
CONVERSION LOSS
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
0
200
400
600
800
1000
FREQUENCY (MHz)
C
O
N
V
E
R
S
IO
N
LO
S
(d
B
)
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
at IF Freq of 30 MHz
ASK-2-KK81
L-R ISOLATION
10
20
30
40
50
60
70
80
90
0
200
400
600
800
1000
FREQUENCY (MHz)
IS
O
LA
T
IO
N
(d
B
)
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
ASK-2-KK81
RF VSWR
1.0
1.5
2.0
2.5
3.0
0
200
400
600
800
1000
FREQUENCY (MHz)
V
S
W
R
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
ASK-2-KK81
L-I ISOLATION
10
20
30
40
50
60
70
80
90
100
0
200
400
600
800
1000
FREQUENCY (MHz)
IS
O
LA
T
IO
N
(d
B
)
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
ASK-2-KK81
LO VSWR
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
0
200
400
600
800
1000
FREQUENCY (MHz)
V
S
W
R
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
ASK-2-KK81
IF VSWR
1.0
1.5
2.0
2.5
0
200
400
600
800
1000
FREQUENCY (MHz)
V
S
W
R
LO=+4 dBm
LO=+7 dBm
LO=+10 dBm
ASK-2-KK81
ASK-2-KK81+
