參數資料
型號： AST-02308MR-R
廠商： PUI Audio, Inc.
文件頁數： 1/1頁
文件大?。?/td> 0K
描述： SPEAKER 8OHM .1W 75DB 23MM PCMT

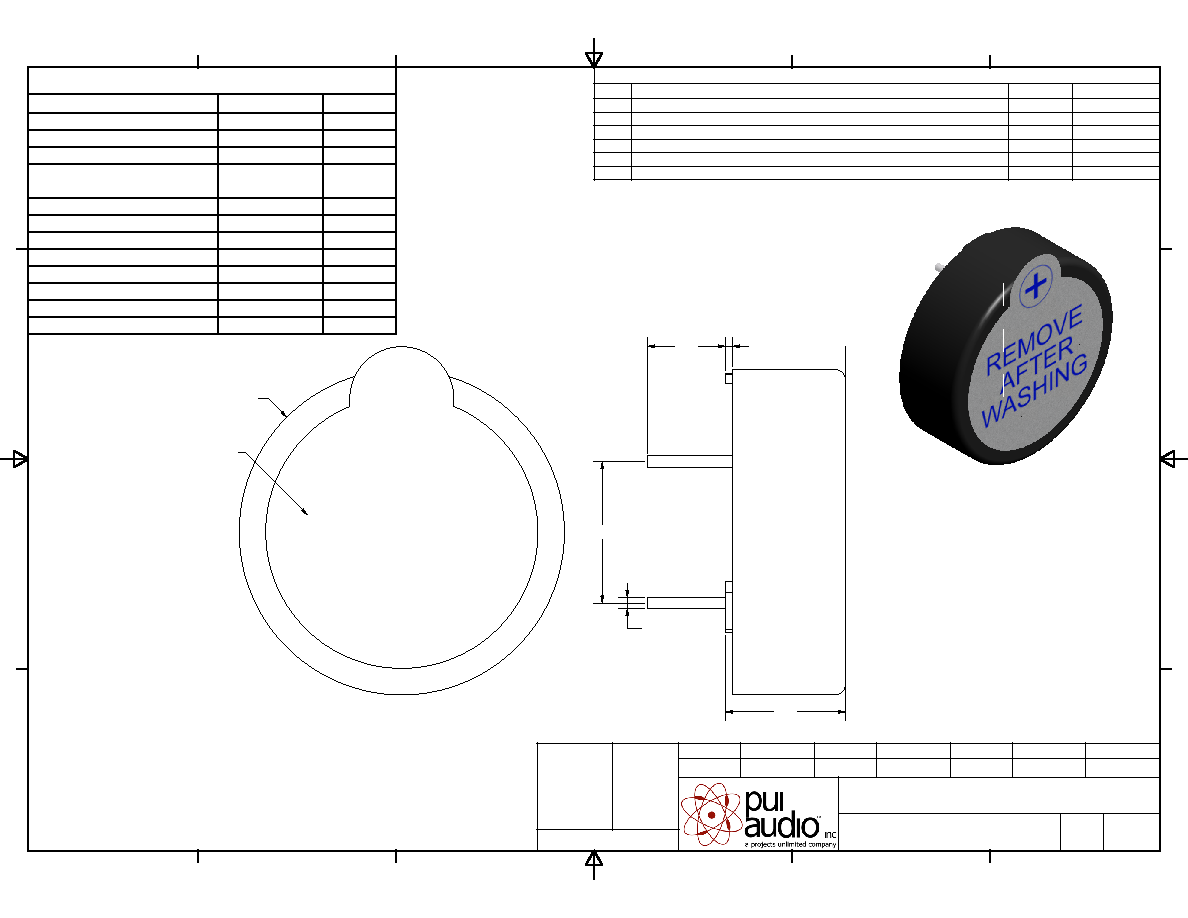

產品目錄繪圖： AST-02308MR-R Side
AST-02308MR-R Top
3D 型號： AST-02308MR-R.igs
標準包裝： 1
系列： AST
類型： 磁性
頻率范圍： 600Hz ~ 20kHz
阻抗： 8 歐姆
聲壓級： 75dB
功率 - 額定： 0.1W
功率 - 最大： 0.2W
高度： 8.50mm
尺寸/尺寸： 23.00mm 直徑
形狀： 圓形
端子： PC 引腳
材料 - 錐體： 聚酯薄膜
材料 - 磁體： 鐵氧體
產品目錄頁面： 2655 (CN2011-ZH PDF)
其它名稱： 668-1135
Speaker
AST-02308MR-R
B.R.
E.P.
2/25/2009
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
4/19/2006
Date
4/19/2006
Date
4/19/2006
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
AST-02308MR-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
4/19/2006
A
REVISED POWER RATINGS
11/19/2007
B.R.
B
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
2/25/2009
B.R.
C
ADDED NOTE 4
1/5/2011
B.R.
D
REVISED MAGNET MATERIAL
6/28/2011
C.W.
E
REVISED HOUSING MATERIAL
12/23/2011
M.L.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
0.1
W
MAX INPUT POWER
0.2
W
IMPEDANCE
8 ± 20%
OHM
OUTPUT SPL @ 0.1W/0.5M
(AT 1.2, 1.5, 1.6, 1.8 kHz)
75 ± 3
dBA
DISTORTION (MAX.)
5%
-
RESONANT FREQUENCY
1,500 ± 20%
Hz
FREQUENCY RANGE
600 ~ 20,000
Hz
HOUSING MATERIAL
ABS
-
CONE MATERIAL
MYLAR
-
MAGNET MATERIAL
NdFeB
-
OPERATING TEMPERATURE
-20 ~ +60
°C
WEIGHT
3.2
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
4. HAND SOLDER ONLY.
23
8.5
0.5
5.5
10
0.8 (2)
REMOVABLE
WASH TAB
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
