參數資料
| 型號： | AT-1031-TT-R |
| 廠商： | PUI Audio, Inc. |
| 文件頁數： | 1/1頁 |
| 文件大?。?/td> | 0K |
| 描述： | BUZZER MAGN 1.5V 3.1KHZ PCB |
| 3D 型號： | AT-1031-TT-R.igs |
| 標準包裝： | 1 |
| 系列： | AT |
| 驅動器電路： | 傳感器，外部驅動 |
| 技術： | 磁性 |
| 輸入類型： | 峰值-峰值信號 |
| 電壓 - 額定： | 1.5Vp-p |
| 電壓范圍： | 1 ~ 3V |
| 頻率： | 3.1kHz |
| 工作模式： | 連續 |
| 聲壓級： | 85dB @ 1.5V，10cm |
| 電流 - 電源： | 80mA |
| 可清洗： | 無 |
| 安裝類型： | 通孔 |
| 端子： | PC 引腳 |
| 尺寸/尺寸： | 圓形 - 9.60mm 直徑 x 6.50mm H |
| 包裝： | 托盤 |
| 工作溫度： | -20°C ~ 85°C |

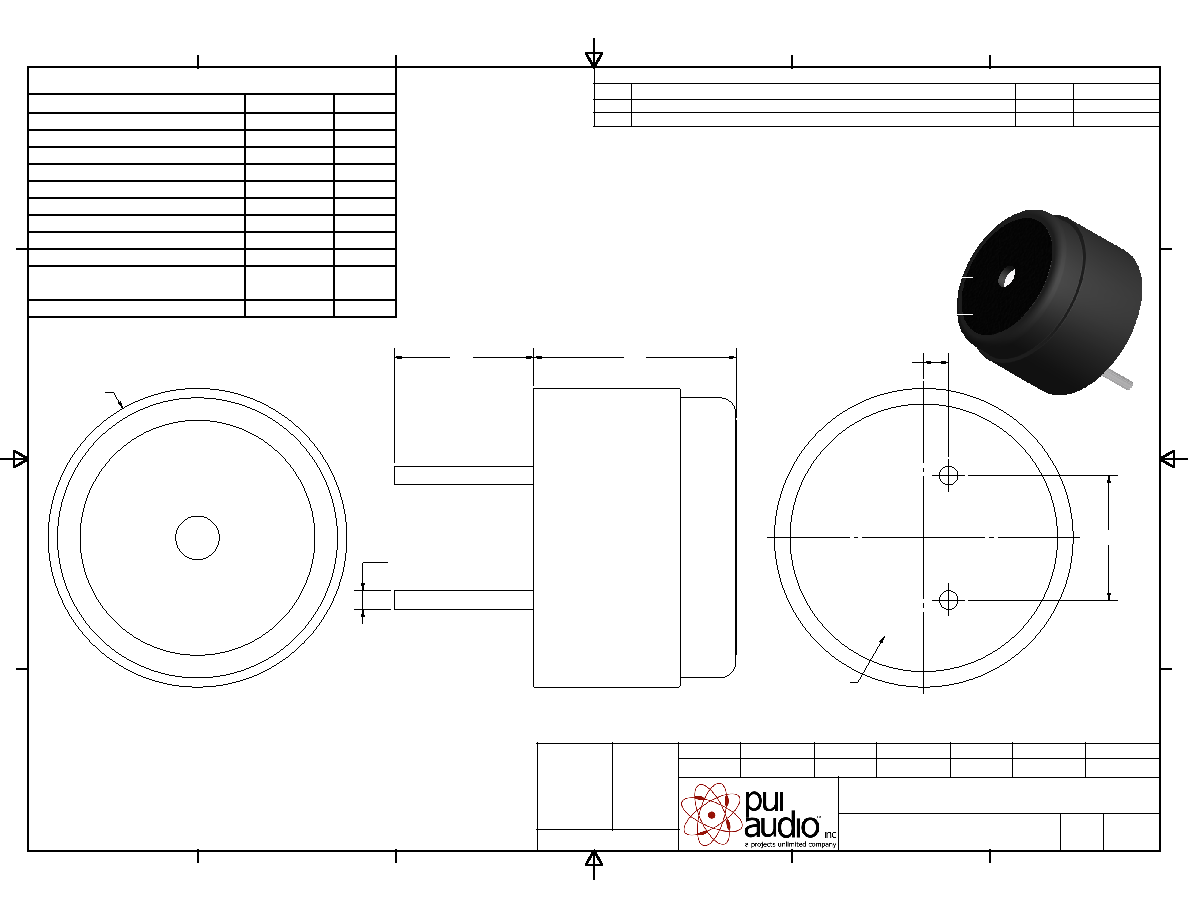

Transducer (Electro-Mech)
AT-1031-TT-R
J.A.F.
E.P.
B.R.
3/31/2008
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
9/30/2005
Date
9/30/2005
Date
9/30/2005
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
AT-1031-TT-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE APPROVED
-
RELEASED FROM ENGINEERING
9/30/2005
A
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
3/31/2008
B.R.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED VOLTAGE (SQUARE WAVE)
1.5
Vp-p
OPERATING VOLTAGE RANGE
1 ~ 3
Vp-p
RATED CURRENT (MAX)
80
mA
COIL RESISTANCE
5.5 ± 1
OHM
MINIMUM SPL @ 10 CM
85
dBA
RESONANT FREQUENCY
3,100 ± 500
Hz
OPERATING TEMPERATURE
-20 ~ +85
°C
STORAGE TEMPERATURE
-30 ~ +85
°C
HOUSING MATERIAL
NORYL
-
TERMINAL MATERIAL
Sn PLATED
COPPER
-
WEIGHT
1
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
9.6
n`0.2
0.8
`0.2
4
`0.2
0.6
n`0.05
6.5
4.5
EPOXY
POTTING
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
