Voltage Variable Absorptive Attenuator
30 dB, 0.5-2.0 GHz
AT-110
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
North America Tel: 800.366.2266 / Fax: 978.366.2266
Europe Tel: 44.1908.574.200 / Fax: 44.1908.574.300
Asia/Pacific Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.comfor additional data sheets and product information.
V3
3

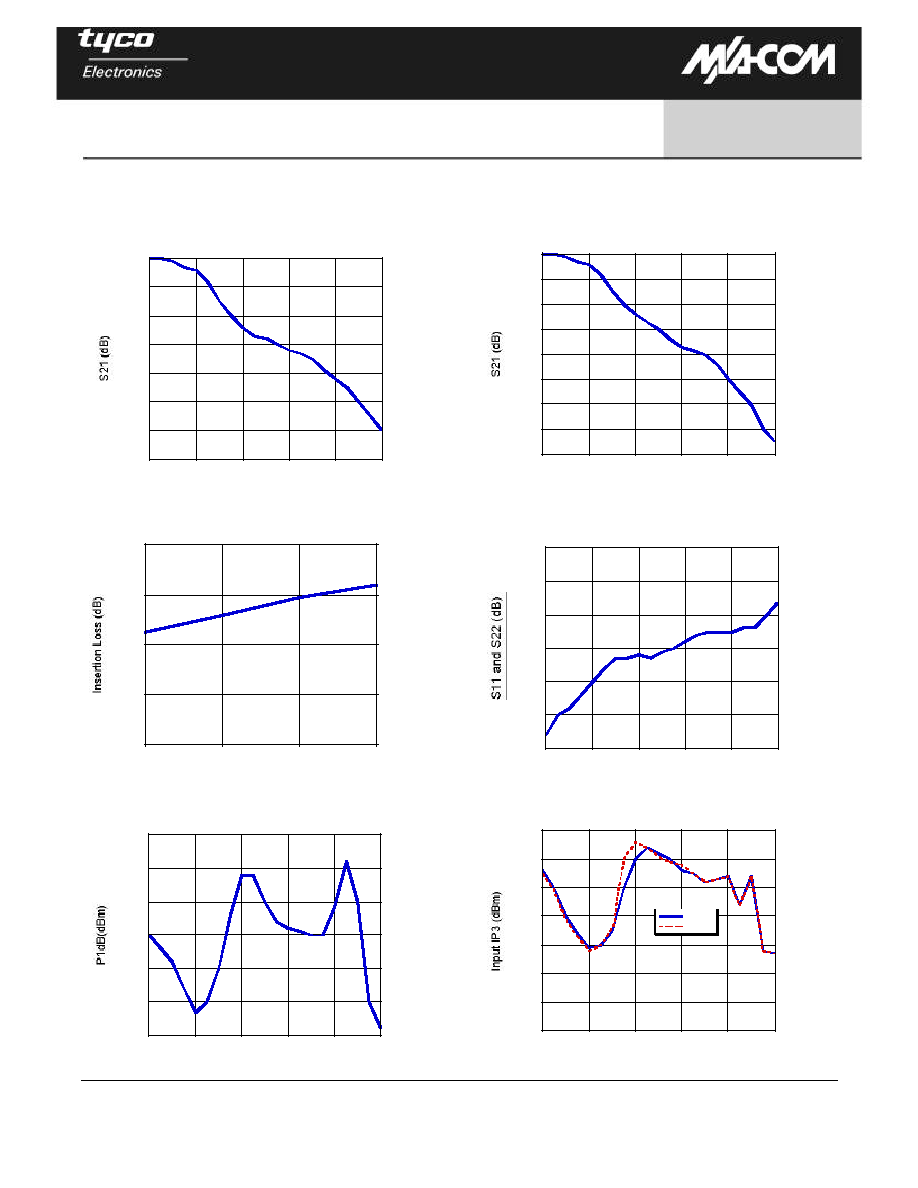

Typical Performance Curves
Relative Attenuation vs. Control Voltage
@ 25°C, F = 1800 MHz
Insertion Loss vs. Frequency
Return Loss vs. Control Voltage
@ +25°C, F = 900 MHz
Attenuation vs. Control Voltage
@ +25°C, F = 900 MHz
IP3 vs. Control Voltage
1 dB Compression vs. Control Voltage
@ +25°C, F = 900 MHz
-35
-30
-25
-20
-15
-10
-5
0
1
2
3
4
5
Control Voltage (V)
-40
-35
-30
-25
-20
-15
-10
-5
0
1
2
3
4
5
Control Voltage (V)
0
1
2
3
4
0.5
1.0
1.5
2.0
Frequency (MHz)
-30
-25
-20
-15
-10
-5
0
1
2
3
4
5
Control Voltage (V)
0
5
10
15
20
25
30
0
1
2
3
4
5
Control Voltage (dBm)
0
5
10
15
20
25
30
35
0
1
2
3
4
5
IIP3 400
IIP3 900
Control Voltage (dBm)
