Skyworks Solutions, Inc. Phone [781] 376-3000 Fax [781] 376-3100 sales@skyworksinc.com www.skyworksinc.com
200264 Rev. A Skyworks Proprietary and Confidential Information Products and product information are subject to change without notice. February 28, 2007
1

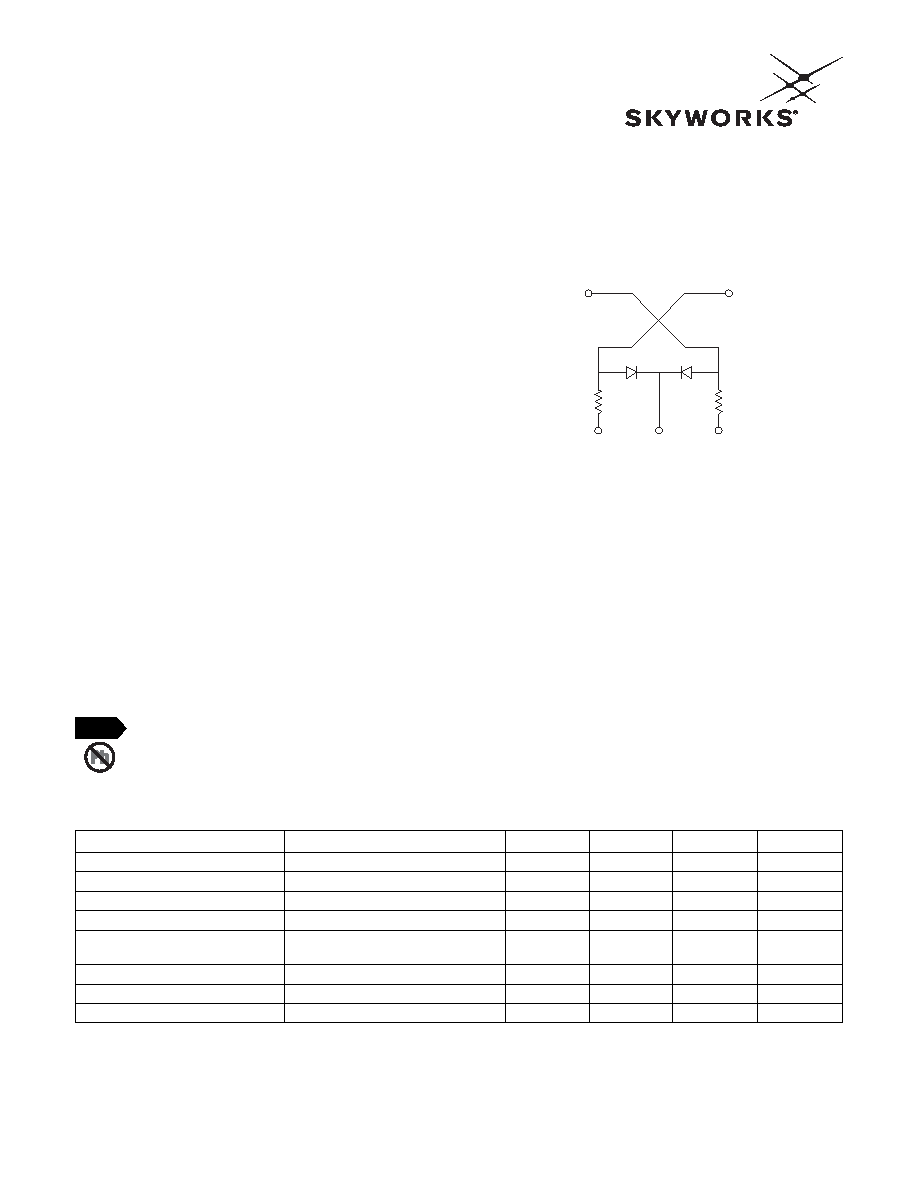

AV131-315, AV131-315LF: HIP3 Variable Attenuator
for AMPS and GSM Base Stations
DATA SHEET
Features
●
23 dB attenuation range
●
1.5 dB insertion loss, 1.5 SWR
●
0–12 V control voltage
●
43 dBm IP3
●
Small footprint LGA package
●
Designed for AMPS and GSM base stations
●
Available lead (Pb)-free MSL-1 @ 240 °C per JEDEC J-STD-020
Description
The AV131-315 is a voltage controlled variable attenuator from
Skyworks’ series of HIP3 components. It is specifically
designed and specified for use as a wide dynamic range low
distortion attenuator for AMPS and GSM base station applications
centered at 881.5 MHz and 942.5 MHz. The AV131-315
employs a monolithic quadrature hybrid and a pair of silicon
PIN diodes to achieve the specified low distortion performance.
It operates from 0–12 V at 1.6 mA typical control current at
maximum attenuation. The AV131-315 is packaged in a
small outline LGA (Land Grid Array) surface mount package with
the internal elements affixed to an organic BT substrate.
Parameter
Condition
Min.
Typ.
Max.
Unit
AMPS frequency range (BW)
869
894
MHz
GSM frequency range (BW)
925
960
MHz
Control voltage (CV) range
0
12
V
Insertion loss in BW
CV = 0 V
1.5
dB
Attenuation range
At FO,CV = 10 V
18
22
dB
At FO,CV = 12 V
23
–
dB
VSWR in BW
1.5
IP3
900/905 MHz, CV = 0 V
43
dBm
IM3
8 dBm
-70
dBc
Electrical Specifications at 25 °C
Skyworks offers lead (Pb)-free, RoHS (Restriction of
Hazardous Substances)-compliant packaging.
NEW
