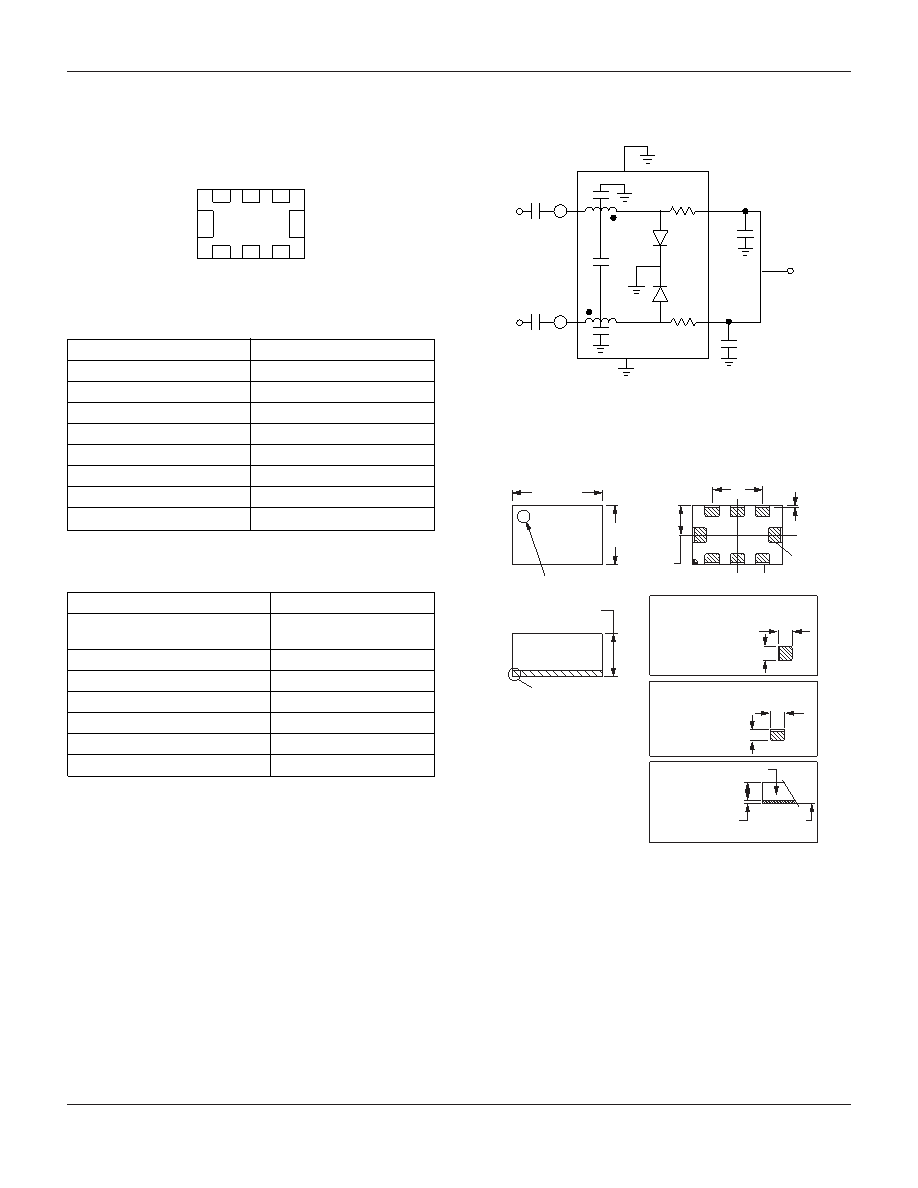

HIP3 Variable Attenuator for UMTS Base Stations
AV133-315
Alpha Industries, Inc. [978] 241-7000
Fax [978] 241-7906 Email sales@alphaind.com www.alphaind.com
3
Specifications subject to change without notice. 5/02A
-315
0.091 (2.32 mm)
± 0.003 (0.091 mm)
0.193 (4.90 mm)
± 0.004 (0.10 mm)
0.126
(3.20 mm)
± 0.004
(0.10 mm)
L
C
L
C
PIN 1 INDICATOR
2.740
± (0.100 mm)
0.063
(1.60 mm)
8X 0.004
(0.100 mm)
± 0.001
(0.02 mm)
0.030 (0.775 mm)
± 0.002 (0.050 mm)
0.031 (0.800 mm)
± 0.002 (0.050 mm)
DETAIL
A
DETAIL A
DETAIL C
DETAIL B
0.024 (0.600 mm)
± 0.002 (0.050 mm)
0.031 (0.800 mm)
± 0.002 (0.050 mm)
DETAIL B
DETAIL C
MOLD
SEATING
PLANE
0.078 (2.00 mm)
± 0.002 (0.05 mm)
0.013 (0.32 mm)
± 0.002 (0.4 mm)
Vcontrol
CONTROL
VOLTAGE
10 pF
Vcontrol
RF
IN/OUT
RF
IN/OUT
10 pF
Connection Diagram
Characteristic
Value
RF Input Power
0.5 W CW, 4 W @ 12.5%
Duty Cycle
Control Voltage
15 V
Control Current
50 mA Each Diode
Operating Temperature
-40 to +85°C
Storage Temperature
-40 to +85°C
Maximum Reverse Diode Voltage
-10 V
Electrostatic Discharge
+125 V
Absolute Maximum Ratings
Note: Operating this device above any of these parameters may cause
irreversible damage.
Terminal No.
Terminal Name
A1
IN/OUT
A2
GND
A3
IN/OUT
B1
GND
B3
GND
C1
Vcontrol
C2
GND
C3
Vcontrol
B3
B1
C1
C2
C3
A1
A2
A3
IN/OUT
GND
IN/OUT
GND
Vcontrol
GND
AV133
Pin Out (Bottom View)
