SPECIFICATIONS
Model:
AY-F04S
Connectors:
Type N, Female
TX Frequency Range:
851-866 MHz
Impedance:
50 OHMS Nominal
Bandwidth:
15 MHz
Input/Output Ports:
4-TX Ports/2-ANT Output P
orts
Insertion Loss, TX To ANT:
3.8 Db Maxi mum
Isolation Minimum TX To TX: 65 Db
Isolation Minimum ANT to TX: 55 dB
3
rd Ordered Intermodulation
With 2 150 Watt CW Carriers: Better than -70d Bc
Attenuation Minimum at 2
nd
Harmonic (1702-1732 Nhz):
55 dB
Continuous Input Power:
350 Watts Peak, 70 Watts CW
Maxi mum Per TX
VSWR Maximum, All Ports:
<1.25:1
Reflected Power Maximum
Allowable From ANT.:
300 Watts Peak, 60 Watts CW
Channel Separation For
Specifications Given:
25 KHz
Temperature Range:
-30-+50 Degrees C
Mounting Height, Width,
2.2"Maxi mum x 10.0" Maxi mum
Length:
x 7.1" Maxi mum
4-TX/1-ANT. COMBINERS
MODELA Y-F05S
SPECIFICATIONS
Model:
AY-F05S
Connectors:
Type N, Female
TX Frequency Range:
851-866 MHz
Impedance:
50 OHMS Nominal
Bandwidth:
15 MHz
Input/Output Ports:
4-TX Ports/1-ANT Output P
orts
Insertion Loss, TX To ANT:
7.0 Db Maxi mum
Isolation Minimum TX To TX: 65 Db
Isolation Minimum ANT to TX: 55 dB
3
rd Ordered Intermodulation
With 2 150 Watt CW Carriers: Bette rThan -70d Bc
Attenuation Minimum at 2
nd
Harmonic (1702-1732 Nhz):
55 dB
Continuous Input Power:
350 Watts Peak, 70 Watts CW
Maxi mum Per TX
VSWR Maximum, All Ports:
<1.25:1
Reflected Power Maximum
Allowable From ANT.:
300 Watts Peak, 60 Watts CW
Channel Separation For
Specifications Given:
25 KHz
Temperature Range:
-30 - +50 Degrees C
Mounting Height, Width,
2.2"Maxi mum x 10.0" Maxi mum
Length:
x 7.1" Maxi mum

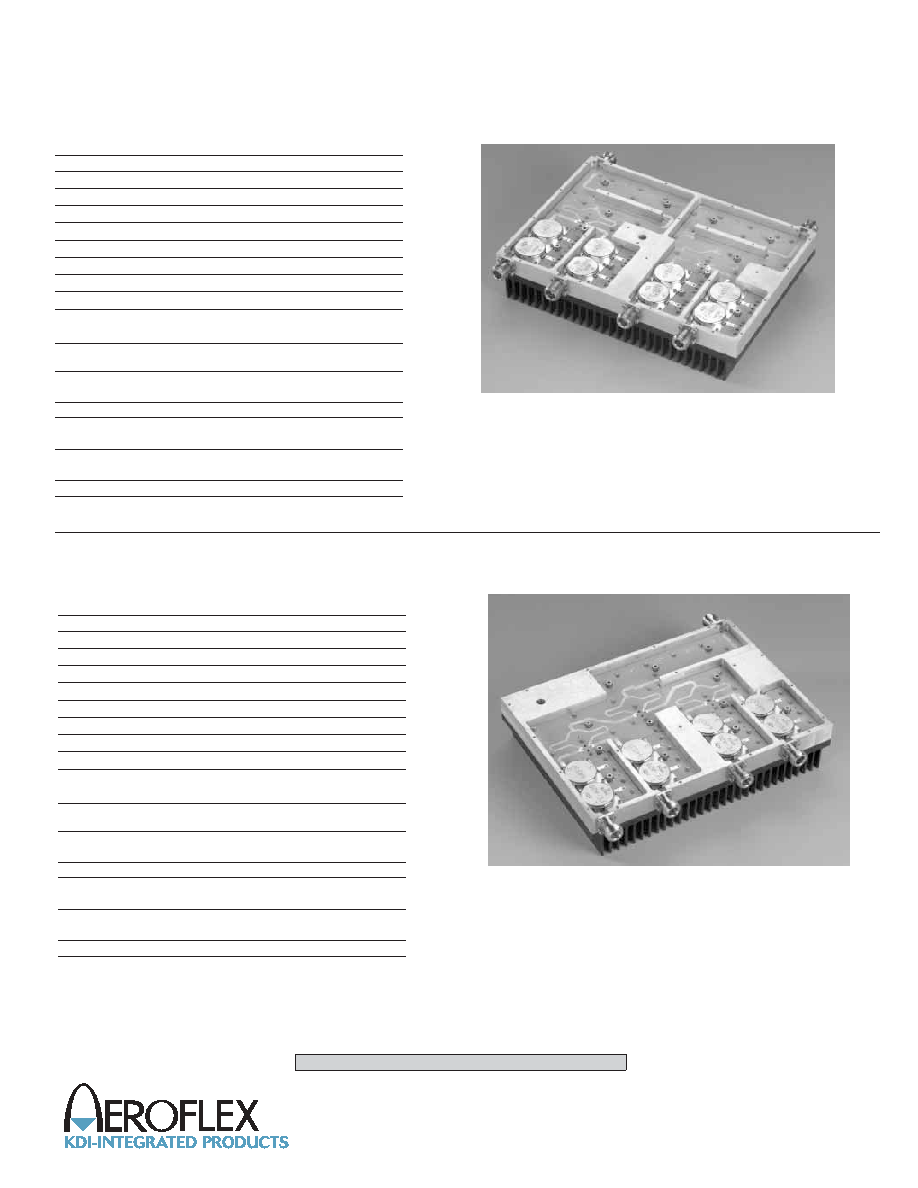

MEDIUM-HIGH POWER CELLULAR
4-TX/2-ANT. COMBINERS
MODELA Y-F04S
60/70 WATTS PER CHANNEL SIMULTANEOUS INPUT POWER
KEY: Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]
8-10-07
60 South Jefferson Road, Whippany, NJ 07981
Tel: 973-887-8100 Fax: 973-884-0445
email: sales@
aeroflex-kdi.com
See us on the web @ www.
aeroflex-kdi.com
