Description:
Aeroflex introduces a new series of high power PIN
diode switch assemblies for use as antenna horizontal or
vertical polarization for radio applications in the 2 GHz
range, up to 20 GHz.
The switch assemblies are SPDT configuration and
accepts a transceiver input, and connects one or two
antenna outputs, either one at a time, or both simultane-
ously, with the desired switchable 90 degree phase off-
sets.

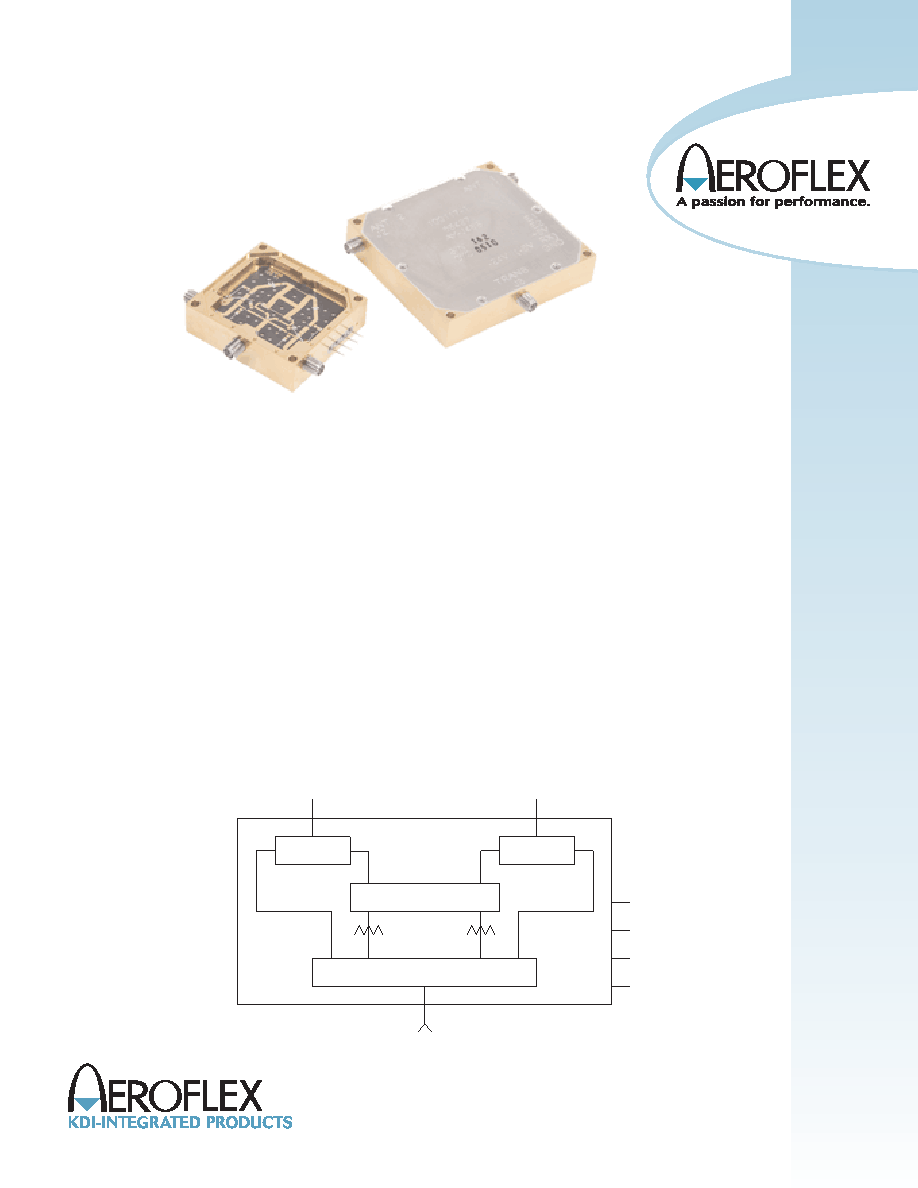

The Model AY-J100 shown operates in the 2 GHz band,
with a through path transmitter loss of only 1.3dB maxi-
mum, while providing isolation of 20 dB typical with a
power handling capability of 10 Watts CW minimum. The
input VSWR is 1.5 Maximum in any of the "on" states.
The phase accuracy is 90 +/- 5 degrees from input to
either output.
AY-J100 & AY-J101
PIN Diode Switch Assembly
Features:
Multiple switch paths and connection
options, for vertical/horizontal antenna
polarization
High power-at least 10 Watts
Low noise
Low loss and high isolation
SP2T
SP4T
RCP
LCP
THRU 1
TO ANTENNA 2
TO ANTENNA 1
FROM TRANS./RECEIVER
THRU 2
E1
E2
+5V
-24V
(-5V RX)
VERTICAL
HORIZONTAL
SP2T
90° HYBRID
Switching speed is 3
μS Maximum and the
unit operates with +5Vdc at 300mA and
-24Vdc@10mA, plus TTL logic.
The Model AY-J100 is provided with SMA
female connectors, solder feed through pins,
in an overall package size of less than
3x3x0.6
inches
intended
for
outdoor
applications.
Revision Date: 4/5/05
