CONT ACT S
Arrangement
SPST (1 Form A)
Ratings
Resistive load:
Max. switched power: 600 W or 6925 VA
Max. switched current: 25 A
Max. switched voltage: 150 VDC* or 400 VAC
*
Note: If switching voltage is greater than 30VDC,
special precautions must be taken.
Please contact the factory.
Rated Load
UL, CUR
25 A at 277 VAC resistive 100k cycles [1] [2]
1 HP at 120 VAC, 100k cycles [1] [2]
2 HP at 240 VAC, 100k cycles [2]
2 HP at 240 VAC, 30k cycles [1]
TüV
25 A at 250 VAC resistive [1]
Material
Silver cadmium oxide [1] or silver tin oxide [2]
Resistance
< 50 milliohms initially
(24 V, 1 A voltage drop method)
GENERAL DAT A
Life Expectancy
Minimum operations
2 x 10
6
1 x 10
5
at 25 A 250 VAC Res.
Mechanical
Electrical
Operate Time (typical)
20 ms at nominal coil voltage
Release Time (typical)
10 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
(at sea level for 1 min.)
1500 Vrms between open contacts
10,000 V surge contact to coil
4500 Vrms coil to contact
Insulation
Resistance
1000 megohms min. at 20°C, 500 VDC,
50% RH
Dropout
Greater than 10% of nominal coil voltage
Ambient Temperature
Operating
Storage
At nominal coil voltage
-40°C (-40°F) to 70°C (158°F)
-40°C (-40°F) to 105°C (221°F)
Vibration
0.062" (1.5 mm) DA at 10–55 Hz
Shock
Operating
Non-Operating
100 g, 11 ms,
1
/
2
sine (no damage)
20 g, 11 ms,
1
/
2
sine (no false operation)
Enclosure
P.B.T. polyester
Terminals
Tinned copper alloy
P.C. & quick connect
Note: Allow suitable slack on leads when wiring
and do not subject the terminals to
excessive force.
Max. Solder Temp.
270°C (518°F)
Max. Solder Time
5 seconds
Weight
23 grams
Packing unit in pcs
50 per plastic tray / 500 per carton box
ZETTLER
electronics GmbH
Puchheim,
D-82178
Junkersstrasse 3,
Fax +49 89 800 97 200 www.ZETTLERelectronics.com
office@ZETTLERelectronics.com
0
97
800
89
+49
Tel.
Germany
2005-12-05

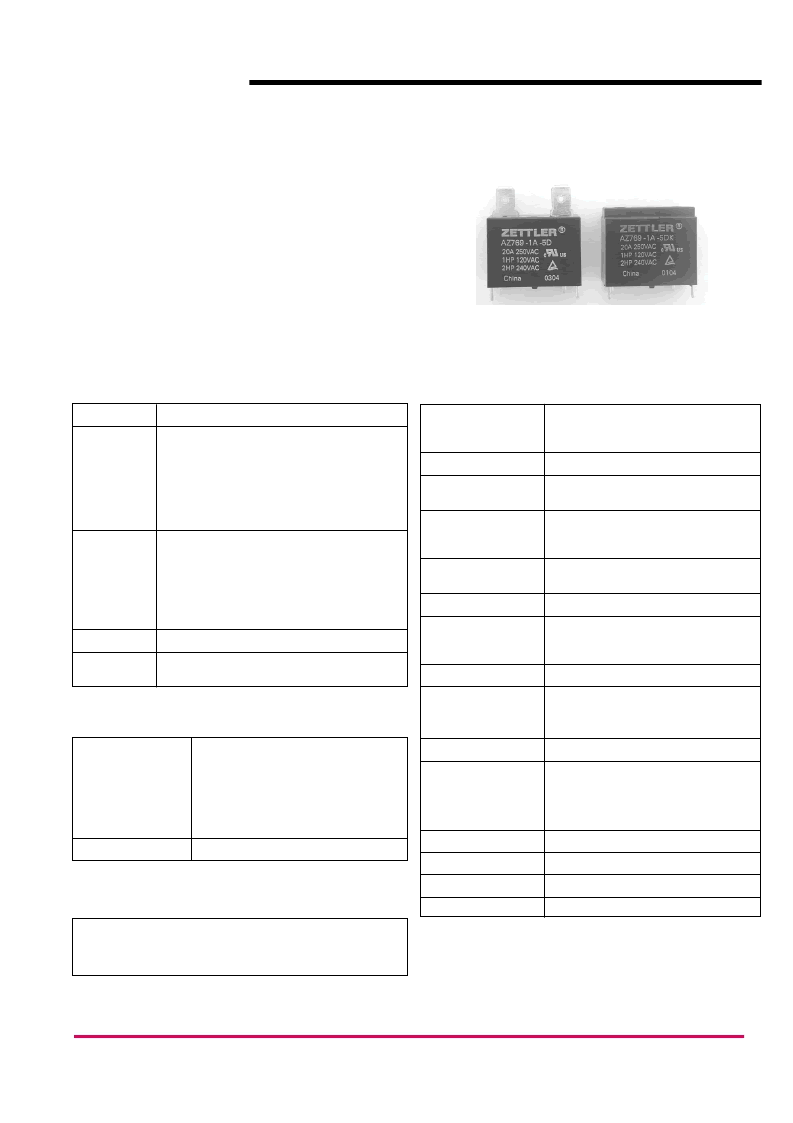

AZ769
25 AMP MINIATURE
POWER RELAY
FEATURES
Low cost
25 Amp switching
80 Amp inrush current
Quick connect and PCB terminals
Flux tight construction
UL, CUR file E44211
TüV file R50069399
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
441 mW
2.25 W at 20°C (68°F) ambient
45°C (81°F) at nominal coil voltage
Temperature
Max. 130°C (266°F)
NOT ES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
