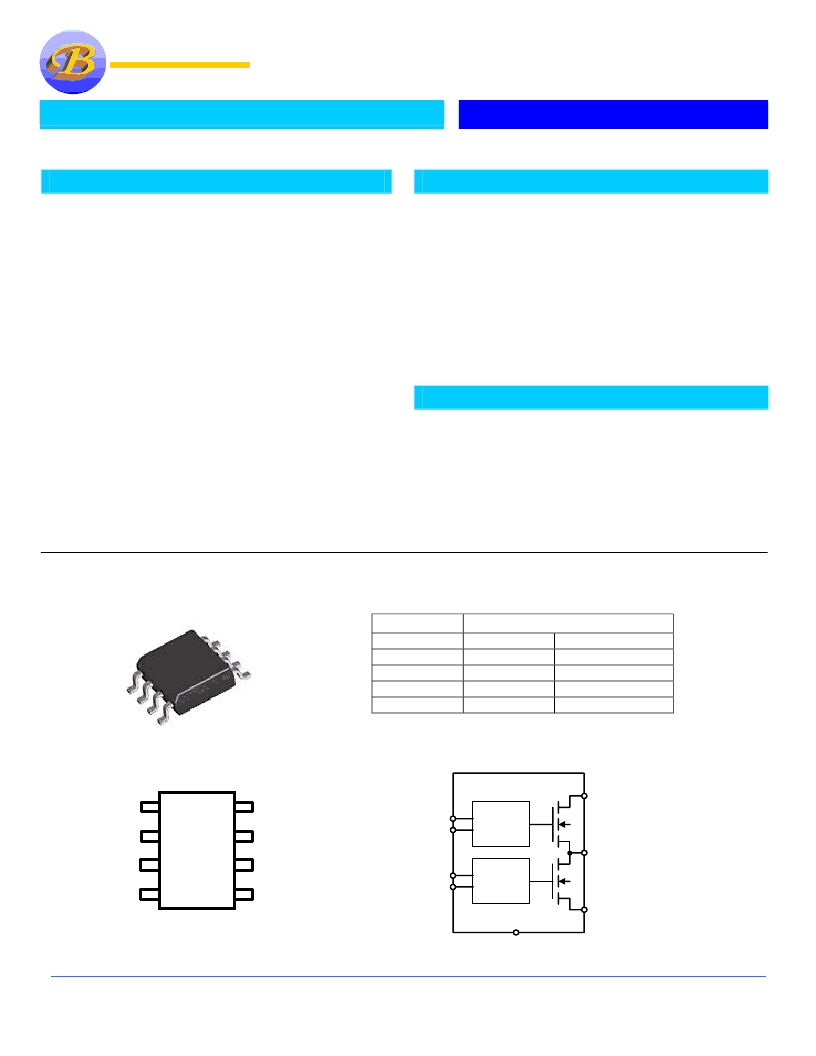

Bay Linear, Inc
2418Armstrong St., Livermore CA USA 9550 Tel: (925) 606-5950, Fax: (925) 940-9556 www.baylinear.com
Dual-Channel Power Distribution Switch
B2025/2076
Advance Information
Package Information
Ordering Information
Package
SO-8
SO-8
8 DIP
8 DIP
Enable
Active High
B2026-1M
B2076-1M
B2026-1P
B2076-1P
Active Low
B2026-2M
B2076-2M
B2026-2P
B2076-2P
Description
The Bay Linear B2026 & B2076 are a dual high-side power
switch recommended for general Propose self-powered and
bus-powdered universal serial for bus (USB) application
conforming to USB requirements. These devices include
thermal shutdown which in fault modes reduces the current
consumptions.
Additional features such as thermal shutdown to prevent
catastrophic switch failure from excessively high current
loads, under voltage lockout (UVLO) to ensure that the device
remains off unless there is a valid input voltage present. These
device it includes internal current limits. The 2026/76 offer a
soft-start circuit for limit the inrush current and Fault status
output flag for time over current and thermal shutdown status.
Bay Linear B2026/76 are available in 8-pin Dip and 8-pin
SOIC packages.
Features
2.7V to 5.5V Input
Under voltage Lockout
1
μ
A Typical off-State Supply Current
500mA Minimum Continuous Load Current
B2076 with Circuit Breaker Mode
Logic Compatible Input
Thermal Shutdown & Short Circuit protection
Pin Compatible with B2526
Replacement for MIC2026/76
Applications
USB Host and self-Powered Hubs
USB Power Management
Battery-Charger Circuits
Hot Plug-In Power Supplies
Bus-Powered Hubs
Notebooks/PDA
ACPI power distribution
Bay Linear
Inspire the Linear Power
Logic
Charge
Pump
Logic
Charge
Pump
8 Out (A)
7 IN
5 Out (B)
6 GND
EN (A) 1
FLG (A) 2
FLB (B) 3
EN (B) 4
Top View
2
1
3
4
8
7
6
5
BAY
B2026/76
FLAG (B)
EN (B)
V
OUT
(A)
GND
V
IN
FLAG (A)
EN (A)
SO-8/8-DIP
V
OUT
(B)
