SLUS501A – OCTOBER 2001
1
www.ti.com
FEATURES
Designed Specifically to Work With
Current-Limited Wall Supplies
Ideal for Low Dropout Charger Design for
Single-Cell Li-Ion Packs With Coke or
Graphite Anodes
Integrated PowerFET for 500 mA
Integrated Voltage Regulation With 0.5%
Accuracy
Battery Insertion and Removal Detection
Charge Termination by Minimum Current and
Time
Pre-Charge Conditioning With Safety Timer
Sleep Mode for Low-Power Consumption
Charge Status Output for LED or Host
Processor Interface Indicates
Charge-in-Progress, Charge Completion, and
Fault Conditions
Optional Temperature Monitoring Before and
During Charge
Small, 8-Pin Power-Pad MSOP Package

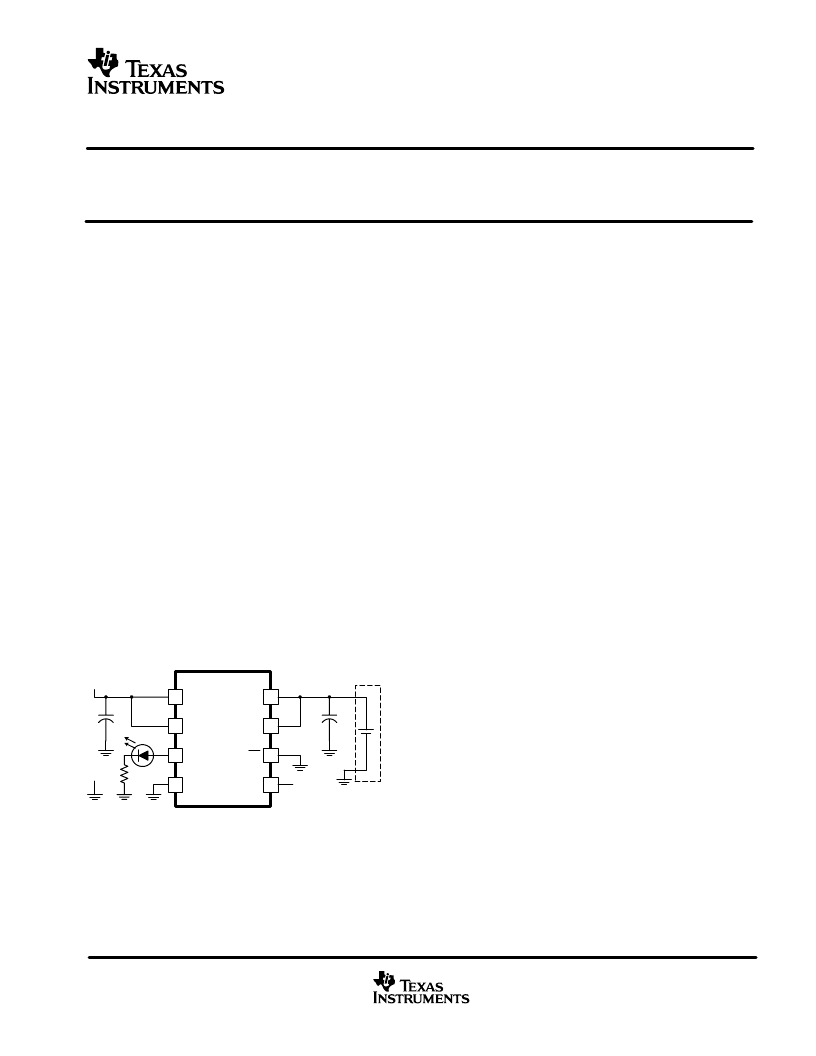

TYPICAL APPLICATION
DESCRIPTION
The bq2420x series are simple Li-Ion linear charge
management devices targeted at low-cost and space
limited charger applications. The bq2420x series offer
integrated
powerFET,
regulation, temperature monitoring, charge status, and
charge termination, in a single monolithic device.
high-accuracy
voltage
The bq2420x is designed to work with a current-limited
wall-mount transformer and therefore does not provide
any current regulation. However, these devices offer a
fixed internal current limit to prevent damage to the
internal powerFET. A time-limited pre-conditioning
phase is provided to condition deeply discharged cells.
Once the battery reaches the charge voltage, the high
accuracy voltage regulation loop takes over and
completes the charge cycle. Charge is terminated
based on minimum current. An internal charge timer
provides a backup safety for charge termination.
Other standard features include an automatic sleep
mode activated when V
CC
falls below the battery
voltage and a recharge feature activated when the
battery voltage falls below the V
RCH
threshold.
In addition to the standard features, the core product
provides two additional enhancements: temperature
monitoring and status display. The temperature-sense
circuit continuously measures battery temperature
using an external thermistor and inhibits charge until the
battery temperature is within the user–defined
thresholds. The STAT pin indicates three conditions of
operation of the charger. These conditions are
charge-
in-progress
,
charge complete
, and
fault
. This output
can be used to drive an LED or an interface to a
microcontroller.
P
!"#$%&" '" '(# ) *#"+,'&) &-( !"#$%&.( "#
+()/ *-%)( "! +(.(0"*$( &1 -%#%'&(#)&'
)*('!'%&" ) %#( +()/ /"%0)1 (2%) )&#,$( &) #()(#.() &-( #/-& &"
'-% /( "# +)'" & ,( &-()( *#"+,'&) 3&-",& "&'(1
+%&% % + "&-(#
Copyright
2001, Texas Instruments Incorporated
1
4
2
8
IN
VCC
VSS
OUT
7
BAT
6
CE
5
N/C
C1
bq24202DGN
3 STAT
DC+
DC–
R1
C1
+
BATTERY PACK
