INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
Cambridge Products, P.O. Box 1732, Waseca, MN 56093-0832 1-800-243.8814 Fax: 507-833-6287 www.cambridgeproducts.com

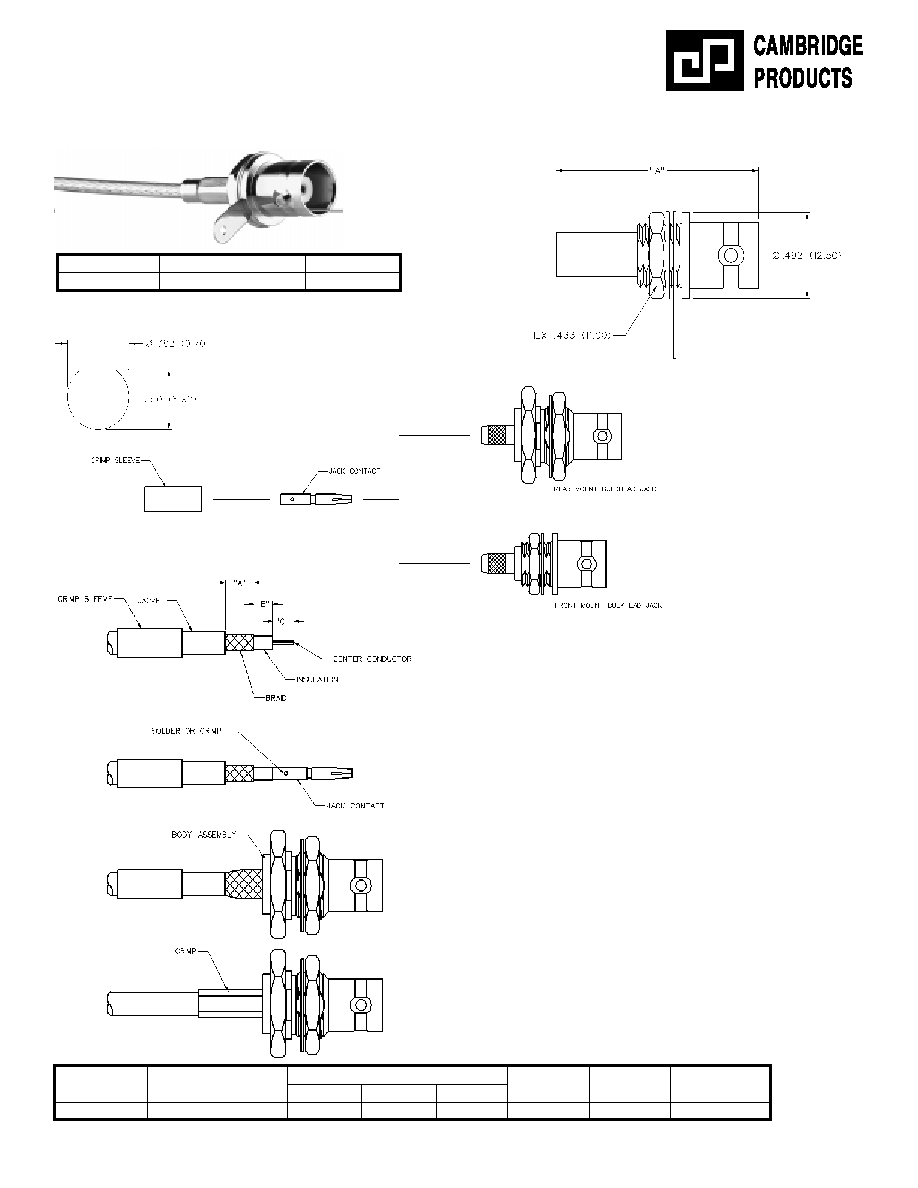

BNC 50 Ohm Straight Crimp Type,
Front Mount Bulkhead Jack -
Lug Terminal, Solder or Crimp Contact - 3 Piece
1. Identify connector parts. (3 piece parts)
2. Strip cable to dimensions shown. Do not nick braid or
center conductor. Tin center conductor if contact will be
solder attached. Do not tin center conductor if contact is
to be crimp attached. A wire stripper of correct size is
recommended for this step. Slide heat shrink (as appli-
cable) and crimp sleeve onto jacket of cable.
3. Assemble contact onto cable as shown.
Solder Attachment: Solder contact to center conductor
through hole using a minimum amount of solder for a good
joint.
Crimp Attachment (where applicable): Crimp contact
to center conductor using recommended crimp hex.
4. Flare braid and slide body assembly over contact and
under braid. Then seat body assembly firmly onto con-
tact. The cable may have to be held in a clamping fixture.
Arrange braid uniformly around crimp stem. Slide crimp
sleeve forward and crimp using recommended crimp hex.
Slide heat shrink forward and shrink (as applicable).
Strip Dimensions
Crimp
Contact
Recommended
Part Number
Cable
“A”
“B”
“C”
Sleeve Hex
Crimp Hex
Crimp Tool
CP-89-19BM2
RG-174, 316
.315 (8.00)
.157 (4.00)
.118 (3.00)
.178 (4.52)
.066 (1.69)
CP-DCC-0908
*Denotes tapered ferrule as shown in photo.
PART NUMBER
CABLE TYPE
“A”
CP-89-19BM2*
RG-174, 188, 316
1.200 (30.50)
