INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
Cambridge Products, P.O. Box 1732, Waseca, MN 56093-0832 1-800-243-8814 Fax: 507-833-6287 www.cambridgeproducts.com

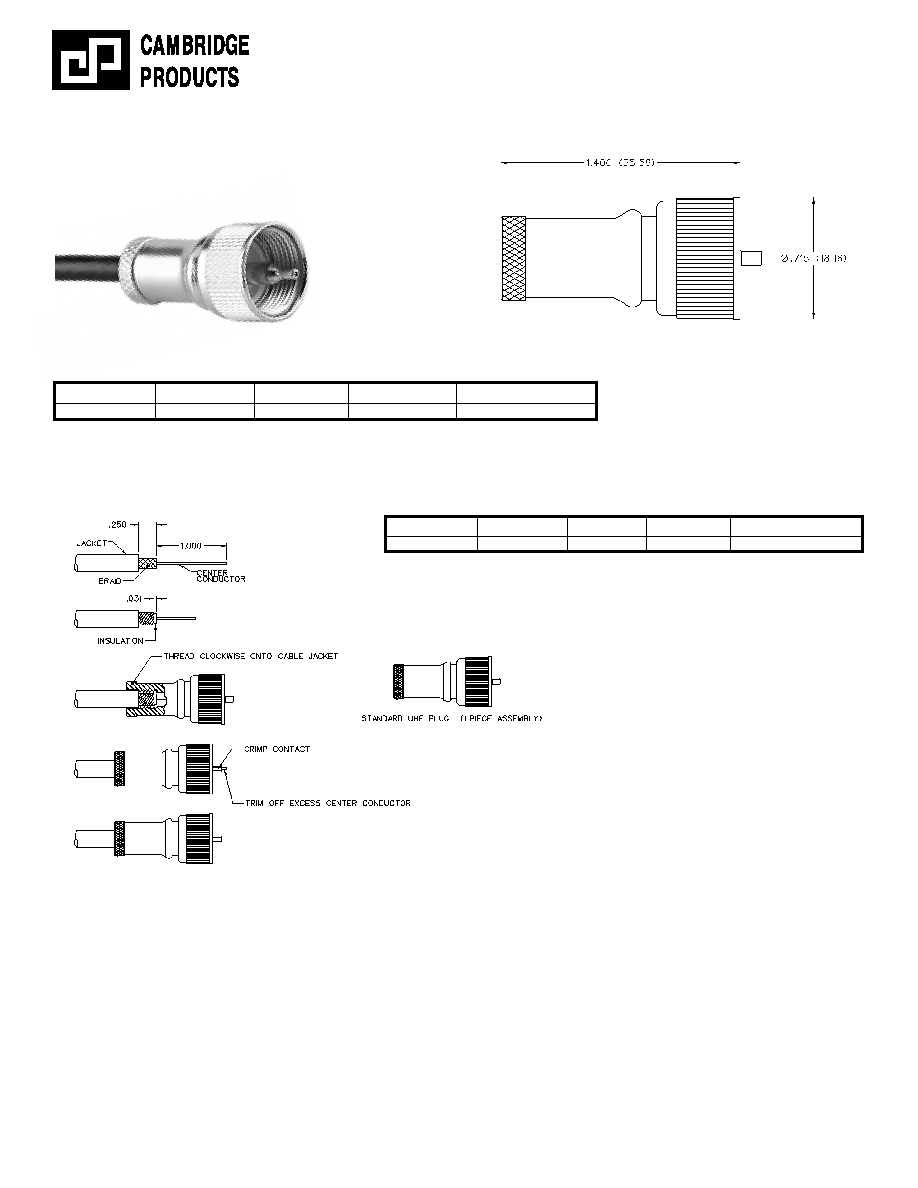

UHF Straight Twist-On Plug -
1 Piece
PART NUMBER
CABLE TYPE
WIRE GAUGE
WIRE DECIMAL
JACKET O.D.
CPFI-259-2
RG-59
22
.0253 (0.64)
.220 (5.59)-.250 (6.35)
1. Identify connector parts. (1 piece)
2. Trim cable as shown. Taking care not to nick the center conductor or outer braid.
3. Use the fingernail to rotate the outer braids clockwise such that 1/32" of the insulation is bared. Then in the same direction rub the stray
braids flat. (Stray or loose braids can cause shorts.)
4. Gently insert the center conductor down the back end of the connector.
5. Firmly push the cable home (a slight clockwise twist may help with insertion). Then screw the connector on the cable in a clockwise
direction until it is snuggly attached to the jacket.
6.Crimp the contact as shown and trim away any excess center conductor extending past the contact.
CABLE ASSEMBLY CAUTIONS: Series are designed for solid center conductor wire. RG-58 cable will need the center conductor tin
dipped (ONLY if it is not a solid center conductor). This is necessary to provide extra support for step 5.
Note: Instructions for Plugs only. For twist-on jacks, follow BNC twist-on instructions on page 69.
Part Number
Cable
Wire Gauge
Wire Decimal
Jacket O.D.
CPFI-259-2
RG-59, 62
22
.0253 (0.64)
.220 (5.59)-.250 (6.35)
