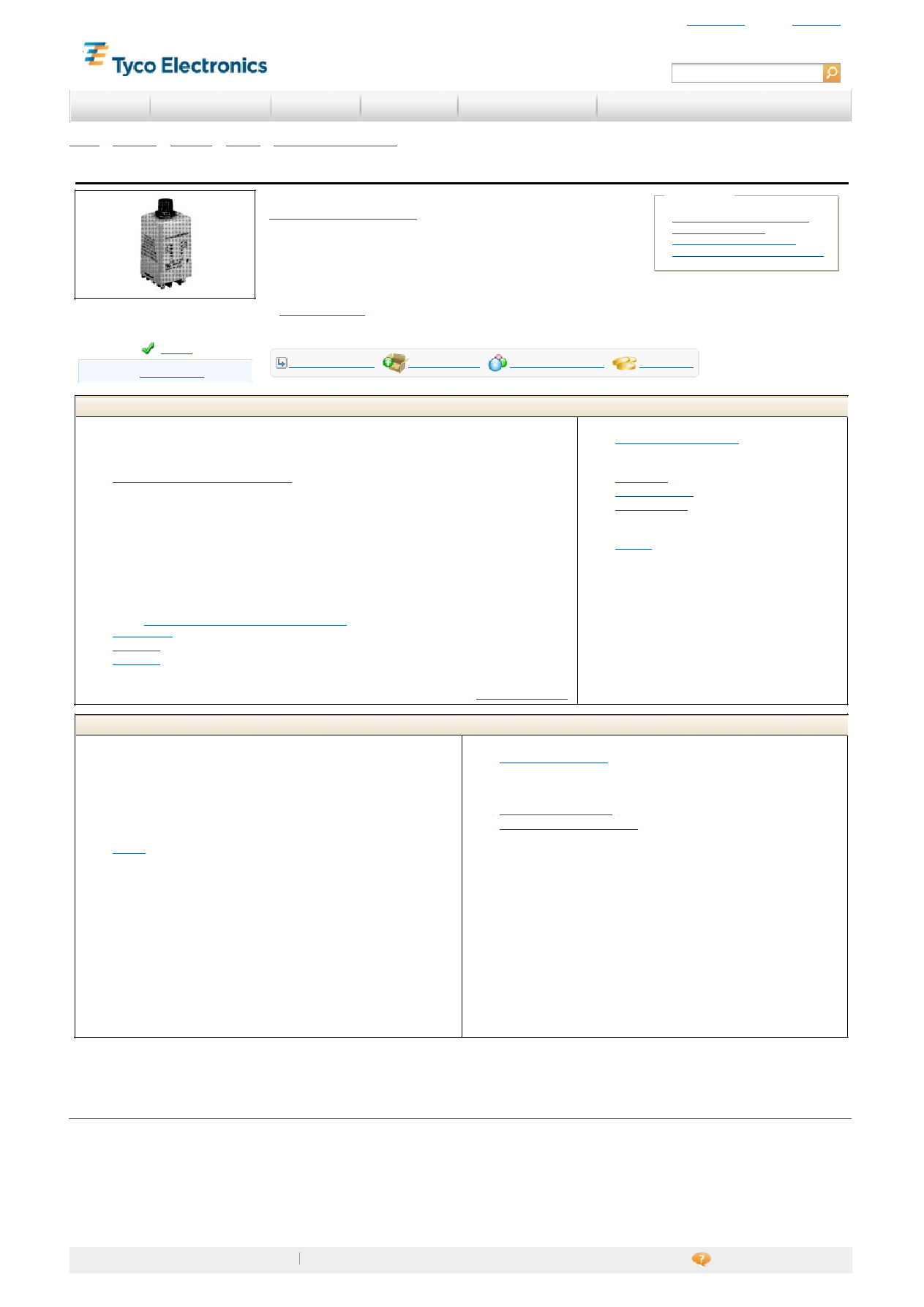

CUF-41-70030 Product Details
CUF-41-70030
(6-1393138-0)
T E I nternal N umber: 6 -1 3 9 3 1 3 8 -0
Time Delay Relays
Product Highlights:
l
CU Series
l
Input Voltage = 120 VAC
l
Contact Arrangement = 2 Form C, DPDT, 2 C/O
l
Contact Rating = 10A @ 30 VDC or 277 VAC
l
Mounting Options = Socket
Quick Links
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
CL - CU C ompact Time Delay Relay (PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files: (CAD Format & Compression Information)
l
2D Drawing (DXF, Version 0303)
l
3D Model (IGES, Version 0303)
l
3D Model (STEP, Version 0303)
Additional Information:
l
Additional Product Images:
l
l
l
Related Products:
l
Product Features (Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = 4.75 [0.187] Quick Disconnect
Electrical Characteristics:
l
Input Voltage (VAC) = 120
l
Contact Rating = 10A @ 30 VDC or 277 VAC
Body Related Features:
l
Series = CU
Contact Related Features:
l
Mounting Options = Socket
l
Mode of Operation = Delay on Operate
l
Delay Time = 1 second to 30 seconds
l
Type of Control = External Resister
l
Repeatability, Max. = ± 3%
l
Approved Standards = CSA Certified, UL Recognized
l
Contact Base Material = Silver Cadmium Oxide
l
Approx. Dimensions (L x W x H) (mm [in]) = 38.90 x 35.70 x 48.40
[1.532 x 1.406 x 1.907]
l
Enclosure = Yellow Plastic Case
Configuration Related Features:
l
Contact Arrangement = 2 Form C, DPDT, 2 C/O
l
Multiple Timing Ranges = Without
Industry Standards:
l
RoHS/ELV Compliance = Not ELV/RoHS compliant
l
Lead Free Solder Processes = Not relevant for lead free process
Conditions for Usage:
l
Temperature Range (?C) = -10 – +55
Other:
l
Brand = Potter & Brumfield
